Product Description

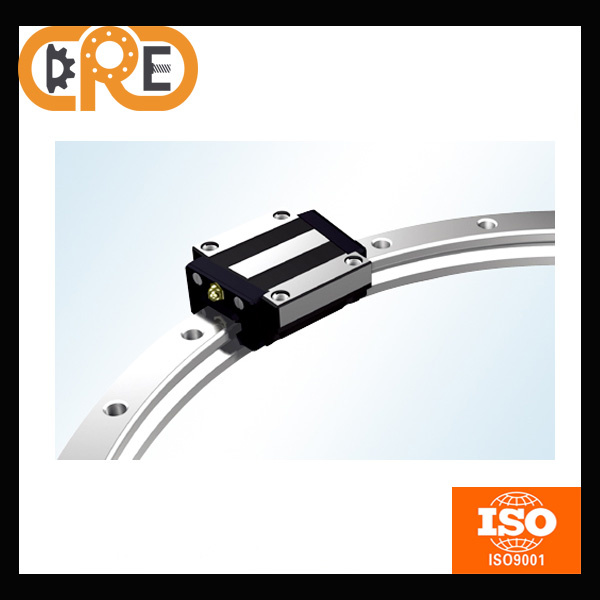

IntroductionGGY arc linear motion guide is derived from GGB four direction equal load linear motion guide. Under the premise of inheriting the advantages of GGB type, it can realize circular or arc motion with any diameters, and overcome the size limitations of bearing or rolling supporting equipment. Theoretically, for GGY arc motion guide, the larger the diameter is, the more convenient for design, manufacture, installation and maintenance etc. In addition, since the unique structure design of GGY, it is possible for heavy-load and no clearance.
Application
Large-scale transposition, controlling device, medical machine, stage equipment, vertical lathe

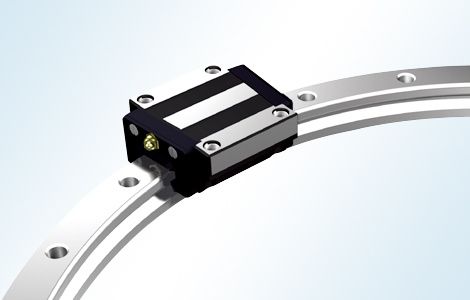

Linear Guideway Show
<Specification
Dimension | GZV1 | GZV2 | GZV3 | GZV4 | GZV6 | GZV9 | GZV12 | GZV15 |
|
| A | 8.5 | 12 | 18 | 22 | 31 | 44 | 58 | 71 |
| H | 4 | 6 | 8 | 11 | 15 | 22 | 28 | 36 |
| W | 3.8 | 5.5 | 8.1 | 10 | 14.2 | 20.2 | 27 | 33 |
| M | M2 | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
| D | - | - | 6 | 7.5 | 9.5 | 10.5 | 13.5 | 16.5 |
| h | - | - | 3.1 | 4.1 | 5.2 | 6.2 | 8.2 | 10.2 |
| G | 1.8 | 2.5 | 3.5 | 4.5 | 6 | 9 | 12 | 14 |
| F | 10 | 15 | 25 | 40 | 50 | 50 | 100 | 100 |
| T | 2 | 2 | 3 | 3 | 3 | 4 | 5 | 5 |
| Max rail LMAX | 80 | 180 | 300 | 500 | 500 | 1400 | 1400 | 1400 |
Weight of
one Rail per
meter (kg) | 0.1 | 0.23 | 0.45 | 0.75 | 1.47 | 3.07 | 5.32 | S.30 |
|
