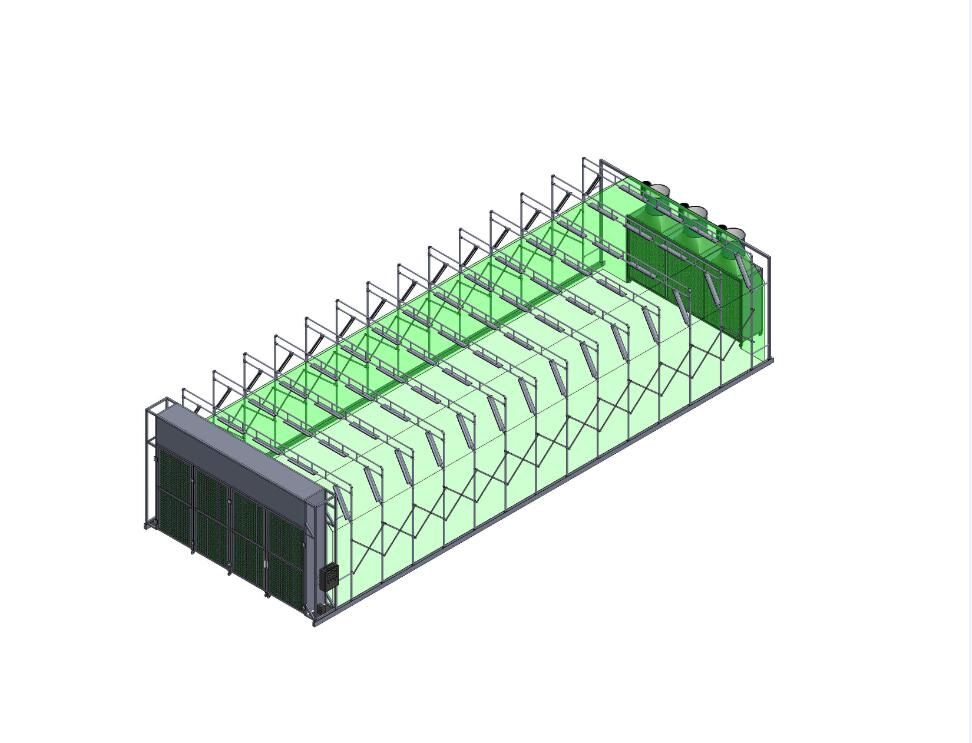

High Efficiency Retractable Spray Paint Booth
Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance | Custom-designed Retractable Paint Booth |
| Case one: Retractable type Paint Booth(20×7.5×4 M LxWxH) |
| Design Standard | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Inside size | 20000×7500×4000mm (L×W×H) |
| Outside size | 21430×7700×4600mm (L×W×H) |
| Cabin system | |
| Cabin structure | Skeleton constitution, Retractable |
| Automatic drive units | Model: EA CL610/1010; Brand: France |
| Sealing materials | Transparent PVC soft curtain, thickness: 1mm |
| Main door | |
| Door size | 4800X3500mm (W×H) |
| Door description | Square tube frame |
| Filtration System | |
| Pre-filters | G2 Grade, Fiber glass paint-stop filter |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on |
| Light system | |
| Quantity and power | 60 sets of lighting box , each set with 2×40W,total 2400W |
| Lighting arrangement | Three groups on ceiling, on both sides of one group |
| Lighting description | Purification lights |
| Total Brightness | >300Lux |
| Ventilation system | |
| Outlet fan form | Axial fan, model is T40No.6C/2.2kw-4(3 sets) |
| Outlet fan power& motor description | 3x2.2KW,1450 rpm, 400 V, 50 Hz |
| Outlet fan parameter | 267pa,15700 m³//h |
| Total Air volume | 41700 m³//h |
Air speed
( under zero-load) | +/- 0.43m/ in empty booth |
| Noise level | <86 dB |
| Pipeline configuration | Pipe diameter: φ=610 |
| Straight pipes | 9 pcs |
| Reducer | 3 pcs |
| Control system | |
| Performance standards | Direct starting |
| Function | Fan switch, lighting switch, emergency stop switch, failure indication, booth retractable control |
| Special description | |
| Wind resistance level of booth | < 7 level, Both sides of booth need to pull the fixed |
Optional
Australian and New Zealand standard AS-NZS 4114.1-2003 | Filter plug and alarm pressure transmitter, Differential Pressure Gauge at the front end of the fan, Damper |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
