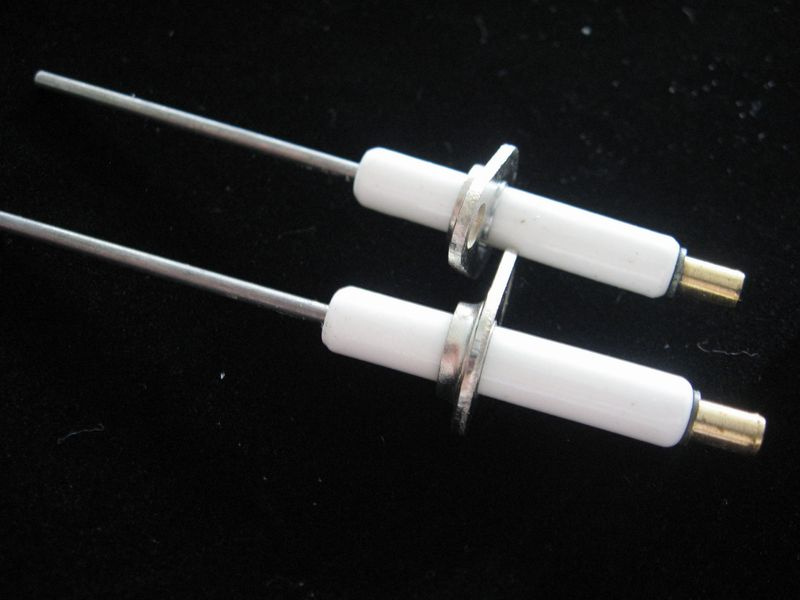

High Alumina Ceramic Spark Electrode for gas cooker
Material: 95% Al2O3 Color: White
5% alumina ceramic as material, electrode use the Ni80Cr20, 0Cr21Al6, KANTHAL D,KANTHAL AMP, YSS-SYTT ETC, it can resist temperature from 1100-1500C.
Features:
1.Anti-heat,corrosion resistance, anti-high voltage,stable electrical property,and high insulation functions.
2.Output voltage: Min. 16 ~25kv
3.Life time (using life)20,000 times.
Specifications:
Performance For Alumina Ceramic |
Item | | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 |
Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
Water absorption | % | 0 | 0 | 0 |
Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
Hardness Vickers | Gpa | 12.2 | 13.5 | 15.6 |
Elastic modulus | Gpa | 280 | 320 | 370 |
Poisson's ratio | - | 0.22 | 0.23 | 0.23 |
Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
Thermal conductivity | w/(m.k) | 16 | 24 | 32 |
Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 |
Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
Dielectric loss angle | *10-4 | 15 | 5 | 1 |
Dielectric strength | *106V/m | 12 | 15 | 15 |
Application:
We can offer various series of ignition needles.
The series of ignition needle for push-in type cooker units
The series of ignition needle for fuel gas burner
The series of ignition needle for ordinary cooker unit
The series of ignition needle for gas barbecue oven
The series of ignition needle for fuel gas water heater
Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
COMPANY DETAILS:
HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.
Package:
Carton box,then wooden box to avoid the broken.
Payment term :
T.T OR Western Union OR Credit Card
Delviery time:
about 7 days for the stock sample;
about 20 days for the bulk quantity.
FAQ
1.Where is your main market?
We have been exported to USA, Korea, UK, France, Russia, Germany, India, Spain, Brazil etc, so far, there is about 151 countries we have been exported, we also get good reputation from our customers.
2. What is your payment term?
We mainly accept T/T, West Union, Credit card and L/C.
Paypal will be available in the near future.
3. For alumina ceramic, what about the forming method?
Drying pressing
Isostatic pressing
Hot pressing casting
4.What about the package?
We pack with plastic bubble paper, carton box, then safe wooden box outside, we can control the breakage less than 1%.
