Heavyduty Auto Alternator (8LHP2170V 12V 140A For MEDIUM-DUTY TRUCKS)

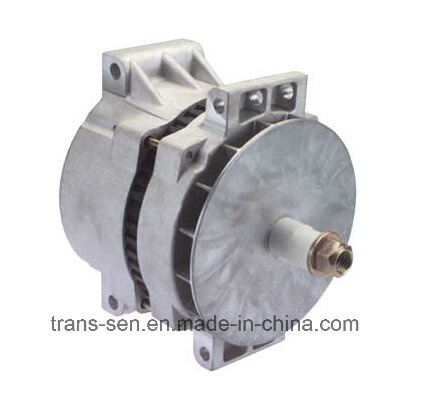

Name: Heavyduty Auto Alternator (8LHP2170V 12V 140A For MEDIUM-DUTY TRUCKS)
Brand: ibuyautoparts.com
SKU: 753195505
Availability: InStock
Rating: 4.5 (131 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TA8410MO 8LHP2170VH 110-555P GL-576
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Parameter:	12V 140A Cw IR Ef
Structure:	Integral Alternator
Current Level:	9(',≥90A)
Brushless Alternator Type:	Permanent Magnet Type
Voltage Adjuster Type:	Electronical
Voltage:	12V
Bonding Type Of Magnetic Field Winding:	Inner Bonding
Head Cover Position:	Front
Type:	Alternator
Brand:	Motorola/ Prestolite

Product Description

COMPANY NO	TA8410MO
LESTER	8410
PIC	210-325
BARSANCO	160-8410
BARSANCO	170-12491
BBB HD	8410
CARGO	113766
DIXIE	A-9384
DIXIE NEW	109-16128
EMS	8410N
EXCEL	8362
FORD	4C4O-10300-PA
FORD	4C4Z-10346-PA
INTL HARVESTER	3582185C91
MINNPAR	47-1579
MOTORCRAFT	GL-576
MOTOROLA	8LHP2170V
MOTOROLA	8LHP2170VH
MPA HD	X68410
MPA NEW HD	X68410HDN
NAPA HD	68410
NAPA NEW HD	68410HDN
NSA	ALT-0051
PRESTOLITE	110-555P
WAI	1-2532-00MO
WILSON	90-05-9220
WILSON	90-05-9254
WILSON	90-05-9294
WILSON HD	90-05-9254

Detailed:

Series 8LHP

Part No 8LHP2170V

Sales No 110-555P

Reman No 110-555PRM

Comments PAD MOUNT ALTERNATOR, FIX VOLTAGE 14.2V

Volts 12

Amps 140

Mount PAD

Rotation CLOCKwISE

Housing Coating RAW

UL Approved NO

Mounting Bolt Size F .417-.427 R .489-.479

Positive Stud Size 5/16-24 NF

Negative Stud Size 1/4-28 NF

Regulator Sense Local Sense

Trio NO

Regulator Excite Self Excite

SmartChek Regulator NO

Lamp Driver NO

Regulator Location Integral

Regulator Model 8RG2112

Adjustable NO

Batteryless NO

Rectifier Location INTERNAL

Shaft Diameter .8740-.8745

APPLICATION:
MEDIUM-DUTY TRUCKS
ADDL INFO: 8RG2112 REGULATOR
ADDL INFO: QUAD-MOUNT
ADDL INFO: SELF-EXCITING
ADDL INFO: INSULATED GROUND

Trans-sen Industrial (Shanghai) Co., Ltd is a professional manufacturer and exporter specializing in starters and alternators. Our products are widely used in cars, trucks, bus, forklifts and heavy equipment for American, European, Japanese and Korean automobiles.

We can supply BOSCH/ VALEO/ DENSO /MITSUBISHI/ Ford/ MITSUBA/ HITACHI/ DELCO/ LUCAS series, which fit for auto car, truck, agriculture machine, heavy duty, pickup, forklift and so on.

Package: Bulk or customer's package

Quality: Some of our goods would be supplied to OE, 1year quality guarantee

Every one should be tested by DV TEST MACHINE.
