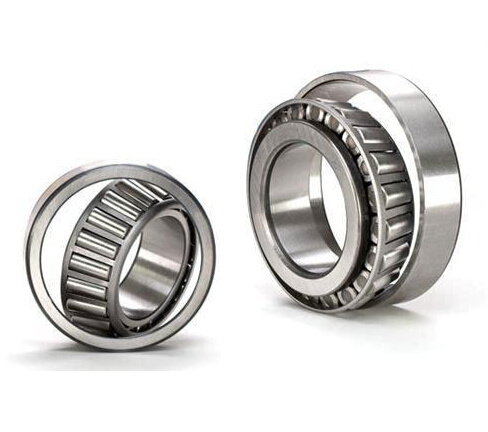

Heavy Truck Roller Bearing 30309 31309 32309

Name: Heavy Truck Roller Bearing 30309 31309 32309
Brand: ibuyautoparts.com
SKU: 745484345
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

) Good quality, competitive prices

2) Wide application and attractive appearance

3) Widely used in general machinery, automobiles, agricultural machinery and so on.

4)The range of inner diameter size is below 1600mm.

30200 series, 30300 series, 32000 series, 32200 series, 32300 series,

Taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20

Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,

Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242

Bearing Type	d(mm)	D(mm)	T(mm)	Bearing Type	d(mm)	D(mm)	T(mm)
800308	82	138	110	808918	88	138	30/60
801400A	80	165	57	803194A	78	138	90
805015	70	165	57	805092	77	130	91
801794B	65	150	57	BTH0068A	105	160	140
805208	100	148	67.5	567549	100	157	42
805958	70	124.7	61	528983	70	130	58
572813A	70	150	64

new model	old model	inside diameter	outside diameter	thickness	Cr	Cor	Grease lubrication speed	Oil lubrication speed	Weight
new model	old model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
32908X2	2007908	40	62	14	21.2	28.2	5600	7000	0.14
32908	2007908E	40	62	15	31.5	46	5600	7000	0.155
32008X2	-	40	68	18	39.8	55.2	5300	6700	0.27
32008	2007108E	40	68	19	51.8	71	5300	6700	0.267
33008	3007108E	40	68	22	60.2	79.5	5300	6700	0.306
33108	3007708E	40	75	26	84.8	110	5000	6300	0.496
30208	7208E	40	80	18	63	74	5000	6300	0.422
32208	7508E	40	80	23	77.8	97.2	5000	6300	0.532
33208	3007208E	40	80	32	105	135	5000	6300	0.715
30308	7308E	40	90	23	90.8	108	4500	5600	0.747
31308	27308E	40	90	23	81.5	96.5	4500	5600	0.727
32308	7608E	40	90	33	115	148	4500	5600	1.04
32909X2	-	45	68	14	22.2	32.8	5300	6700	_
32909	7007909E	45	68	15	32	48.5	5300	6700	0.18
32009X2	2007109X	45	75	19	44.5	62.5	5000	6300	0.32
32009	2007109E	45	75	20	58.5	81.5	5000	6300	0.337
33009	3007109E	45	75	24	72.5	100	5000	6300	0.398
33109	3007709E	45	80	26	87	118	4500	5600	0.535
30209	7209E	45	85	19	67.8	83.5	4500	5600	0.474
32209	7509E	45	85	23	80.8	105	4500	5600	0.573
33209	3007209E	45	85	32	110	145	4500	5600	0.771
30309	7309E	45	100	25	108	130	4000	5000	0.984
31309	27309E	45	100	25	95.5	115	4000	5000	0.944
32309	7609E	45	100	36	145	188	4000	5000	1.4
32910X2	-	50	72	14	22.2	32.8	5000	6300	0.7
32910	2007910E	50	72	15	36.8	56	5000	6300	0.181
32010X2	2007110X	50	80	19	45.8	66.2	4500	5600	0.31
32010	2007110E	50	80	20	61	89	4500	5600	0.366
33010	3007110E	50	80	24	76.8	110	4500	5600	0.433
33110	3007710E	50	85	26	89.2	125	4300	5300	0.572
30210	7210E	50	90	20	73.2	92	4300	5300	0.529
32210	7510E	50	90	23	82.8	108	4300	5300	0.626
33210	3007210E	50	90	32	112	155	4300	5300	0.825
30310	7310E	50	110	27	130	158	3800	4800	1.28
31310	27310E	50	110	27	108	128	3800	4800	1.21
32310	7610E	50	110	42.5	178	235	3800	4800	1.89

Prod Model:	30309 31309 32309
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	Stock
Type:	Wheel Hub Bearing
Material:	Chrome Steel
Tolerance:	P4
Certification:	ISO9001
Clearance:	C3
ABS:	Without ABS
Brand:	Ikc SKF NSK NTN Koyo Timken

IKC MACHINERY Bearing Co., Ltd. One of the largest bearings' Exporters, from China. Sales size diameter in the 5mm-1800mm, SKF Bearing, NSK Bearing, NTN Bearing, NACHI Bearing, IKO Bearing, THK Bearing, TIMKEN bearing. TWB bearing, ZWZ bearing, HRB bearing, FYH bearing, EZO bearing, NMB bearing, GPZ bearing,

Taper roller bearings

Deep groove ball bearings

Pillow block bearings

Spherical roller bearings

Spherical Roller Thrust Bearing

Self-aligning ball bearings

Agricultural bearings

Thrust ball bearings

Cylindrical roller bearings

Angular contact ball bearings

Needle roller bearings

Wheel hub bearings

Conveyor bearing

Spherical plain bearing

Plummer Block

Automotive Clutch Release Bearing

IKC Bearing Co., Ltd was founded in 1998, the registered capital of 2.53 million US dollars. IKC is a high-tech enterprise which is specialized in researching and manufacturing high common bearings. Since 1986, IKC has accumulated 20 years' Bearing innovation and production. During the 20 years, IKC persist with "quality first, innovation win, service first" as purpose; "The pursuit of perfect quality, create first-class brand" as management policy, promoting the brand strategy, continuously improving product quality and brand connotation. IKC always do as customer requirement, insisting on creating excellent products and providing first-calss service for our customers.
