| Prod Model: |
12R22.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tyre Size: |
12r22.5 |
| Tubetyre: |
Tubeless |
| Type: |
22.5inch |
| Pattern: |
Gt801 |
| Ply Rating: |
18pr |
| Quantity/40hc: |
250PCS |
| Diameter: |
21''- 24'' |
| Tire Design: |
Radial Tyre |
| Certification: |
Gcc |
| Kind: |
Truck Tyre |
Product Description

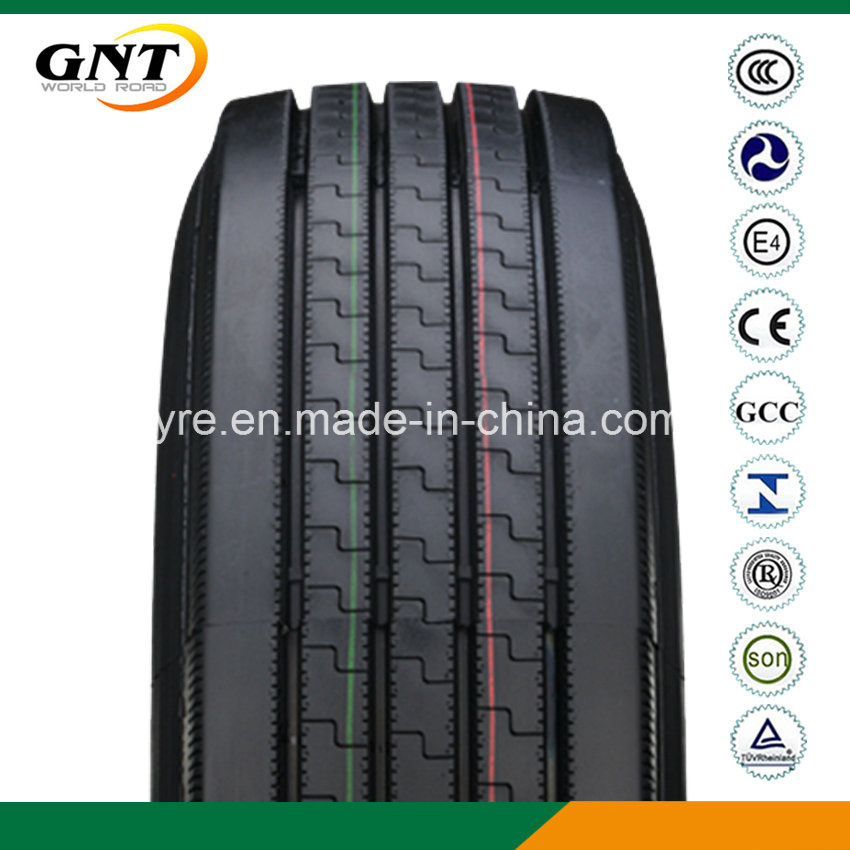

Heavy Duty Truck Tubeless Radial Truck Tyre 12r22.5
2)Pattern: GT801/GT757/GT767/GT777/GT727
3)We serve only ensured tires, we make sure that every one of the tyre has the property insurance.
4) Certificate: ISO9001, CCC,GCC,ECE,DOT etc
5) Markets : Europe & Middle -- EasT & Africa & Asia....ect markets .
6) Delivery time : within 7 days
7) Payment terms : TT , L/C
8) Guarantee 120,000~150,000 km
Technical parameter of radial truck tire 12R22.5 :
| SIZE | PLY | TYPE | SPEED RATE | STD RIM | Max Load | Relative Pressure | Load Index | Inflated Dimensions(mm) | QTY/ 40'HQ |
| KGS | KPA | S.W. | O.D. |
| 12R22.5 | 18 | TL | M | 8.25 | 3550/3250 | 930 | 152/149 | 320 | 1124 | 245 |
| SIZE | PLY | TYPE | SPEED RATE | STD RIM | Max Load | Relative Pressure | Load Index | Inflated Dimensions(mm) | QTY/ 40'HQ |
| KGS | KPA | S.W. | O.D. |
| 11R22.5 | 16 | TL | M | 8.25 | 3000/2725 | 830 | 146/143 | 279 | 1050 | 270 |
| 12R22.5 | 18 | TL | M | 9.0 | 3550/3250 | 930 | 152/149 | 300 | 1084 | 245 |
| 295/80R22.5 | 18 | TL | M | 9.0 | 3750/3555 | 850 | 146/143 | 298 | 1044 | 250 |
| 315/80R22.5 | 20 | TL | M | 9.0 | 4000/3350 | 850 | 156/150 | 312 | 1076 | 224 |
| SIZE | PLY | TYPE | SPEED RATE | STD RIM | Max Load | Relative Pressure | Load Index | Inflated Dimensions(mm) | QTY/ 40'HQ |
| KGS | KPA | S.W. | O.D. |
| 825R16 | 16 | TT | K | 6.5 | 1800/1600 | 770 | 128/124 | 232 | 858 | 520 |
| 900R20 | 16 | TT | K | 7.0 | 2800/2650 | 900 | 144/142 | 259 | 1019 | 320 |
| 1000R20 | 18 | TT | L | 7.5 | 3250/3000 | 930 | 149/146 | 278 | 1054 | 270 |
| 1100R20 | 18 | TT | L | 8.0 | 3550/3250 | 930 | 152/149 | 293 | 1085 | 245 |
| 1200R20 | 20 | TT | K | 8.5 | 4000/3650 | 900 | 154/151 | 315 | 1125 | 225 |
| 1200R24 | 20 | TT | K | 8.5 | 4500/4125 | 900 | 158/155 | 315 | 1226 | 190 |
| 315/80R22.5 | 20 | TL | M | 9.00 | 4000/3350 | 850 | 154/150 | 312 | 1076 | 224 |
| 13R22.5 | 18 | TL | L | 9.75 | 3750/3450 | 830 | 154/151 | 320 | 1124 | 230 |

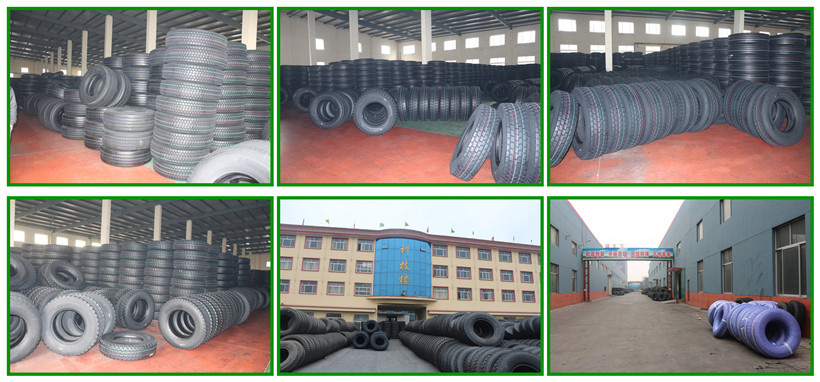

We carries large quantities productions and stocks :

Any inquiry will be appreciated. Welcome to contact with me.

Weifang gunaite Rubber Co., Ltd. Was founded in 1980, is located in the Chinese rubber tire manufacturing industry of Shandong Province, Weifang City, the existing staff of five hundred people, was on the verge of open city of Qingdao, Yantai, Dalian, Rizhao Port, geographical location and environment, convenient traffic, is a collection of R & D and rubber products manufacturing, sales of high-quality strong, durable, and suitable for special purposes, tires and other products and services in one of the professional tire company.
The company mainly produces various truck tires, light truck tires, specifications and varieties of agricultural tires, OTR tires, industrial tires, special tires, product sales all over the country and exported to many countries and regional Corporation in Europe and the United States has advanced production equipment and the ability to meet international requirements, fully equipped Development Laboratory, strict implementation of ISO 9001 quality system and strict implementation of RoHS directive, the overall operation of the enterprise resource planning computer management system, and the application of Six Sigma management mode to protect the product defect rate of less than three point four parts per million, all products are insured by the People's Insurance Company of China, so as to guarantee customers a comprehensive, the rights and interests of consumers.
We have a high-quality product manager and customer manager team, customers can become a close advisor. We based on the fundamental, committed to the development of the industry. We implement provide guarantee product concept, let us win the customers at home and abroad.
We expect and welcome friends from all walks of life together with cooperation, create a better future!
