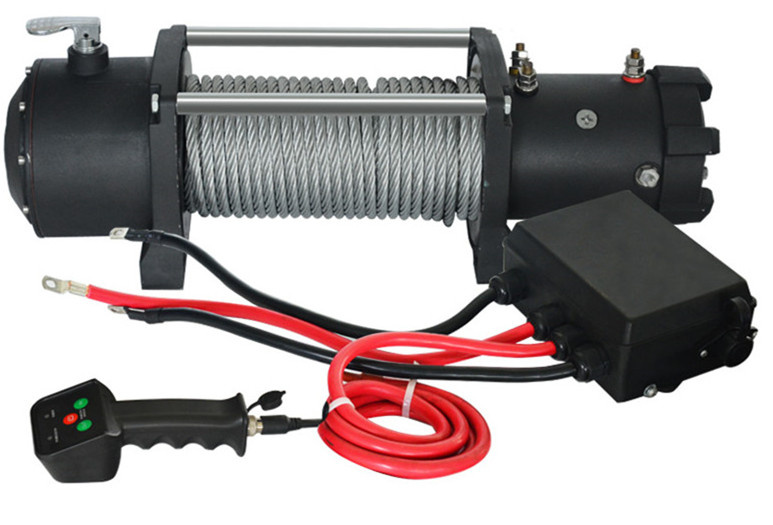

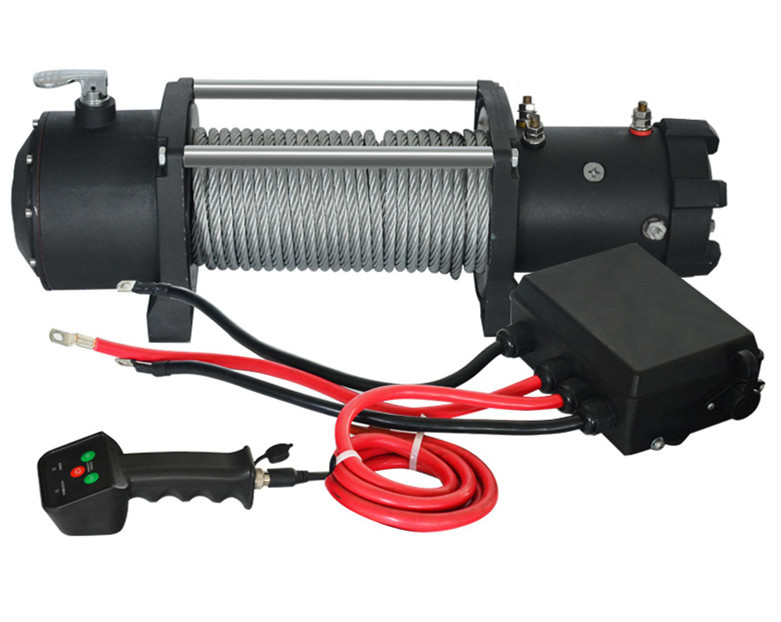

Heavy Duty off -Road Electric Winch with 12500 Lb Pulling

Name: Heavy Duty off -Road Electric Winch with 12500 Lb Pulling
Brand: ibuyautoparts.com
SKU: 729491982
Availability: InStock
Rating: 4.5 (148 reviews)

Price:	US $ 162-168/Piece
Min Order:	24/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Classic design with heavy duty 12,500 lb winch . Powerful fast speed series would motor sealed ,mechanical design brake . sealed completed gear box with all steel gears , 265.2:1 gear ratio . steel cable and 4-way roller included . All -in-on remote control with the disassembled wire , two ends with airplane terminals ,waterproof .Reliable solenoid (450 A ,IP67 ) ,Separated control box .

OEM service is acceptable all the time !

Features and Specifications :
PN: XM-TE907
Performance: 12 V or 24 V DC
Single line rated pull:   12,500lbs ( 5663kg)
Motor: 6.65hp/5.0kw series -wound
Braking action: Automatic locking with motor
Clutch: Flip up and down Sliding ring gear
Gear train : 3 -stage planetary
Gear ratio: 265.2: 1
Remote Switch: 12ft ,wireless remote control integrated with Wired remote control
Battery: Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead: 4-way roller fairlead
Steel cable:          Ф9.5 x 88 ft (Ф9.5 x 27 m )
Weight:              92 pound (42kg )
Overall dimension: 21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	10000	12500
Line Pull	kg	LOAD	1812	2718	3624	4304	5665
Line speed	ft/ min	22.8	11.8	10.2	8.5	7.0	6.0
Line speed	m/ min	6.95	3.6	3.1	2.6	2.13	1.83
Motor current	Amps	78	166	207	248	310	372

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	12500	9927	8250	7045
Rated line pull per layer	kg	5665	4497	3737	3191
Length of cable on drum	ft	17.8	38.2	64.2	72
Length of cable on drum	m	5.93	12.73	19.57	24.00

Prod Model:	XM-TE907
Pulling Rate:	12500 Lb
Weight:	42 Kg
Package:	Carton Box
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Electric Winch Model:	Truck Jeep Trailer
Working Voltage Of Electric Winch:	12 or 24 V

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.
