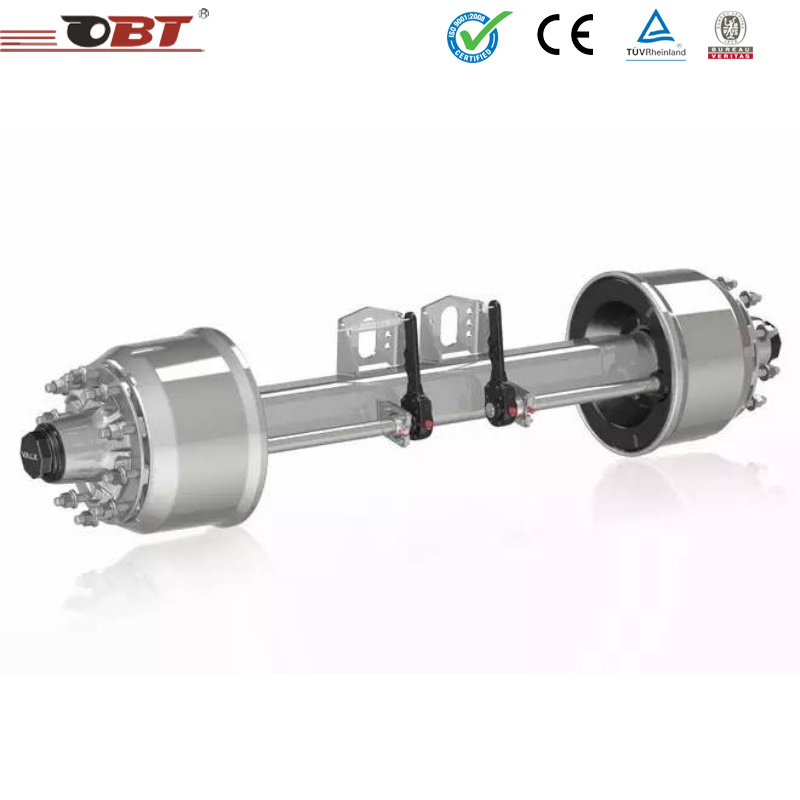

Obt Semi Trailer Truck Axles for SaleOBT Axles Features: 1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight. 2). Forged camshafts with hardened wear surface for the axle. 3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability. 4). High performance premium non-asbestos brake linings, extend service life. 5). Easy for ABS installation.Semi Trailer Axle Specification:| German type Axle |
| Model | 105km
/H
Max.
Load
(kg) | "S"cam
Brake
Series
φ×
Width
mm | Track
TR
mm | GM
mm | Axle
Beam
mm | Spring
Seat
LM
mm | Wheel Fixing | Total
Length
LP
mm | Bear
ing | Weight
(kg) | Recomm
ended
Wheel |
Stud
mm | P.C.D
mm | φH
mm |
OBT
180 | 9000 | S420
×180 | 2040 | 622 | Ο127 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2146 | 33213
33118 | ∽364 | 7.50V-20 |
OBT
181 | 12000 | S420
×200 | 2040 | 622 | Ο127 | 1180 | 10-M22×
1.5
ISO | 335 | 281 | ∽2356 | 33213
3118 | ∽375 | 7.50V-20 |
OBT
182 | 12000 | S420
×180 | 1840 | 420 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2156 | 33213
33118 | ∽372 | 7.50V-20 |
OBT
183 | 12000 | S420
×200 | 1840 | 354 | ◊150 | 900 | 10-M22×
1.5
ISO | 335 | 281 | ∽2156 | 33213
33118 | ∽96 | 7.50V-20 |
OBT
184 | 14000 | S420
×180 | 1840 | 422 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2188 | 33215
32219 | ∽402 | 8.0V-20 |
OBT
185 | 14000 | S420
×200 | 1840 | 354 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2188 | 33215
32219 | ∽416 | 8.0V-20 |
OBT
186 | 14000 | S420
×220 | 1840 | 354 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2188 | 33215
32219 | ∽430 | 8.0V-20 |
OBT
187 | 16000 | S420
×200 | 1850 | 356 | ◊150 | 900 | 10-M22×
1.5
ISO | 335 | 281 | ∽2242 | 32314
32222 | ∽468 | 8.0V-20 |
OBT
188 | 16000 | S420
×220 | 1850 | 376 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2242 | 32314
32222 | ∽474 | 8.0V-20 |
OBT
189 | 18000 | S420
×200 | 1850 | 356 | ◊150 | 900 | 10-M22×
1.5
ISO | 335 | 281 | ∽2242 | 32314
32222 | ∽478 | 8.0V-20 |
OBT
190 | 18000 | S420
×220 | 1850 | 376 | ◊150 | 980 | 10-M22×
1.5
ISO | 335 | 281 | ∽2242 | 32314
32222 | ∽484 | 8.0V-20 |
American type Semi Trailer Axles Specification: | Model | Max.
Load | "S"cam
Brake
Series φ
×Width | TR | LM | Axle
beam | GM | Stud | P.C.D | φ H | LP | Recomme
nded
Wheel | Weight | Note |
| | kg | mm | mm | mm | mm | mm | | mm | mm | mm | | kg | |
| OBTO2001 | 8000 | S420×150 | 1850 | ≤435 | Ο127 | 428 | 10×M22×
1.5ISO | 335 | 281 | ~2145 | 7.50V-20 | ~323 | 33215/
33213 |
| OBTO2023 | 10500 | S420×180 | 1820 | ≤435 | Ο127 | 368 | 10×M22×
1.5ISO | 335 | 281 | ~2165 | 7.50V-20 | ~363 | (Outer)
HM518445
/10(Inner)
HM518445
/10 |
| OBTO2024 | 10500 | S420×180 | 1820 | ≤435 | Ο127 | 368 | 10×M20×
1.5JAP | 285.75 | 221 | ~2165 | 7.50V-20 | ~359 |
| OBTO2026 | 10500 | S420×180 | 1820 | ≤435 | Ο127 | 368 | 10×M22×
1.5ISO | 285.75 | 220.1 | ~2165 | 7.50V-20 | ~356 |
OBTO2023
B11 | 10500 | S420×220 | 1840 | ≤435 | Ο127 | 325 | 10×M22×
1.5ISO | 335 | 281 | ~2165 | 7.50V-20 | ~365 |
| OBTO2423 | 13000 | S420×180 | 1840 | ≤455 | ◊150 | 390 | 10×M22×
1.5ISO | 335 | 281 | ~2185 | 7.50V-20 | ~350 | (Outer)
HM518445
/10(Inner)
HM518445
/10 |
| OBTO2424 | 13000 | S420×180 | 1840 | ≤455 | ◊150 | 390 | 10×M20×
1.5JAP | 285.75 | 221 | ~2185 | 7.50V-20 | ~363 |
| OBTO2426 | 13000 | S420×180 | 1840 | ≤455 | ◊150 | 390 | 10×M22×
1.5ISO | 285.75 | 221 | ~2185 | 7.50V-20 | ~361 |
OBTO2423
B11 | 13000 | S420×220 | 1840 | ≤455 | ◊150 | 354 | 10×M22×
1.5ISO | 335 | 281 | ~2185 | 8.00V-20 | ~365 |
OBTO2023
AD | 15000 | S420×180 | 1850 | ≤455 | Ο127 | 396 | 10×M22×
1.5ISO | 335 | 281 | ~2185 | 8.00V-20 | ~385 | (Outer)
HM518445
/10(Inner)
HM220110
/49 |
OBTO2423
AD | 15000 | S420×180 | 1850 | ≤455 | ◊150 | 396 | 10×M22×
1.5ISO | 335 | 281 | ~2185 | 8.00V-20 | ~365 |
OBTO2062
B11 | 16000 | S420×220 | 1850 | ≤455 | Ο127 | 354 | 10×M22×
1.5ISO | 335 | 281 | ~2185 | 8.00V-20 | ~410 |
OBTO2462
B11 | 16000 | S420×220 | 1850 | ≤455 | ◊150 | 354 | 10×M22×
1.5ISO | 335 | 281 | ~2205 | 8.00V-20 | ~410 |
OBTO2482
B11 | 20000 | S420×220 | 1850 | ≤455 | ◊150 | 354 | 10×M24×
1.5ISO | 335 | 281 | ~2270 | 8.50V-20 | ~455 | (Outer)
HM518445
/10(Inner)
HM32222 |

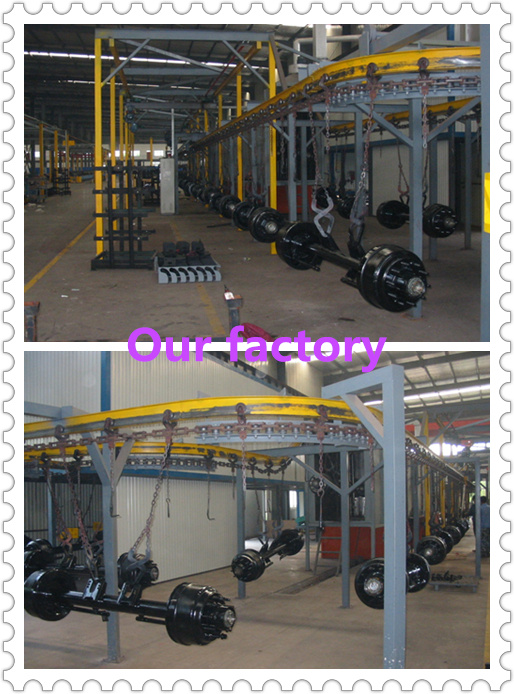

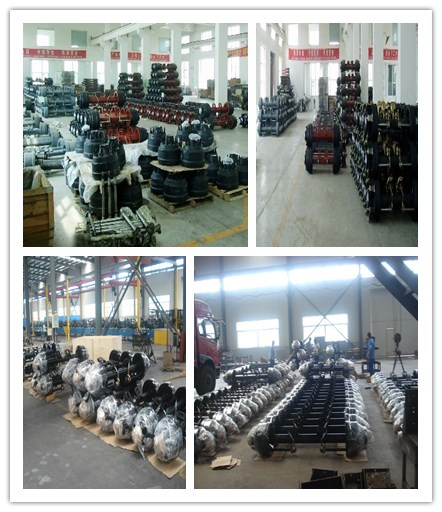

Semi Trailer Axle Photos:

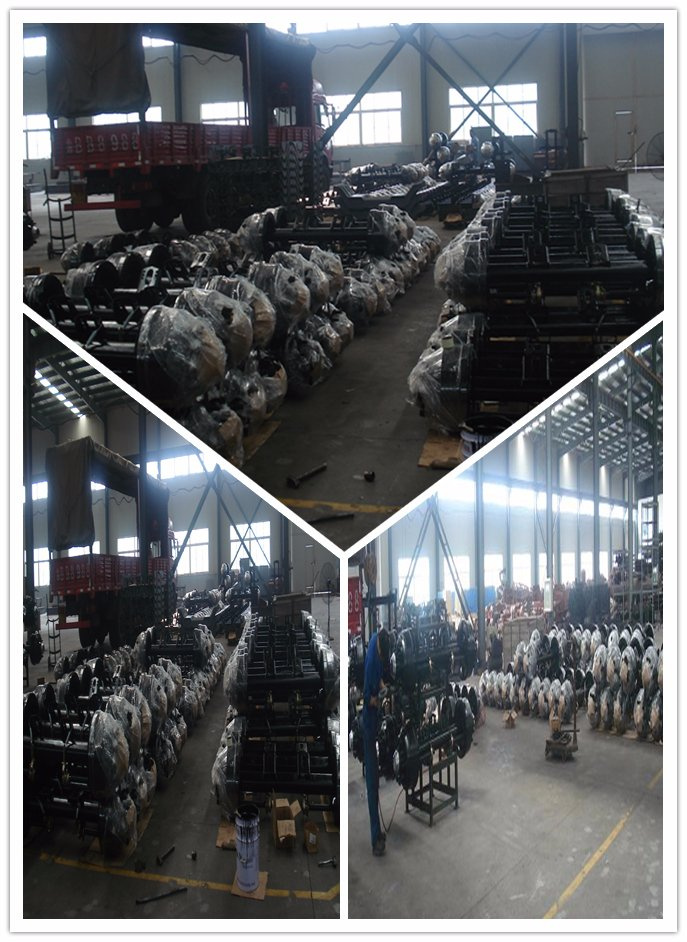

Packaging & Delivery:
1. Standard package for shipping in containers.
2. Naked or pallet.
3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.
4. Support transit report with pictures.
One-stop Service:
1. Professional Production Team:
More than 300 Experinced workers, provide clients high assembling for fast quality delivery.
2.Customize:
Professional design team provide suitable programs and customized, support local adaptive trailer.
3. 7*24h Service
7*24h service provide professional fast response.
4. Parts Support:
Abundant parts supply provide lasting support for worldwide clients.
5. DDP Logistic Transport:
Deliver to client anywhere in the worldby best logistic supplier.
