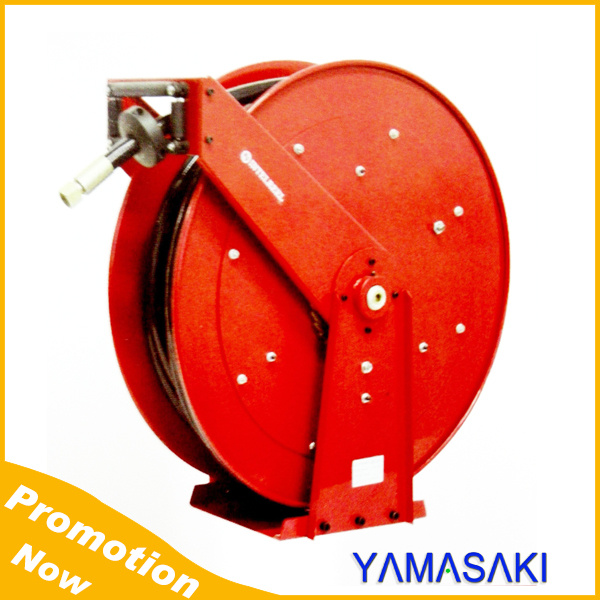

Heavy Duty Double Support Water Hose Reel

Name: Heavy Duty Double Support Water Hose Reel
Brand: ibuyautoparts.com
SKU: 768521155
Availability: InStock
Rating: 4.9 (59 reviews)

Price:	US $ 245-255/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

The features of Yamasaki 600 series hose / Cable reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Heavy load
4. Double Pedestal
5. 3.0mm thickness cold steel spring case
6. Dual Inlets optional

The Drawing of 600 series

The Specifications:

App.	Pressure rating	Hose inner dia.	Hose length	Reel inlet	Reel outlet	Pin No. With hose
Air / Water / anti-freeze	2(300)	10(3/8)	25(82)	3/4"	3/8"	600020325
	2(300)	10(3/8)	30(100)	3/4"	3/8"	600020330
	2(300)	12(1/2)	25(82)	3/4"	1/2"	600020425
	2(300)	12(1/2)	30(100)	3/4"	1/2"	600020430
	2(300)	19(3/4)	15(50)	3/4"	3/4"	600020615
	2(300)	19(3/4)	20(65)	3/4"	3/4"	600020620
	2(300)	19(3/4)	25(82)	3/4"	3/4"	600020625
	2(300)	25(1)	15(50)	1"	1"	600020715
Oil / Water	14(2030)	12(1/2)	20(65)	M2×1.5	M22×1.5	600140420
	14(2030)	12(1/2)	25(82)	M2×1.5	M22×1.5	600140425
	8(1160)	19(3/4)	15(50)	M2×1.5	M27×1.5	600080615
	8(1160)	19(3/4)	25(50)	M2×1.5	M27×1.5	600080625
Grease	28(4060)	10(3/8)	20(65)	M2×1.5	M18×1.5	600280320
Grease	28(4060)	10(3/8)	30(100)	M2×1.5	M18×1.5	600280330

The advantagues of using reels

The application scenes

Prod Model:	Series 600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
