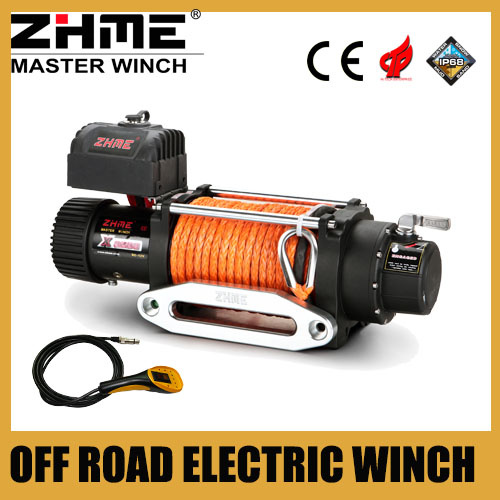

Features:
1. High performance motor with high line speed, which is beneficial to off road race.
2. High efficiency of energy conversion would cover electric power into a large pulling force by the way of reduction in short time.
3. ZHME patent special oil seals with double lips fixed on drum supports for water proof.
4. Automatic braking system is located into drum.
5. The clutch allows you to release winch rope by hand.
6. Aircraft grade wire rope, or synthetic rope is optional.
7. Remote switch & wireless remote control being alternative.
8. Our products are of well-designed, beautiful appearance and easy to install.
Specification:
| Specificaitons |
| Rated line pull: | 8288Lbs (3760kgs) single line |
| Motor: | Series wound 6.8hp /5.0kw,12V DC |
| Gear Train: | 3 stage planetary |
| Gear ratio: | 138: 1 |
| Clutch: | Sliding Ring gear |
| Braking action: | Automatic in the drum |
| Fairlead: | Aluminum hawse fairlead |
| Synthetic rope: | 9.5mm×26m |
| Drum size: | 3.0"×9.0"(76mm×228mm) |
| Dimensions: | 23.7"×6.6"×8.7"( 603mm×168mm×220mm) |
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) |
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) |
| N.W: | 90lbs (41kgs) |
| Packing: | 680mmx360mmx260mm (324pcs per 20' container) |
| Line speed and motor current (first layer) |
| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 8288 |
| Kgs | 0 | 907 | 1814 | 2722 | 3760 |
| Line speed | FPM | 65 | 19.7 | 14.1 | 12.5 | 11.2 |
| MPM | 19.8 | 6 | 4.3 | 3.8 | 3.4 |
| Motor current | Amps | 58 | 160 | 220 | 280 | 360 |
| Line pull and cable capacity | |
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 8288 | 6400 | 5300 | 4700 | |
| Kgs | 3760 | 2903 | 2404 | 2132 | |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 105 | |
| M | 6 | 13.2 | 22 | 32 | |
Shipping Service:
We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.
How to choose a ZHME Winch for your vehicle
Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.
Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009
Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
