Shanghai Yiying Crane Machinery Co., Ltd. >> Heavy Duty 100% Polyester Webbing Slings

Heavy Duty 100% Polyester Webbing Slings

Heavy Duty 100% Polyester Webbing Slings
Price: US $ 1.5-2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
                                     Heavy Duty 100% Polyester Webbing Slings





Introduction of Webbing Sling

Round webbing sling are all purpose lifting sling, strong and no damaging to its load, extremely light in weight and infinitely flexible in all direction. The round webbing sling is easy and quick to manipulate.

2. Features
1. Material: 100% tenacity polyester
2. Body ply: 1ply to 6plies
3. Out sleeve and inner core
4. Rated load: 6000kg to 120000kg
5. Length available: 1m to 100m
6. Easy to rig and remove
7. Abrasion resistant
8. Each black stripe is equal to 1 ton capacity
9. Working temperature: -40° C-100° C

Apply to lifting:
-steel wire, steel pipe, steel plate
-various machineries and parts
-cement products, glass products, rubber products, wooden products, paper products
-pipe laying, plumbing

Parameters of Webbing Sling

Model

Minimum breaking

load(Kg)

Rated load(Kg)

Vertical hanging

P=1(Kg)

Node sets of hanging

P=0.8(Kg)

45ohanging

P=1.8(Kg)

90ohanging

P=1.4(Kg)

EA-A-01

6000

1000

1000

800

1800

1400

EA-A-02

12000

2000

2000

1600

3600

2800

EA-A-03

18000

3000

3000

2400

5400

4200

EA-A-04

24000

4000

4000

3200

7200

5600

EA-A-05

30000

5000

5000

4000

9000

7000

EA-A-06

36000

6000

6000

4800

10800

8400

EA-A-07

48000

8000

8000

6400

14400

11200

EA-A-08

60000

10000

10000

8000

18000

14000

EA-A-12

72000

12000

12000

9600

21600

16800

EA-A-20

120000

20000

20000

16000

36000

28000

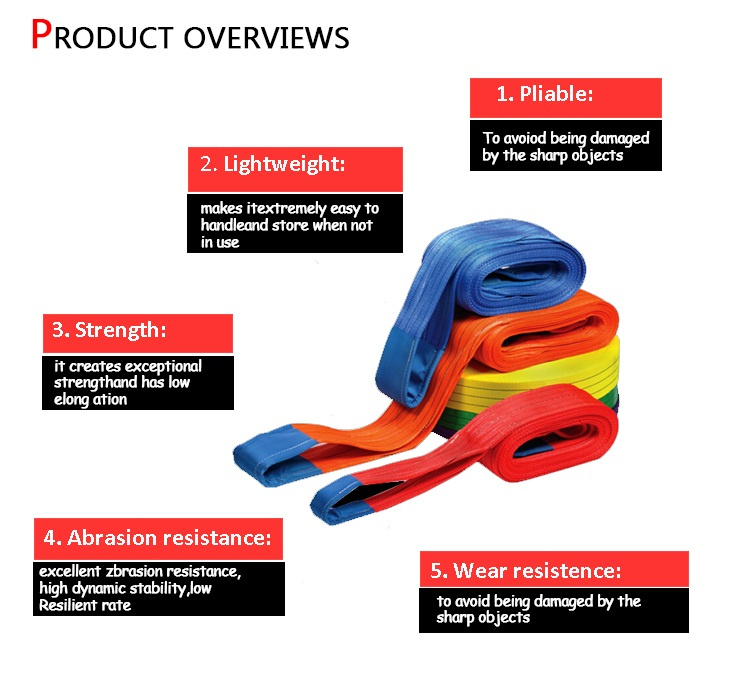

Webbing Overall


Our Service



Prod Model: EA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 750 Kg- 10000 Kg Ratchet Strap
Warranty: 1 Year
Test: 100% Test Before Assembling and Loading
Payment Term: T/T, L/C
Type: Lifting Slings Belt
Certification: CE ISO
Shanghai Yiying Crane Machinery Co., Ltd. was established in 1992, specializing in designing and manufacturing of manual chain hoist, lever hoist, electric hoists and other lifting products.
The company has been taking efforts in designing, manufacturing, sales and services nearly 20 years. Now it becomes one of the most excellent manufacturer of crane around the world. The company has total capital 50 million RMB, covers 100000 square meters, building area 75000 square meters with modern processing center, assembling center and testing center. The company has its own designing and developing ability of new product, and whole set of production equipment of lifting machinery. The sales volume reaches more than 200, 000 sets per year.
We always guarantee our design and quality following the step of times and enhance the share of international market, so the company has completely achieved quality system, such as ISO9001 and CE.
The company has been exported to almost 50 countries and regions, including Europe/ USA/Australia/Southeast Asia/South Africa, etc.
Under the principle of "QUALITY DERIVES FROM PROFESSION" Shanghai Yiying Crane Machinery Co., Ltd. Sincerely welcome all our friends from domestic and abroad to build business relationship with us!
