Heated Electric Cars Spraying Oven Coating Booth

Prod Model:	BZB-8600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

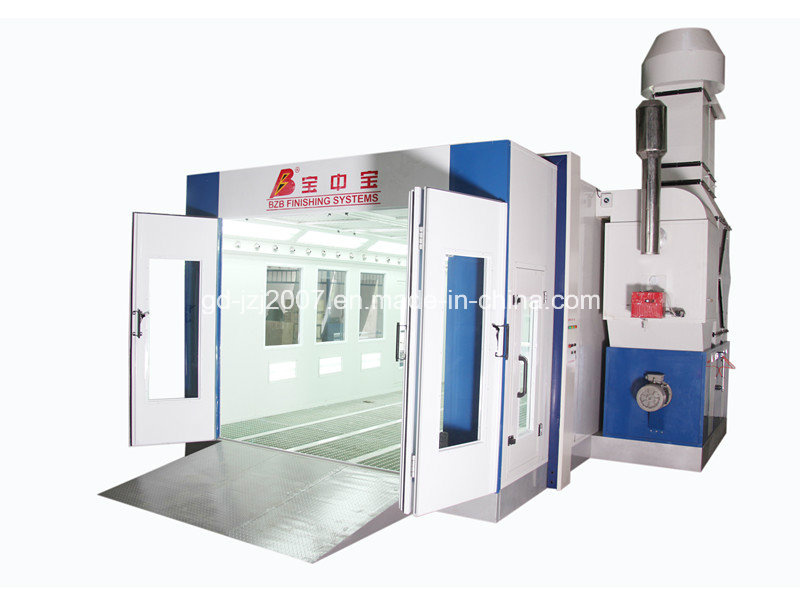

BZB-8600 Spray booth 6.9m*4m*2.8m
Outside dimension: 7000× 5690× 3450mm(L× W× H);
Inside dimension: 6900× 4000× 2800mm(L× W× H);
Front door dimension: 3000× 2600mm(W× H);
Working door dimension: 800× 2000mm(W× H);

Cabin system:

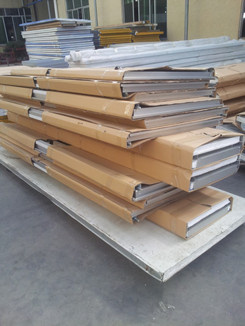

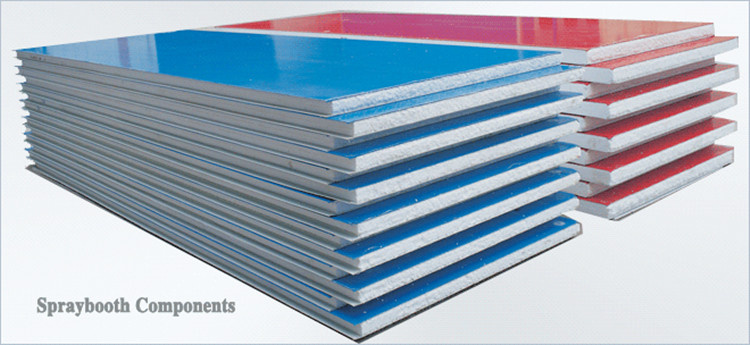

1) Wall panel: 70mm thickness flame-resistant and heat-preserving EPS board; 0.5mm thick colored steel.
Roof panel: 50mm thickness flame-resistant and heat-preserving EPS board; 0.5mm thick colored steel.
2) Basement: Adjustable base, complete grilles, all ramps, height is 330mm;

Air circulation system:
Inhaling Ventilator Model: DDF-630B Exhaust Ventilator Model: DDF-630B
Blower Capacity: 25000m3/h Blower Capacity: 25000m3/h
Pressure: 560PA Pressure: 560PA
Rolling Speed: 1440rpm Rolling Speed: 1440rpm
Power: 7.5kw Power: 7.5kw
Quantity: 1 set Quantity: 1 set
One set automatic damper, 20N actuator
54 PCS ceiling nozzles with 3 centrifugal fans (2.2kw/set) for drying water base paint
Air volume: 38500m3/h; Air speed: 0.5m/s; Air recycling times: 400times/h
Two-corner air dry systems separately controlled to fasten the water based paint drying.

Generator: Separate air inlet and outlet duct and cabin; Quadrate steel frame; Specially design of the heating recovery system for saving energy effectively

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;

Heat system: Stainless steel SUS304 heat exchanger, RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; The heating time is 5~7 minutes; With heat recovery system for energy the second time used, effectively save energy. The efficiency of recovery is 30%.

Lighting system: ≥ 1000Lux
Ceiling Lights: 8Groupsx4PCS=32PCS x36W; Side lights: 8Groupsx2Pcsx2rows=32PCS x36W
Glass: All glass is clear tempered glass.

Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;

Total power: 23.5KW
