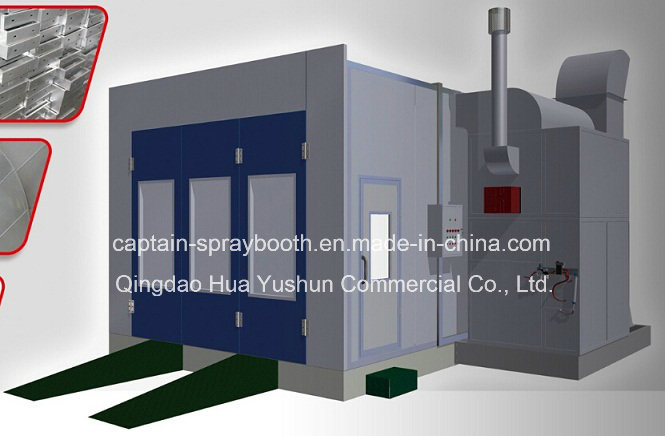

Heat Recovery Spray Booth with CE, Europe Popular Model
Price: |
US $ 6300/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 8kw |
Basement | δ=0.8mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.5mm; 3 rows of diamond plate, 2 rows of grilles which is made of 30mmx4mm flat steel, then paint. δ=2.5mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. |

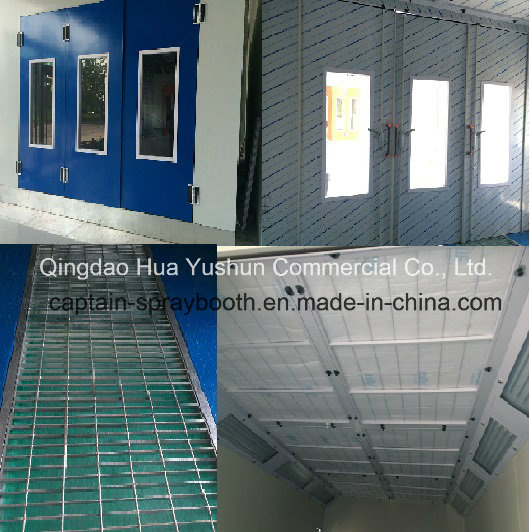

Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
Ventilation System | 2 sets 3kw YDW4.5L centrifugal fans for supplying, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside, electrical or pneumatic damper, equiped with 10N Holland electrical or pneumatic actuator. |
Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.2mm sus304 stainless steel by argon arc welding. |
Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist. |
Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
Optional | Wall Panel | 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs |
Side Lights | 20pcsx30w in vertically embedded into the wall. The light box is with powder coating. |
Environmental Cabin | 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure |
Detailed Product DescriptionPreparation Area, Painting Spraying And Dry Portable Large Spray Booth With Back GeneratorCar Care Down Draft Spray Booth, Auto repair painting and baking Room (OEM)Automobile, Vehicle, Furniture Painting Down Draft Spray Booth, Room With 3 -Fold DoorVentilation System Vertical Down Draft Spray Booth, Station for Auto PaintingAuto Care Painting, Baking, Polish Down Draft Spray Booth with Italian Riello burner G20Stainless steel heat exchanger Auto Spray Booths for car repair, painting, bakingAutomobile Maintenance Baking, Drying, Auto Spray Booths And Repair Painting RoomCar painting, Automobile Baking, Portable Auto Spray Booths1. Italian Riello RG5S diesel burner2. SUS304 Stainless steel heat exchanger3. Anti-flame and Heat-InsulationTurbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance1) For car painting and baking2) maintains a high level of safety and performance together with top quality construction and materials3) Various systems of environmental protection are optional for customers4) A wide range of colors available: White, red, marine blue, gray, orange5) Trustworthy durability of each parts6) Good after-sales servicePackaging & DeliveryPackaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguishDelivery Detail: To effect shipment within 7 days after deposit
Prod Model: |
Spray Booth |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Outside Size(mm): |
7000X5350X3300 |
Inside Size(mm): |
6900X3900X2650 |
Front Door(mm): |
3000X2600(Wxh) |
Total Power: |
8kw |
Certification: |
CE |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Captain |

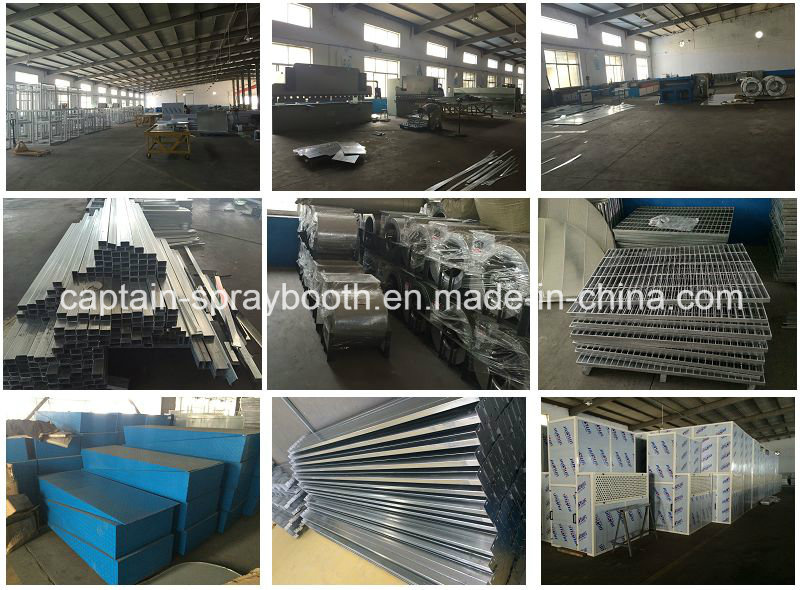

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
