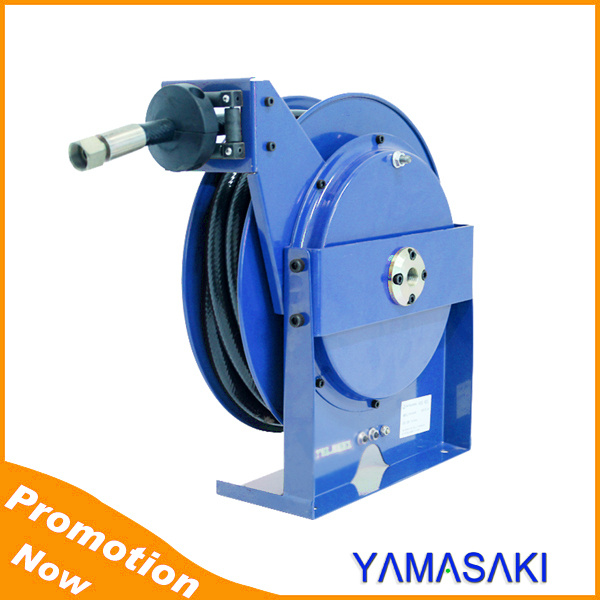

Hanging Installation All Imported Steel Spring Reels

Hanging Installation All Imported Steel Spring Reels
Price: US $ 95/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: Series 300(blue)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type: Spring
Spring Brand: Kern-Liebers
Construction: All Bolted Unitized
Mounting: Floor, Wall, Bench, Truck
Inlets: 1/4", 5/16", 3/8", 1/2"
Material: 3.0mm Cold Steel
Surface Finish: Powder Coated
Color: Red

Product Description

Feature of Series 300

Series 300 reels are all-steel construction and compact, beautiful light, especially suitable for a
wide range of application with critical space requirements. Normally we see them at the factory
workshop, automotive service shop, hanging installation.

Fluid path: 1/4", 5/16", 3/8", 1/2"

AppilicationPressure Mpa(psi)Hose inner dia. mm (In)Hose length m (ft)Reel   inletReel  outletPin No.      (with hose)Pin No.      (without hose)
Air/Water/Anti-freeze2(300)6 (1/4)10(33)1/2"1/4"300020110300020100
Air/Water/Anti-freeze2(300)6 (1/4)15(50)1/2"1/4"300020115300020100
Air/Water/Anti-freeze2(300)8 (5/16)8(25)1/2"1/4"300020208300020200
Air/Water/Anti-freeze2(300)8 (5/16)12(40)1/2"1/4"300020212300020200
Air/Water/Anti-freeze2(300)10(3/8)10(33)1/2"3/8"300020310300020300
Air/Water/Anti-freeze2(300)12(1/2)10(33)1/2"1/2"300020410300020400
Oil/Water19(2780)6 (1/4)12(40)M20×1.5M14×1.5300190112300190100
Oil/Water15(2280)10(3/8)10(33)M20×1.5M18×1.5300150310300150300
Oil/Water14(2030)12(1/2)8(25)M20×1.5M22×1.5300140408300140400
Grease35(5075)6 (1/4)10(33)M20×1.5M14×1.5300350110300350100

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
