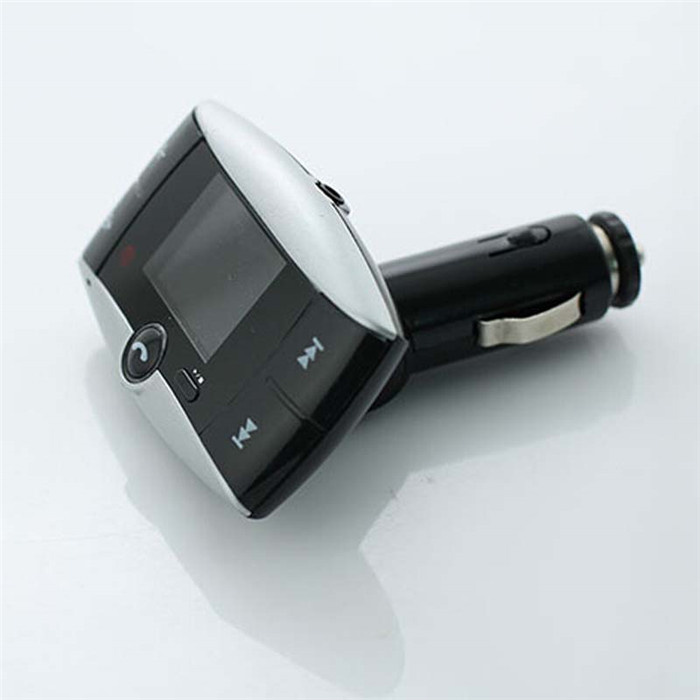

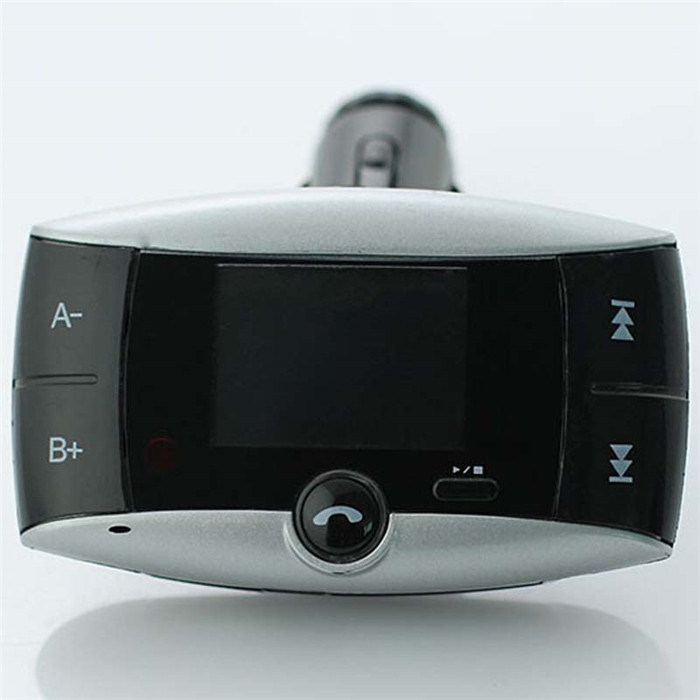

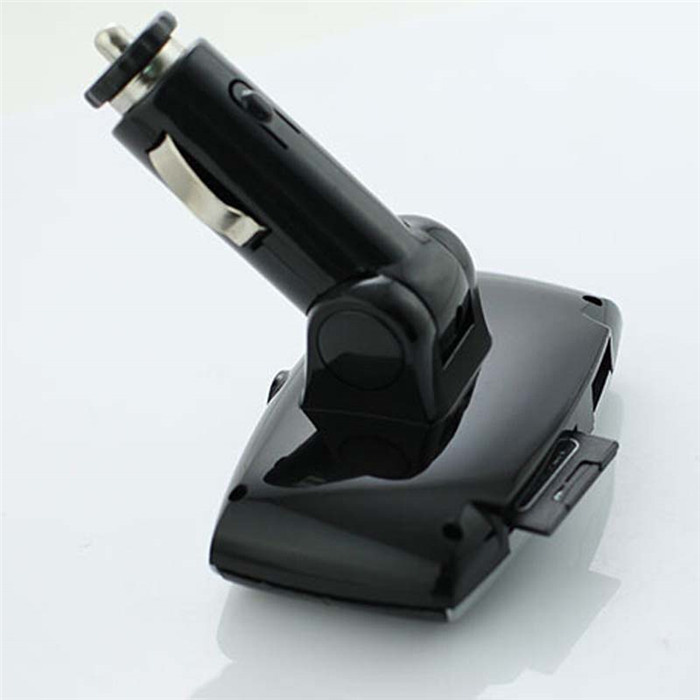

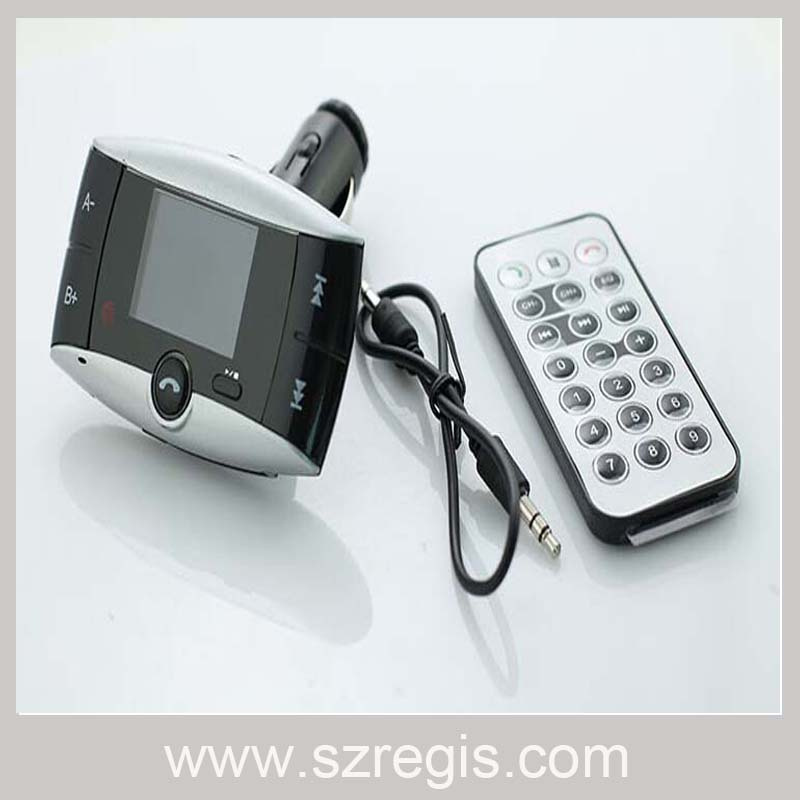

Handsfree Car MP3 Cigarette Lighter Bluetooth 2.0 FM Transmitter
Car MP3 FM Transmitter Specification:This product is a vehicle for the Bluetooth car MP3 player, professional-grade high-performance Bluetooth module, MP3 decoder chip, high-fidelity, low noise emission chip back, can play SD card and USB inside the music files. Transmit wirelessly to the car stereo, if the user's mobile phone with Bluetooth, you can use the Bluetooth feature to the machine automatically switches to speakerphone state, end the call and then automatically switches back to the music player, you can also phone in your MP3 music way through the wireless transmitter is transmitted to your car stereo, your car does not need modification can easily make your way to either the driver can enjoy music and hands-free phone calls, entertainment security correct.
FM Transmitter Features:1: Bluetooth Handsfree
3: echo cancellation and noise during a call processing (cars with speeds of up to 100 yards, the use of Bluetooth phone no echo)
4: Stereo Bluetooth and FM transmitter technology
5: Support USB / SD Card
6: support for MP3 format music
7: Automatic power and memory function
8: direct car cigarette lighter power supply
9:20 button remote control
Operating Instructions
4.1: Playing Music
4.1.1 The product is inserted into the car cigarette lighter socket with inside MP3 or WMA music files SD card or U disk into an appropriate outlet, the player is detected inside the music files will automatically enter the playing status, press Toggle Play / time out.
4.1.2 turn the car stereo to FM radio mode, agreed to adjust the reception frequency of car audio and car radio transmission frequency, car stereo can play the music machine
4.1.4 adjust the transmission frequency:
Press the "CH-" key and "CH +" keys to adjust the frequency of the FM transmitter from between 87.5 ~ 108MHZ, press and quickly adjust
4.1.4 Short button or key, play the previous song or next song, long press the volume down and volume increases
4.2 Bluetooth handsfree
4.2.1 The first time you use the speakerphone need to code. The code is: open the phone's Bluetooth feature and search, when the phone will search for Bluetooth phones bundled machine, first you need to enter the initial password 0000 bundled in the phone. You can make and receive calls via speakerphone after the connection is completed.
4.2.2 If the phone with the hands-free player already had code, phone settings allow automatic connection of Bluetooth, the power automatically when the phone is connected to the hands-free player. (If the phone is set not to allow automatic connection of Bluetooth, the phone will be prompted to connect different phone models will be slightly different)
4.2.3 When your Bluetooth MP3 playing music when the phone calls, the player will automatically switch to hands-free mode, press the answer key to the Bluetooth hands-free calls, end the call and then automatically switches back to the music player state, you can press the Bluetooth key to hang up to end the call directly answer
4.2.4 Description:
1, a2dp function. Phone with a2dp function (ie with stereo Bluetooth), may be able to play music in your phone through the car stereo AV connectivity (some phones expand playback music called different names, the same connection method as described above).
2, different phones can be connected to different Bluetooth services simultaneously, but at the same service can only connect a cell phone. Such as A phone connected phone calls, B to connect to the phone calls must take the A phone is disconnected, but the function (in the case a2dp A feature phone is not connected) B phone if a2dp, B phone can single connection a2dp function. A phone call that is hands-free, B phone can play music through the Bluetooth player. In this case, if an incoming call or make a call, the phone will automatically take precedence. It will be automatically transferred to a2dp playback after the call ends.
3. Priority: different functions are used in the case of priority as follows
Phone calls> a2dp player, U disk music player, SD card music player
Click priority order, any high-priority function is activated, the low priority will be suspended after the end of the high-priority features, low priority will be restored

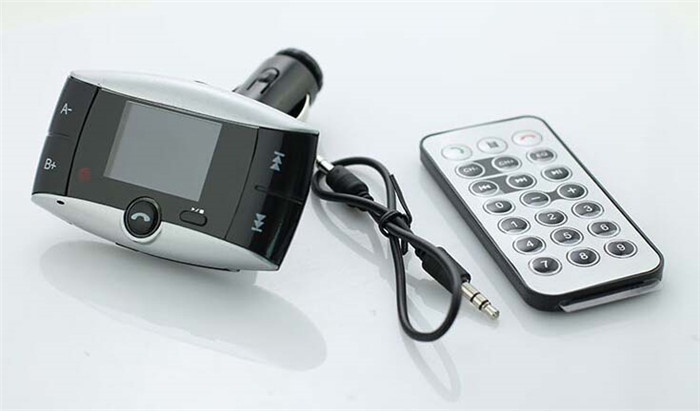

Remote Control Description
1:20 key remote control remote control
Technical Data
Rated working voltage 12V
Limit working voltage 9 ~ 26V
Work rate consumption 1W
Operating temperature 0 to 50 degrees
Support playback format MP3 WMA (option)
SNR> 60dB
Distortion <0.1%
Frequency response 20Hz-15Khz
Left and right channel separation> 60dB
Bluetooth version 2.0
Bluetooth sound processing with A2DP (Advance AudioDistribution Profile) function
Bluetooth transmission distance 5M
FM transmission frequency 87.5 ~ 108Mhz
FM Transmitter FAQ:Q: 1. what would the lead time be?
A: Sample is 1-3 working days, mass production time is 3-8 working days for less than 1000 PCS. |
Q: 2. Can we place a mixed order?
A: It's ok. But normally for mixed order, MOQ for each item is 100pcs. |
Q: 3. Can I have a dummy sample even pre-production before I send you the order?
A: Yes, we can send you the dummy samples or samples with logo for your approval first. |
Q: 4. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products. |
Q: 5. How to follow in the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If mockup is ok, finally we will go to mass production. |
Q: 6. what are "Color Corrections" and the "Color Match Guarantee"?
A: Color Corrections include each individual image review and adjusting of density, color tones, saturation and lighting. |
Please feel free to contact us if any question or comments.
Thanks in advance!
Contactor: Miss Monica
