Application :
2006- Volkswagen Golf V TDI, Jetta TDI, Passat TDI, Touran TDI BKD 2.0 TDI 4 Valve Euro-4
2006- Audi A3 TDI 2.0L, 4 Valve
2006- Skoda Octavia TDI, Superb TDI AZV Euro-4
2006- Seat Altea TDI, Leon TDI AZV Euro-4

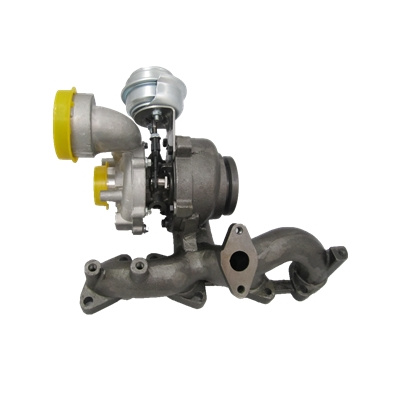

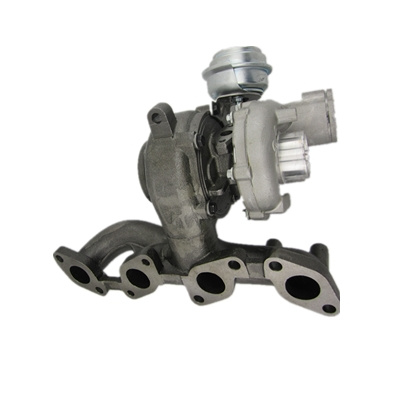

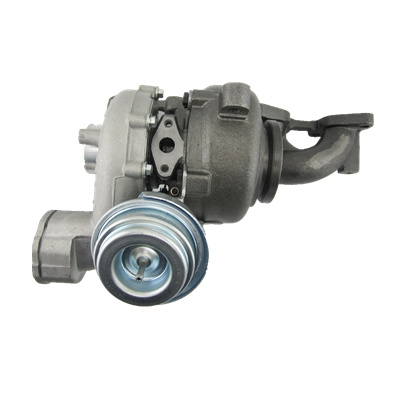

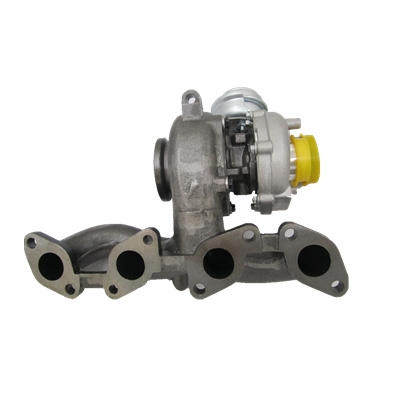

Part Number 724930-5009S
Previous Version 724930-0002, 724930-0004, 724930-0006, 724930-0009, 724930-5006S, 724930-5008S
OE number 03G253014H, 038253016F, 038253016E, 038253019F, 038253016FV115, 038253016FV510, 038253016FV500, 03G253019A, 03G253019AV, 03G253019AX, 03G253019AV550, 03G253010J, 03G253010JX, 03G253010JV, 9102117007, 03G253019HV100, 03G253014J, 03G253019A
Year 2004-10
Description Audi, Volkswagen, Skoda, Seat
CHRA 703890-0127 (703890-0034, 703890-0060, 703890-0148, 703890-0123, 703890-0160)(1102015935) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model GTA1749MV(S2), GTA1749MV, GT1749MV, GT1749V (S2)
Engine Manufacturer VW
Engine Code BKD AZV Euro-4
Displacement 2.0L, 4 Valve 1968 ccm, 4 Cylinders
KW 138
RPM Max 4000
Fuel Diesel
Bearing Housing 722282-0013 (703880-0002, 722282-0060, 722282-0062, 433145-0005) (1102017458, 1102017450)
Turbine Wheel 434533-0035 (433257-0010, 434533-0007, 434533-0009, 434533-0059, 721161-0004)(Ind. 36. mm, Exd. 43.1 mm, 9 Blades) (1102017441, 1102017438)
Comp. Wheel 702489-0009 (702489-0002, 702489-0006)(Ind. 49. mm, Exd. 34.7 mm, Trm 50, Extended back disc type 6 blades) (1102015401)
Back plate 703682-0045 (700593-0006, 703682-0023) (1102015300)
Heat shield Number 433112-0001 (1102015342)
Repair Kit 732252-0001 (1102015781, 1102015756)
Thrust Kit 732248-0003/732252-0001
Nozzle Ring 704013-0001 (1102017830)
Turbine Housing AR VNT2
Actuator 1102117381
Gasket Kit 1900100311
Gasket (turbine inlet) 210821 (Inox Steel)
Gasket (oil outlet) 210243
Gasket (actuator EGR) 210313 (Stainless Steel)
