| Prod Model: |
GT1749V(S2) |
| Engine: |
Auy/Ajm, Bvk, Ahf, Axr, Asv, Atd, Auy Euro II |
| Fuel: |
Diesel |
| Chra: |
Tdi ChraT703890-0002 (433395-0049, 703890-0131 703 |
| Turbo Model: |
Gt1749V(S2) |
| Displacement: |
1.9L, 1896 CCM, 4 Cylinders, 8 Valves |
| Kw: |
74/85/116 |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
ISO9001 |
Product Description

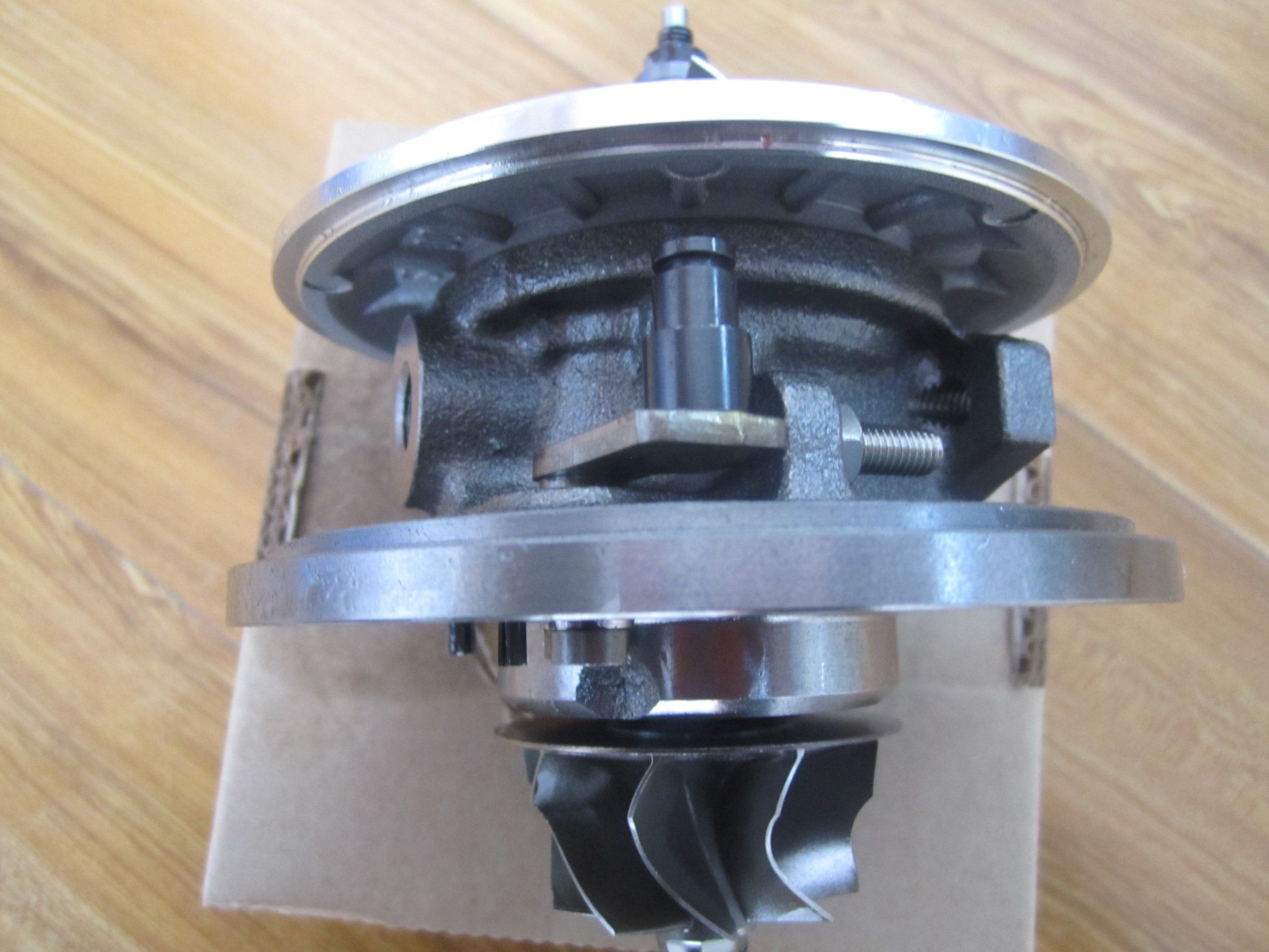

Δ GT1749V(S2) 713673-5006S turbocharger cartridge for AUY/AJM, BVK, AHF, AXR, ASV, BVK, ATD, AUY Euro III, Euro IV
| Part Number | 713673-5006S |
| Previous Version | 713673-0002, 713673-0003, 713673-0004, 713673-0005, 713673-5005S, 454232-0002/6, 454232-5011S, 713673-0001/2/3, 713673-0004, 713673-0005, 713673-0006, 713673-9006, 713673-6 |
| OE number | 1121159, 038253019N, 038253019NV500, 038253019NV225, 038253019NV220, 03G253014E, YM219G438BA, 03G253014E, 1135819, 1556571, 038253019D, 038253019DX, 038253019DV, 038253019N, 038253019NX, 038253019NV, 1556571 |
| Year | 1997-10 |
| Description | Volkswagen Golf IV TDI, Beetle TDI, Bora TDI |
| CHRA | 703890-0002 (433395-0049, 703890-0131 703890-0151) |
| Turbo Model | GT1749V(S2) |
| Engine | AUY/AJM, BVK, AHF, AXR, ASV, BVK, ATD, AUY Euro III, Euro IV |
| Model | Alhambra, Golf Van (Variant), Golf, Bora Estate/Variant, Bora Estate/Variant, Leo, Alhambra, A3 |
| Model Type | 7V9, 1J5, 1J6, 1M1, 7V9, 8L1 |
| Type | TDi |
| classification | PV |
| Displacement | 1.9L, 1896 ccm, 4 Cylinders, 8 Valves |
| KW | 74/85/116 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 177 |
| Angle β (turbine housing) | 90 |
| Bearing Housing | 722282-0013 (703880-0002, 703882-0002, 722282-0060, 722282-0062) |
| Turbine Wheel | 434533-0007 (433257-0010, 434533-0009, 434533-0035, 434533-0059, 721161-0004)(Ind. 43. mm, Exd. 35.9 mm, Trm 69, 9 Blades) (1102017441, 1102017438) |
| Comp. Wheel | 434812-0001 (434812-0002) (Ind. 49. mm, Exd. 32. mm, Trm 45, Extended back disc type 6 blades) (1102015400) |
| Back plate | 700593-0006 (703682-0023, 703682-0045)(1102015306) (1102015300) |
| Heat shield Number | 433112-0001 (1102015342) |
| Repair Kit | 732248-003/732245-0001 (1102015759) |
| Nozzle Ring | 704013-0001/704013-0002 |
| Turbine Housing AR | VNT2 |
| Gasket (turbine inlet) | 210664 |
| Gasket (outlet) | 210311 |
| Fitting (oil inlet) | 722531-0001 |
| Gasket (oil outlet) | 210243 |
| Gasket (actuator EGR) | 210313 |
| Replaces By | 713673-0007 |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 54399880017
Applications
2000-10 Audi A3 TDI AUY/AJM PD UI Euro-4
2000-10 Ford Galaxy TDI BVK/AUY/AJM PD UI Euro-4 VW
2000-10 Volkswagen Golf IV TDI, Beetle TDI, Bora TDI AUY/AJM PD UI Euro-4
2000-10 Skoda Octavia PD UI Euro-4
2000-10 Seat Alhambra TDI BVK/AUY/AJM PD UI Euro-4
2000-10 Volkswagen Sharan TDI BVK/AUY/AJM PD UI Euro-4
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
