Gt1749V (S2) 454231-5010s Turbocharger for Audi A4, Skoda Superb, Volkswagen Passat B5

ΔGT1749V (S2) 454231-5010S turbocharger for Audi A4, Skoda Superb, Volkswagen Passat B5


Part Number	454231-5010S
Previous Version	454231-0002, 454231-0006, 454231-0008, 454231-0009, 454231-5009S, AR0110
OE number	028145702R, 028145702RV225, 028145702RV500, 028145702RV550 - 038145702L, 028145702H, 028145702HX, 028145702HV
Year	1999-06
Description	Audi A4, Skoda Superb, Volkswagen Passat B5

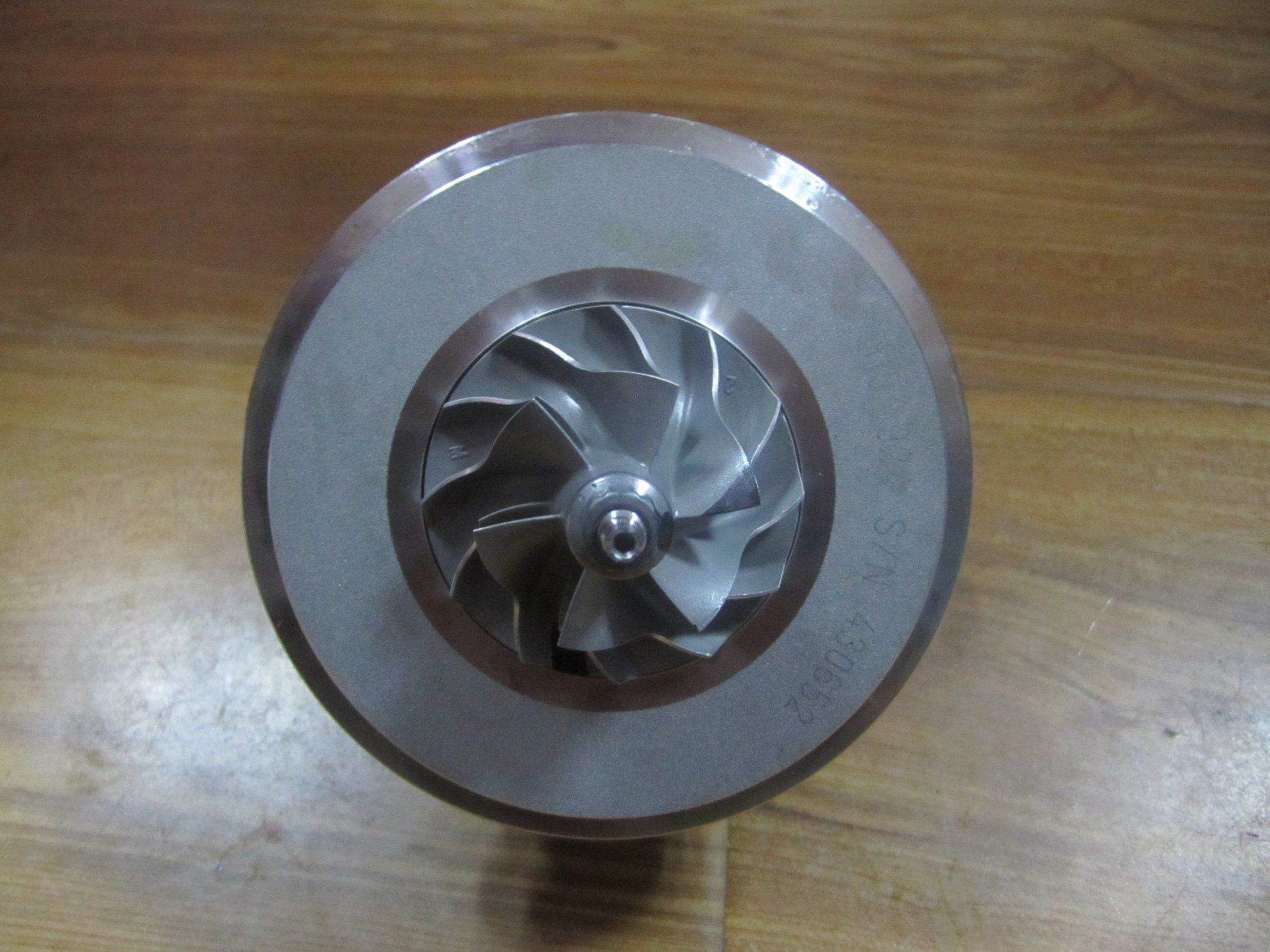

CHRA	433395-0019
Turbo Model	GT1749V (S2)
Engine	PD UI 100HP, TDI 115 PD
Engine Manufacturer	VW
Displacement	1.9L, 1896 ccm
KW	74/81/85
RPM Max	4000
Fuel	Diesel
Angle α (compressor housing)	90
Angle β (turbine housing)	230
Bearing Housing	433145-0004
Turbine Wheel	434533-0002
Comp. Wheel	434812-0001
Back plate	700593-0006
Heat Shield	433112-0001
Repair Kit Minor	732136-0001
Repair Kit Major	732248-003/732245-0001
Thrust Kit	732248-0003
Turbine Housing AR	VNT1
Manufacturer	Honeywell-Garrett

Applications
1996-00 Audi A4 TDI Car with PD UI 100 HP - TDI 115 PD Engine
1996-00 Seat Skoda TDI Car with PD UI 100 HP - TDI 115 PD Engine
1999-06 Volkswagen Passat TDI Car with PD UI 100 HP - TDI 115 PD Engine
1997-99 Audi A4 1.9 TDI (B5) Engine AHH / AFN
2000-01 Audi A4 1.9 TDI (B5) Engine ATJ / AJM
2000-04 Audi A4 1.9 TDI (B6) Engine AVB, BKE
1997-01 Audi A6 1.9 TDI (C5) Engine AHH / AFN
1998-01 Audi A6 1.9 TDI (C5) Engine ATJ
2000-05 Skoda Superb I 1.9 TDI Engine AVB
1997-00 Volkswagen Passat B5 1.9 TDI Engine AHH / AFN
1998-05 Volkswagen Passat B5 1.9 TDI Engine AVB
1998-00 Volkswagen Passat B5 1.9 TDI Engine AJM / ATJ

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
