| Prod Model: |
GT1749V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Rhg8V |
| Part Number: |
Va520077 |
| V-Spec.: |
Vxcx, Vxcx0889 |
| OE Number: |
24100-4220, S1760-E0040, S1760-E0102 |
| Description: |
Truck Profia 700 |
| Balancing: |
High Speed Balancing Tested |
| Shipping: |
UPS/TNT/FedEx/DHL/by Air/ by Sea |
| Certification: |
CE |
| Type: |
Mechanical Turbocharger System |
| Body Material: |
Iron |
| Brand: |
Refone |
| Application: |
Ford, Vw |
| Electric Turbocharger Type: |
Turbocharger |
Product Description

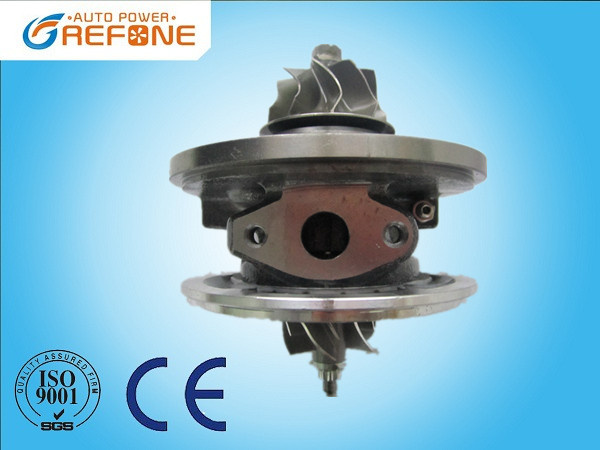

GT1749V 703890-0151 turbo cartridge 713673-5006S turbo charger for Ford
Details
| Part Number | 703890-0151 |
| Turbo Model | GT1749V, GTA1749V, GTA1749MV |
Applications
Application : Seat Volkswagen FORD Various
Garrett GTA1749V Turbo:
701855-0006
Garrett GTA1749MV Turbos:
713673-0004, 713673-0005, 713673-0006
Garrett GT1749V Turbo:
454232-0010
Part Number | 713673-5006S |
| Previous Version | 713673-0002, 713673-0003, 713673-0004, 713673-0005, 713673-5005S, 454232-0002/6, 454232-5011S, 713673-0001/2/3, 713673-0004, 713673-0005, 713673-0006, 713673-9006, 713673-6 |
| OE number | 1121159, 038253019N, 038253019NV500, 038253019NV225, 038253019NV220, 03G253014E, YM219G438BA, 03G253014E, 1135819, 1556571, 038253019D, 038253019DX, 038253019DV, 038253019N, 038253019NX, 038253019NV, 1556571 |
| Year | 2000-06 |
| Description | Volkswagen Golf IV TDI, Beetle TDI, Bora TDI |
| CHRA | 703890-0151 |
| Turbo Model | GT1749V(S2) |
| Engine | AUY/AJM, ASV, ATD/ASV, PD UI |
| Displacement | 1.9L, 1896 ccm, 4 Cylinders |
| KW | 74/85/116 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 177° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 722282-0013 |
| Turbine Wheel | 434533-0059 |
| Comp. Wheel | 434812-0002 |
| Back plate | 703682-0023/700593-0006 |
| Heat shield Number | 433112-0001 |
| Nozzle Ring | 704013-0001/704013-0002 |
| Actuator | 434855-0015 |
| Turbine Housing AR | VNT2 |
| Gasket (turbine inlet) | 210664 |
| Gasket (outlet) | 210311 |
| Fitting (oil inlet) | 722531-0001 |
| Gasket (oil outlet) | 210243 |
| Gasket (actuator EGR) | 210313 |
| Replaces By | 713673-0007 |
Our company products cover all popular makes and applications of turbo as followed:
Garrett:GT12, GT15-25, GT37-40, GT42-45, GT50-UTV-BTG, GT60, T2, T3, T04B-E, T04S , T12-60, T18-18A, T2-T25-T28, T3, TA45-51, TL-V-W, TV91-94
KKK:3LD, 4HD-MD, K03-04, K14-16, K24, K26, K27, K28-29, K31, K33, K36-37, KP/BV31-39
Schwitzer:3LD, 4HD-MD, 4LE-F-G, B2, S1B, S200, S2A, S2B-C-E, S3-3A, S300, S3B, S400, S4D, S4T, S500
MHI:TC04, TC06, TD02-03, TF035, TD04, TD05-06, TD07-08, TD13,
IHI:RHB3, RHB5-51, RHB6, RHB7, RHC6, RHC7, RHF3, RHF4, RHF5, RHF55, RHG8
Toyata:CT, CT9, CT12, CT12B, CT20, CT20B, CT26, Yaris
Hitachi:HT06, HT07, HT10-12, HT15, HT18, HT20, HT25
Other:K27, K36, K36V, C12, C13, C14, C15
Company Description
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Gavin wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
