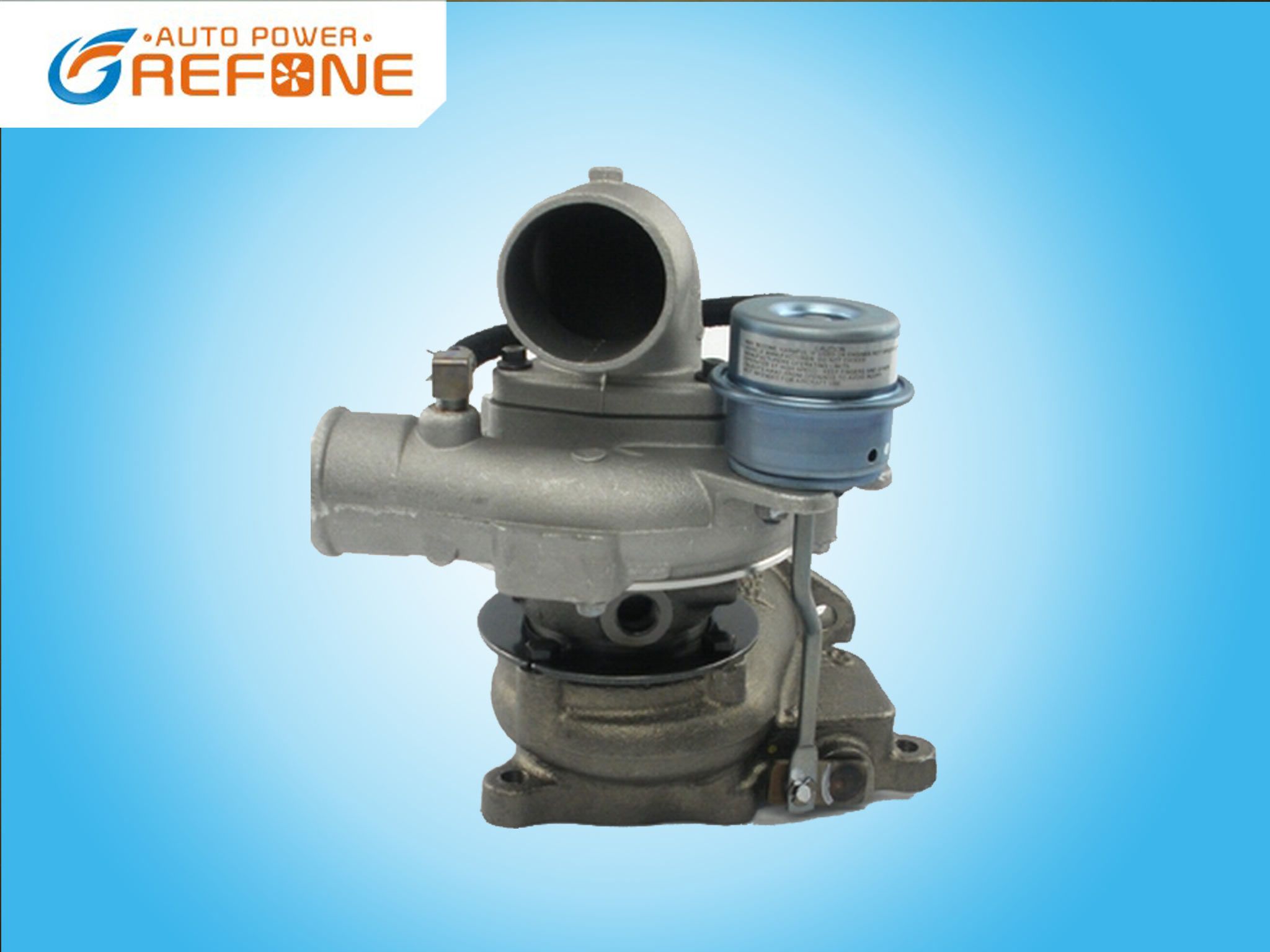

Name: Gt1749s 715843-5001s 715843-1 Turbine 2820042600 Turbo for Hyundai
Brand: ibuyautoparts.com
SKU: 749554955
Availability: InStock
Rating: 4.4 (148 reviews)

Price:	US $ 250-280/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

GT1749S Turbine 2820042600 Turbo For Hyundai
Details:

Previous Version	715843-0001, 715843-1
Year	2001-
Description	Commercial
CHRA	433352-0031 (433352-5031S)
Turbo Model	GT1749S
Engine	4D56TCI, D4BH (4D56 TCI) Electronic, 4D56TCI Euro-3
Displacement	2.5L, 2476 ccm, 4 Cylinders
KW	100/136 HP
RPM Max	3800
Fuel	Diesel
Bearing Housing	436132-0003/434578-0012
Turbine Wheel	434714-0021
Comp. Wheel	436132-0003
Back plate	433254-0003/433294-0002
Heat shield Number	N/A
Repair Kit	732252-0001
Turbine Housing	452540-0003 K
Compressor Cover	435791-0104
Turbine Housing AR	0.4
Actuator	432340-0112
Settings Waste gate (pressure)	0920-0950 bar
Settings Waste gate (lifting rod)	1.00 mm
Gasket (turbine inlet)	210501
Gasket (turbine outlet)	210525
Gasket oil inlet	210023
Gasket (oil outlet)	210243

Applications

2001- Hyundai Commercial Starex(H1) with D4BH (4D56 TCI) Electronic Engine

2001- Hyundai Commercial H100, Satellite with 4D56TCI Engine

2001- Hyundai One Ton with 4D56TCI Euro-3 Engine

Contact us:
Contact Person: Miss Vorina Zhu

Cell phone:+86-18133658728
Tel: +86-55165617152

Fax: +86-55165613152
Website:www.cnrefone.com

Prod Model:	GT1749S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbo Model:	Gt1749s
Part Number:	2820042600, 28200-42600
OE Number:	6020960599, 6020901280, A6020960599, A6020901280
Description:	Hyundai Commercial
Repair Kit:	732252-0001
Chra:	433352-0031 (433352-5031s)
Engine:	4D56TCI, D4bh (4D56 TCI) Electronic, 4D56TCI Euro-
Certification:	CE
Type:	Electric Turbocharger
Brand:	Refone

Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
