GT1749S 708337-5002S 28230-41730 turbine engine turbo for Hyundai Truck Mighty IIProducts DetailsPart Number: 708337-5002S
Previous Version: 708337-0002
OE Number: 2823041730, 28230-41730
Year: 2000-
Description: Truck
Turbo Model: GT1749S
CHRA: 433352-0018
Engine: D4AL
Engine Manufacturer: Hyundai
Displacement: 3.3L, 3300 ccm, 4 Cylinders
KW: 90
RPM Max: 3400
Fuel: Diesel
Angle α (compressor housing): 90
Angle β (turbine housing): 90
Bearing Housing: 434578-0012
Turbine Wheel: 433257-0001
Comp. Wheel: 433256-0003
Back plate: 433259-0002
Repair Kit: 732252-0001
Turbine Housing: 435788-0049
Compressor Cover: 435791-0093/702208-0001
Turbine Housing AR: 0.44
Actuator: 451792-0006
Settings waste gate (pressure): 1.370-1.410/1.040-1.080bar
Settings Waste gate (lift shaft): 0.38/4.00 mm
Gasket (turbine inlet): 210621
Gasket (oil outlet): 210243
Replaced By: 708337-0004
Manufacturer: Honeywell-Garrett
Applications:2005- Hyundai Sonata 2.0 CRDi Engine D4EA
2005- KIA Magentis 2.0 CRDi Engine D4EA

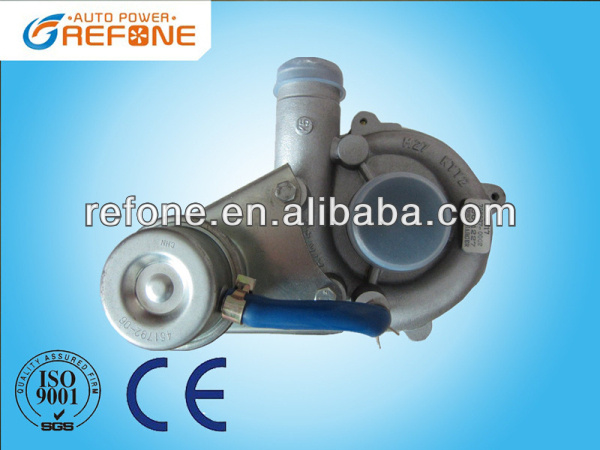

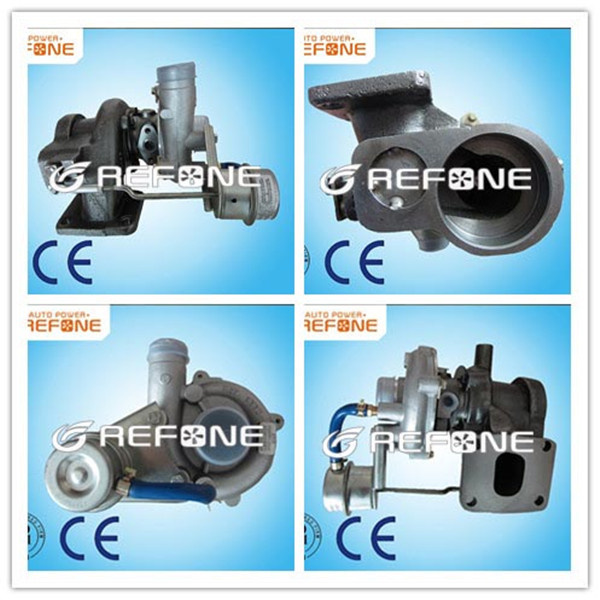

Product Pictures

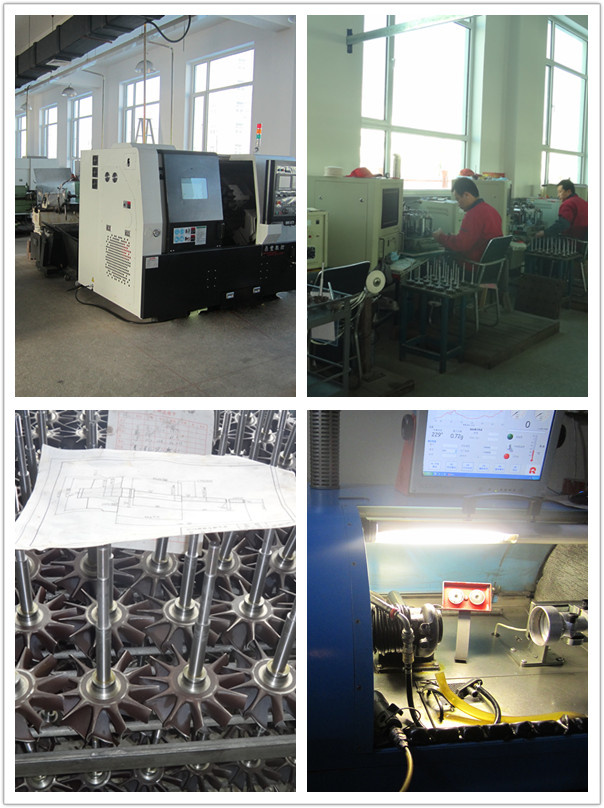

Factory Images
Our Service
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Packing Images
Company Imformation
Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us
1. 1 Year quality warranty.
2.High speed balancing tested.
3.Meeting customers' needs.
4.Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
Part Number |
708337-0002,708337-5002S |
OE number |
2823041730, 28230-41730 |
Description |
Truck |
CHRA |
433352-0018 |
Turbo Model |
GT1749S |
Engine |
D4AL |
Engine Manufacturer |
Hyundai |
Displacement |
3.3L, 3300 ccm, 4 Cylinders |
KW |
90 |
RPM Max |
3400 |
Manufacturer |
Honeywell-Garrett |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
