| Prod Model: |
GT1544S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gt1544s |
| P/N: |
454082-5002s, 454082-0001, 454082-0002 |
| Material: |
K18 Sharft and Wheel |
| OE Number: |
028145701t, 028145701tx, 028145701TV |
| Parts Availability: |
All Available |
| Chra: |
433289-0116 |
| Aftre-Sale Service: |
Take Photos, Sending Back for Testing |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Package: |
Mold Foam. Plastic Bag. Strong Canton. |
| Certification: |
CE |
| Body Material: |
Iron |
| Brand: |
Refone |
| Type: |
Turbocharger |
Product Description

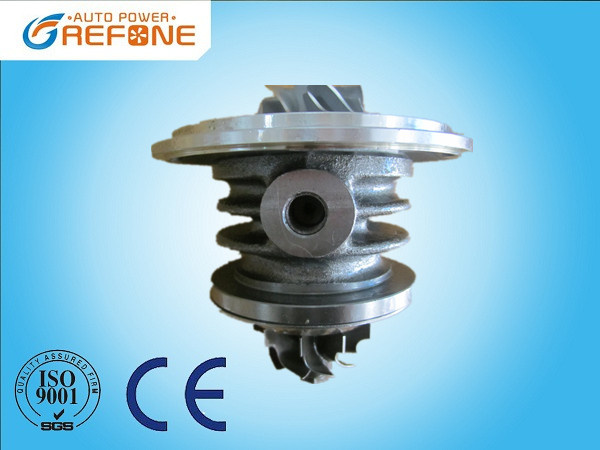

GT1544S 454082-5002S turbo chra cartridge engine turbine
Product Description
Part Number | 454082-5002S |
| Previous Version | 454082-0001, 454082-0002 |
| OE number | 028145701T, 028145701TX, 028145701TV |
| Year | 1994-1997 |
| Description | Audi 80 A6 |
| CHRA | 433289-0116 |
| Turbo Model | GT1544S |
| Engine | 1Z / AHU, TDI- TDI B4 |
| Engine Manufacturer | AUDI |
| Displacement | 1.9L, 1896 ccm, 4 Cyl |
| KW | 66/90 HP |
| RPM Max | 4400 |
| Fuel | Diesel |
| Angle α (compressor housing) | 164º |
| Angle β (turbine housing) | 315º |
| Bearing Housing | 433275-0002 (Oil Cooling Type) |
| Turbine Wheel | 433290-0042 |
| Comp. Wheel | 433287-0004 |
| Back plate | 700593-0001 |
| Heat Shield | 434302-0001 |
| Repair Kit | 732252-0001 |
| Turbine Housing | 435788-0015 |
| Compressor Cover | 435791-0056/435842-0017 |
| Turbine Housing AR | 0.34 |
| Actuator | 435616-0003 |
| Settings Waste gate (pressure) | 0.770 - 0.830 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210292 |
| Gasket (turbine outlet) | 210296 |
| Gasket (oil outlet) | 210243 |
Applications
1994-1996 Audi 80 1.9 TDI (B4) Engine 1Z
1994-1997 Audi A6 1.9 TDI (C4) Engine 1Z / AHU
Factory Introduction
Refone Auto Power Co., Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading. It imports samples and technology from Europe, Japan and other countries, also exports turbochargers, turbo parts, turbocharger accessory parts to Europe, Japan, America etc...Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
