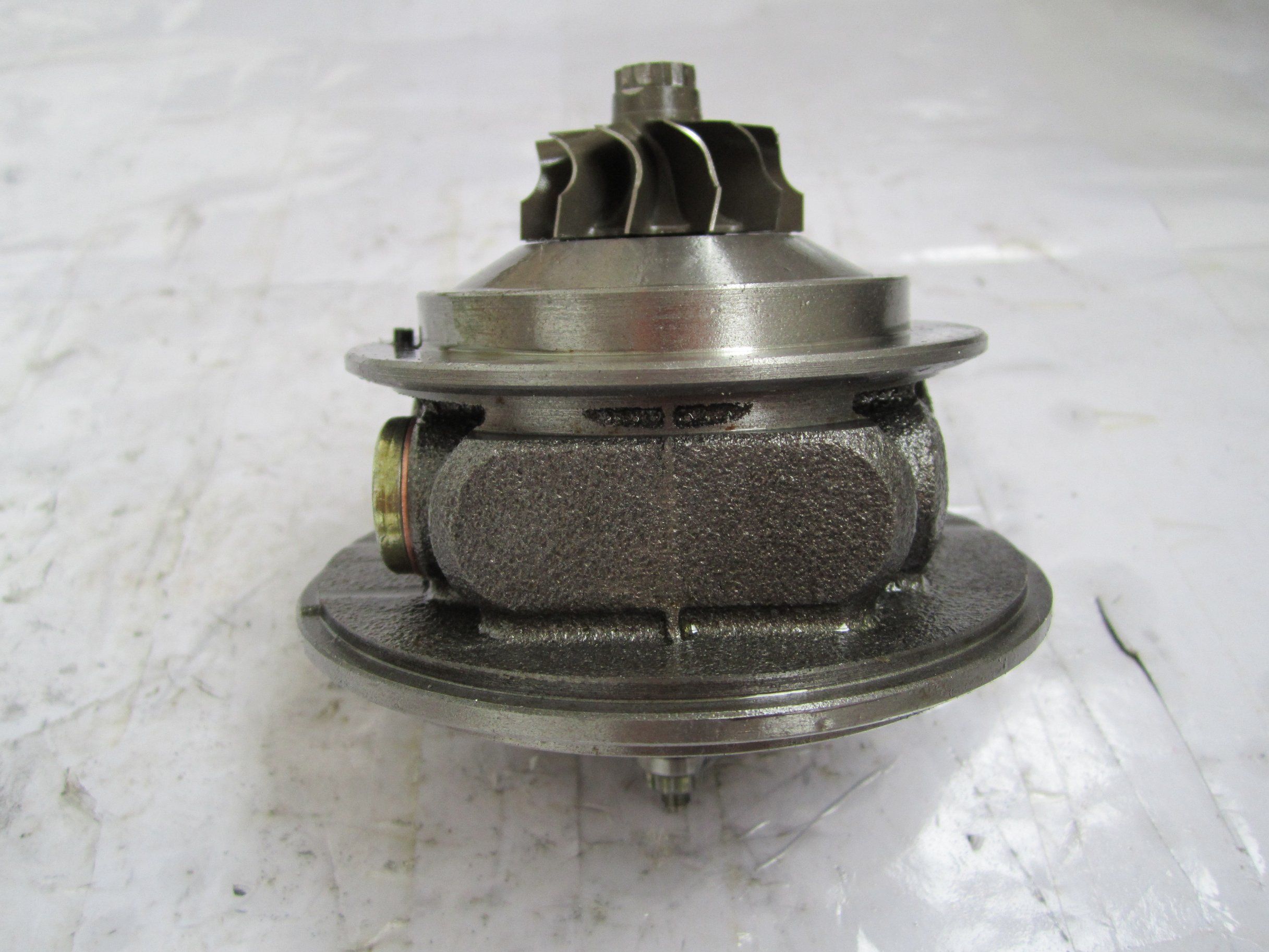

Gt1241sz, Gt1241z 756068-5001s Cartridge for Volkswagen Parati, Golf Turbocharger

Δ GT1241SZ, GT1241Z 756068-5001S cartridge for Volkswagen Parati, Golf turbocharger

Part Number	756068-5001S
Previous Version	708001-0001, 756068-0001, 708001-1, 756068-1
OE Number	036145701, 36145701
Year	2001-
Description	Volkswagen Parati, Golf
CHRA	708247-0007 (757864-0001, 708247-0002)
Turbo Model	GT1241SZ, GT1241Z
Engine Model	EA111
Engine Manufacturer	VW
Displacement	1.0L, 1000 ccm, 16V, 4 Cylinders
KW	82/101/130 HP
RPM Max	5500
Fuel	Gas
Angle α (compressor housing)	276
Angle β (turbine housing)	201
Bearing Housing	757865-0001
Turbine Wheel	703145-0002
Comp. Wheel	708205-0002
Turbine Housing	711404-0002/711404-0008
Compressor Cover	710395-0002/756072-0001
Actuator	712738-0002
Settings Waste gate (pressure)	0.455-0.515 bar
Settings Waste gate (lift shaft)	1.00 mm
Gasket (turbine inlet)	210505
Gasket (turbine outlet)	210694
Gasket (oil inlet and outlet)	210382
Manufacturer	Honeywell-Garrett

Applications
2001- Volkswagen Golf, Parati with EA111 Engine

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
