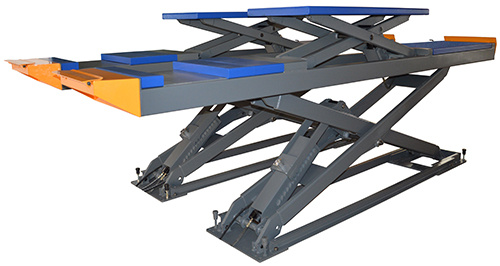

Ground Big Scissor Lift B-35-45D

Name: Ground Big Scissor Lift B-35-45D
Brand: ibuyautoparts.com
SKU: 711836252
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	US $ 4300-4325/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Ground Big Scissor Lift B-35-45D

Product Features:
1.Adopt DC 24V for control voltage, to ensure the safety of operators.
2.Adopt coaxial drilling machine, to ensure the concentricity of all holes on the arms.
3.Adopt numerical control cutting and bending machine, to ensure the straightness and flatness of sheet metal components.
4.Adopt electrostatic powder spraying technology, double in efficiency more than oil paint, to ensure not easy for corrosion or scratch.
5.Adopt integrative main platform processed by laser cutter and numerical control bending machine, able to bear higher shear stress than normal square beam, to ensure no deformation on it for wheel alignment.

Specification

Parameters:

1.Model:B-35-42C/ B-35-45C/ B-45-52C;

2.Runway Length:4200mm/4500mm/5200mm;

3.Runway Width:625mm;

4.Min. Height:130mm;

5.Max. Height:1850mm;

6.Secondary Lift Height:500mm;

7.Rising Time:50~60Sec;

8.Lifting Weight:3500Kg/3500Kg/4500Kg;

9.Net Weight:2000Kg/2200Kg/2400Kg;

10.Input Voltage:3P 380V,50Hz / 1P 220V,50Hz;

11.Power:3HP/2.2Kw.

Prod Model:	B-35-45D
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	ISO
Design:	Single Post

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
