Great Price Professional Alignment Scissor Car Lift

Name: Great Price Professional Alignment Scissor Car Lift
Brand: ibuyautoparts.com
SKU: 700796022
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	Negotiableset
Trade Terms:	FOB
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SY-350A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Volatge:	as Require
Lifting Capacity:	3.5T
Certification:	CE
Design:	Scissor
Type:	Scissor Lift
Brand:	Shinely

Product Description

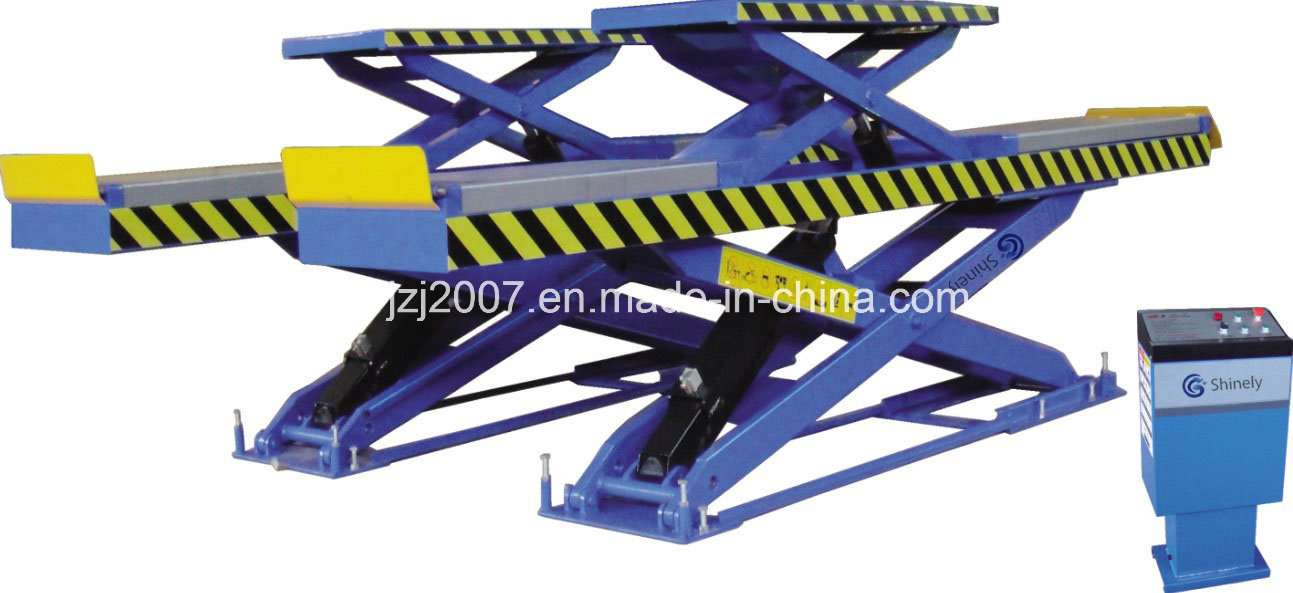

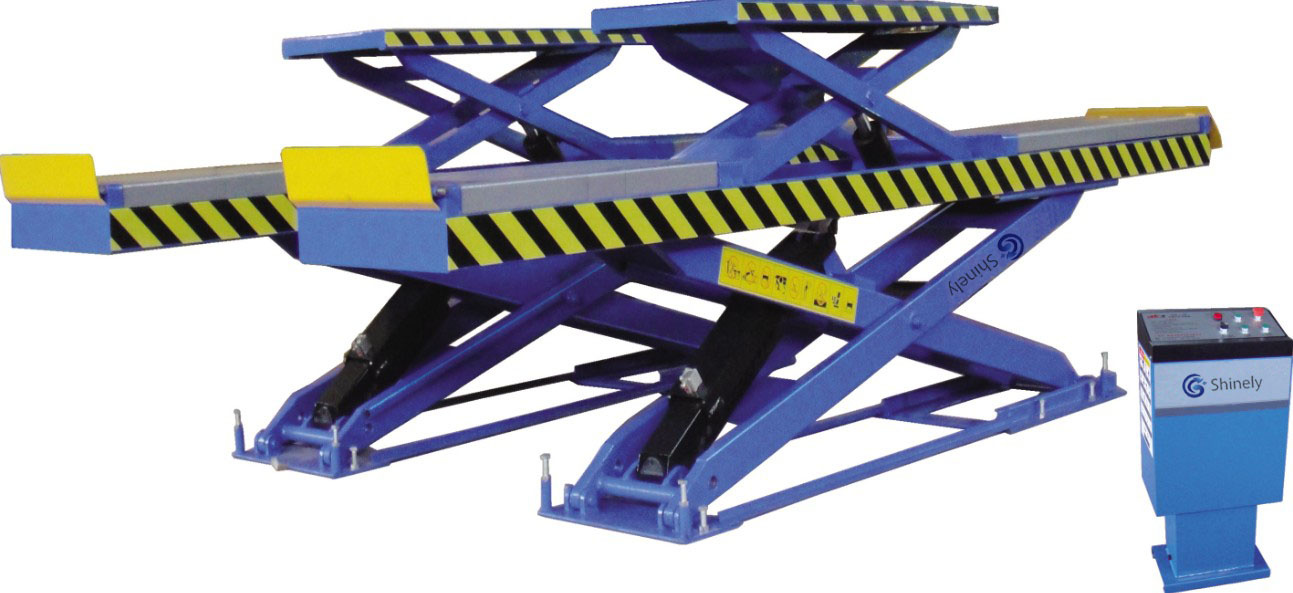

SY-350A Professional alignment scissor lift
Features:
Luxurious scissor wide-platform structure with super synchronization
Level can be well adjusted to meet the need for wheel alignment
Device perform stable and reliable work is relayed on imported hydraulic, pneumatic and electrical components
The pneumatic double-teeth self-locking system and anti-explosion pipe structure will automatically open when lowering , which ensure the safety of the device.
Ingenious and unique sliding system and closed platform, also don't need ground pits.
With trolley guide rail and can optional add the second lifting jack
The position of the front wheel turning table (optional part) is adjustable and suitable for various type of automobile

Technical data

Lifting capacity	7714lbs/3500kg
Lifting height	79"/2000mm
Secondary lifting height	20"/500mm
Min Height	13"/330mm
Overall length	165"/4200mm
Platform width	24"/620mm
Width between two platforms	32"/800mm
Air source pressure	5-6kg/Cm²
Lifting time for large scissor	30seconds
Lifting time for jack	20seconds
Motor voltage	220V or 380V
Frequency	50Hz or 60Hz
Phase	1ph or 3ph
Net weight	3760lbs/1706kg
