| Prod Model: |
BTD8800 |
| Custom Code: |
8419899090 |
| Disposition: |
Top Level, Top Disposition |
| Quality: |
Best Quality, European Design |
| Usage: |
All Kinds of Cars Painting and Baking |
| Color: |
Optional |
| Popular In: |
Developed Countries Which Is Very Cold in Winter |
| Control System: |
Standard Y/Δ Step-Down Start Control System |
| Heat Exchanger Materials: |
Stainless Steel1gr18ni9ti(SUS304) |
| Lighting Arrangement: |
on Two Sides |
| Burner Model: |
G20 Diesel Burner |
| Certification: |
CE |
| Airflow Direction: |
Lateral Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .
Advantages:
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
8. Touch screen control
9 Semi draf paint booth
Advantage
1. We are manufactory for 10 years
2. We have CE and ISO9001: 2000
3. German Technology
4. Warranty Time 2 years, Long-life Maintenance
Model: BTD 8800

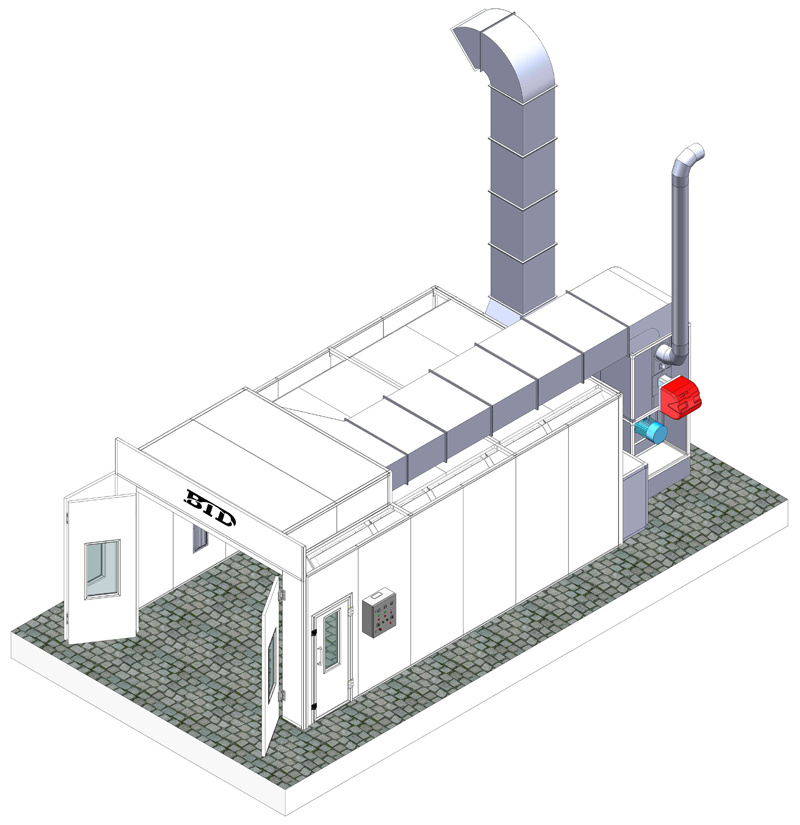

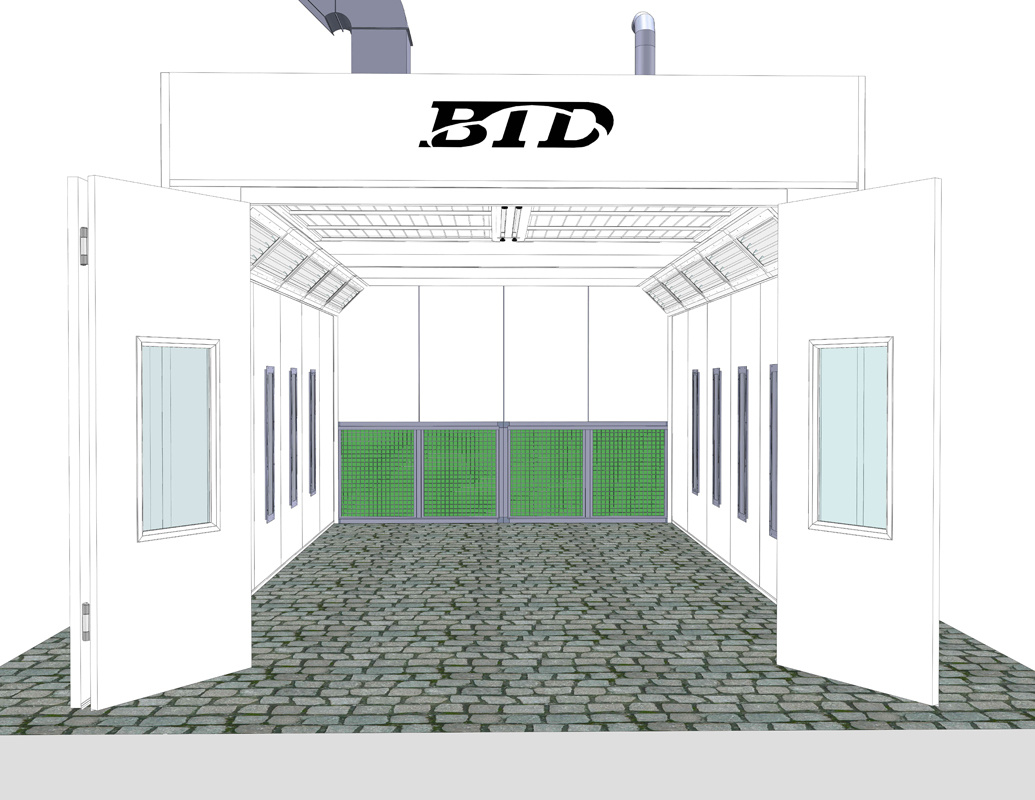

| Spray Booth BTD8800 |
Spray Booth BTD8800 ( 6.9×4×2.8M )
Loading condition: One 40GP container |
| Design standards | BS EN 13355 : 2004+A1:2009
BS EN 60204 : 2006+A1:2009 | |
| Cabin size | | |
| Internal size | 6900×4000×2800mm (L×W×H) | |
| External size | 9070×4110×3810mm(L×W×H) | |
| Basement | | |
| Basement design type | No, with rear air collection box extraction structure | |
| Air extraction type | Rear semi down draft extraction type | |
| Air collection description | Frame structure,size:2000*1200*660mm | |
| Filtration area | 4.8 | |
| Cabin | | |
| Cabin structure | Wall panel vertical insert | |
| Plenum chamber height | 600mm (half plenum chamber) | |
| Wall panel | 50mm EPS panel | |
| Roof panel | Galvanized steel plate bend forming | |
| Material of wrap edge | 1.5mm galvanized steel plate bend forming | |
| Entrance door | | |
| Type of entrance door | Hand made entrance door,2+1 structure | |
| Size of entrance door | 3200×2700 mm (W×H), | |
| Door arrangement and QTY | 1 set | |
| Description of door | With frame inside, fill with EPS | |
| Service door | | |
| Type of service door | Frame structure | |
| Size of service door | 800×2000 mm (W×H) | |
| Door arrangement and QTY | 1 set | |
| Description of service door | With safe glass observation window | |
| Side lighting | | |
| QTY and power | 6 units, each 2×36W, total 432W | |
| Lighting arrangement | On two sides | |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights | |
| Ceiling lighting | | |
| QTY and power | 8 units, each 4×36W, total 1152W | |
| Lighting arrangement | On two sides | |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights | |
| Total illumination | >1000Lux | |
| Filtration system | | |
| Pre filter | G2 Grade plate type filter | |
| Ceiling filter | 5 Grade filter, model is SP-600G | |
| Bottom paint-mist collection | Fiber glass paint-stop filter | |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on | |
| Inlet system | | |
| Inlet fan | Direct drive turbo fan | |
| Inlet fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) | |
| Inlet fan parameter | 500pa 18000m3/h | |
| Exhaust system | | |
| Exhaust fan | Direct drive turbo fan | |
| Exhaust fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) | |
| Exhaust fan parameter | 500pa 18000m3/h | |
| Equipment air speed when empty loaded | +/- 0.4m/ when empty loaded | |
| Noise | <78 dB | |
| Heating system | | |
| Heat exchanger materials | Stainless steel1Gr18Ni9Ti(SUS304) | |
| Heat exchanger capacity | 158KW | |
| T temperature increase ability | 20°C(from -10°C to 10°C under painting status) | |
| Max working temperature | 80 | |
| Heating time | 4-6 minutes (from 20° to 60°) under baking status | |
| Burner model | G20 diesel burner | |
| Ducting configuration | | |
| Straight duct | 4 sections | |
| 90 degree | 1 section | |
| 45 degree | 1 section | |
| Reducer | 1 section | |
| Control system | | |
| Performance standard | Standard Y/Δ step-down start control system | |
| Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication | |
spray booth / spray paint booth / inflatable spray booth / used spray booth for sale / portable spray booth / car spray booth price / spray booth for painting cars / Car paint / auto paint
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
