Good Sale Auto Spray Booth From Professional Company

Prod Model:	BZB-T8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

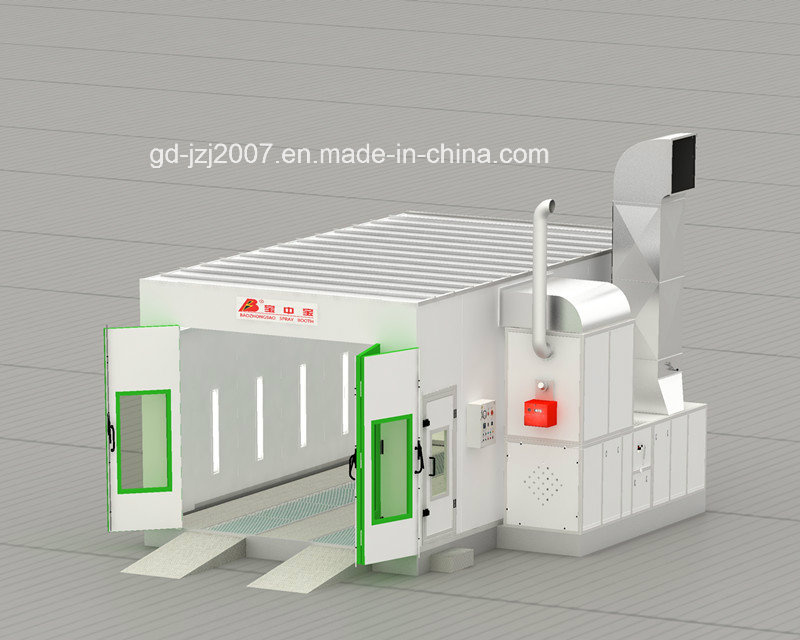

BZB-T8000 SPRAY BOOTH

Outside size(mm):7000x5560x3430
Inside size(mm):6900x4000x2700
Front door(mm):3000x2700
Total power(kw):17

Cabin system:
  1.Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel;
  2.Basement: Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Two embossed steel ramps;

Air circulation system:
  1.Inlet fan
Model: YDW;
Blower capacity: 25000m3/h;
Pressure: 815Pa;
Rolling speed: 900rpm;
Power 7.5kw;
Quantity:1 set;
  2.Outlet fan
Model:  YDW;
Blower capacity:25000m3/h;
Pressure:815Pa;
Rolling speed: 900rpm;
Power: 7.5kw;
Quantity: 1 sets;
  3.Air volume:25000 m3/h ; Air speed:0.35m/s ;Air recycling time:280 times/h;

Air purification system:Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter captures granules bigger than 4μm. Its filter rate reaches 98%. TSP ≤1.4mg/m3;

Heating System:
  1.Burner: Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor;
  2.Heat exchanger: SUS304 Stainless Steel heat exchanger, argon arc welding;
  3.Max temp:80°c;  Heating time:5-7 mins (20-60°c);Fuel consumption: 4-6kg/vehicle;

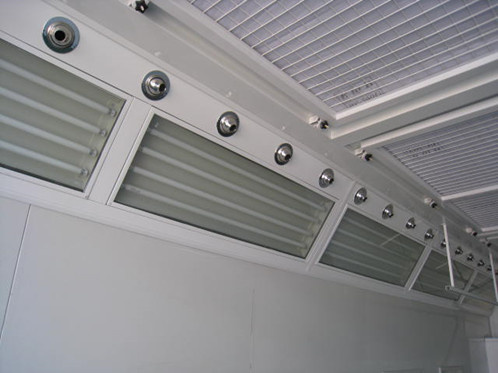

Light system: Ceiling light: 32pcs 36w Philips lamp, Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux, With tempered glass and hot line;

Electric controlling system: Micro-computer programmed controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, Failure alarm, timer;

Environmental system: Multi-layer fiberglass filter, active-carbon;
