Good Quality Spray Painting Booth Baking Oven for Sale

Name: Good Quality Spray Painting Booth Baking Oven for Sale
Brand: ibuyautoparts.com
SKU: 673280915
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 8820-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

The below is our auto spray booth BZB-8500 model, it is very competive price and nice design. For more detailed information, please free to send us inquiries.

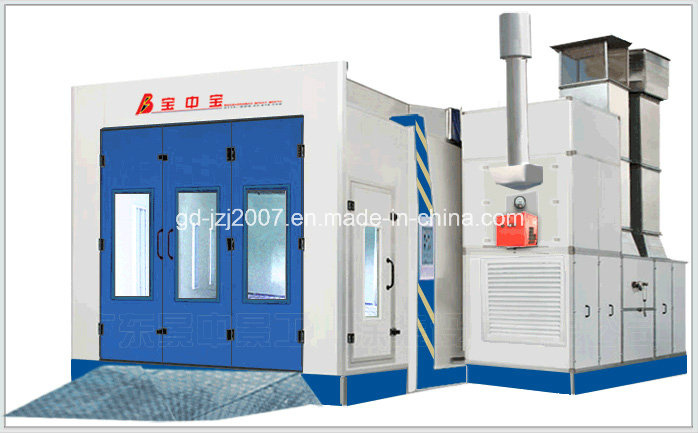

BZB8500 PAINT BOOTH
External Size (mm)	7040x5500x3450
Internal Size (mm)	6900x4000x2650

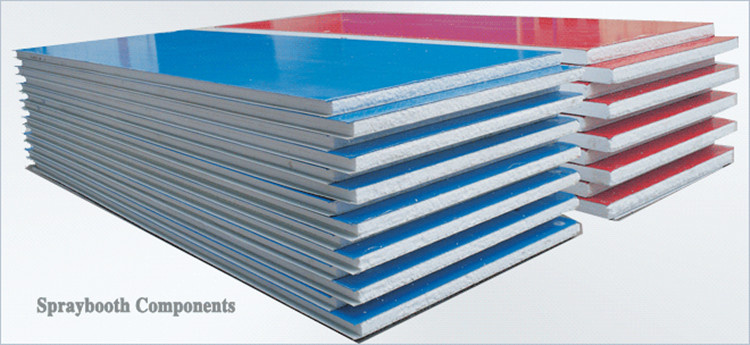

Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,70mm Thick, Tongue & Groove Style,Compound Construction, Aluminum-alloy Frame,Anti-flame and Heat-Insulation


	Full Grid, Adjustable Height,Galvanized Steel Sheet Construction,Three Embossed Steel Ramps.

Circulation System	Inhaling Ventilator		Model: YDW 4.5L	Exhaust Ventilator	Model: YDW 5.6M
			Blower capacity: 14000m 3 /h		Blower capacity:21000m 3 /h
			Pressure: 800Pa		Pressure: 800Pa
			Rolling speed: 940rpm		Rolling speed: 900rpm
			Power: 4kw		Power: 7.5kw
			Quantity: 2 sets		Quantity: 1set
	Air Volume: 28000m 3 /h; Air Speed: 0.4m/s




Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.4mg/m 3




Heating System	1.Burner	Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor


	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80centi degree, Heating Time: 4-5min(20-60centi degree), Fuel Consumption: 4-5kg/vehicle

Light System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux


Electric controlling system	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Environmental Conversation System	Multi-Layer Fiberglasss Filter

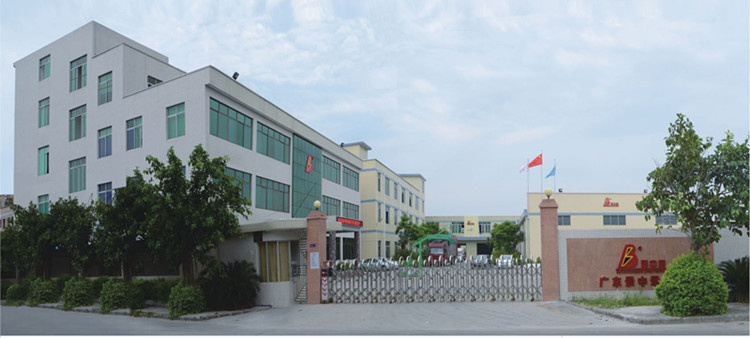

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
