Good Quality Car Spray Booth

Name: Good Quality Car Spray Booth
Brand: ibuyautoparts.com
SKU: 699501512
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Condition:	New

Product Description

8200 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: steel structure base; two line grilles, three line diamond plates; height is 280mm; 600mm width two ramps;
Air circulation system:

Inhaling Ventilator	Model: YDW-4.5L1	Exhaust Ventilator	For opitions
	Blower Capacity: 24000m³/h
	Pressure: 800Pa
	Rolling Speed: 900rpm
	Power: 4kw
	Quantity: 2sets

One set automatic damper, 10N actuator
Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;Max heating temperature:80degree;
Lighting system:≥800Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ;
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 10KW

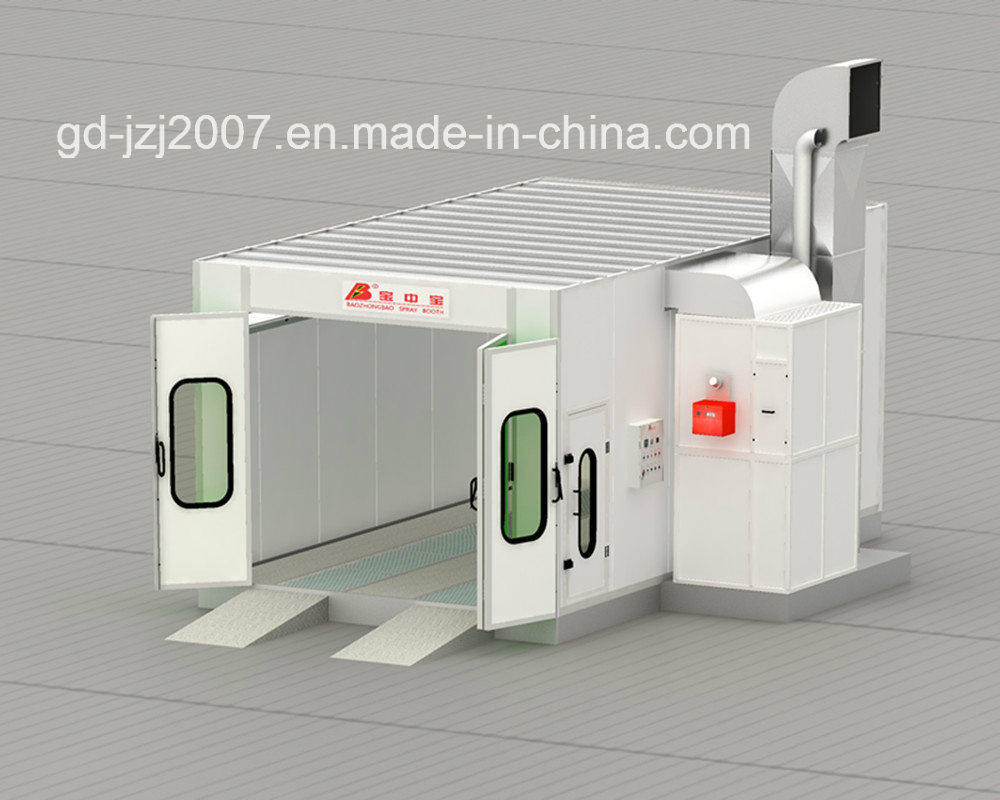

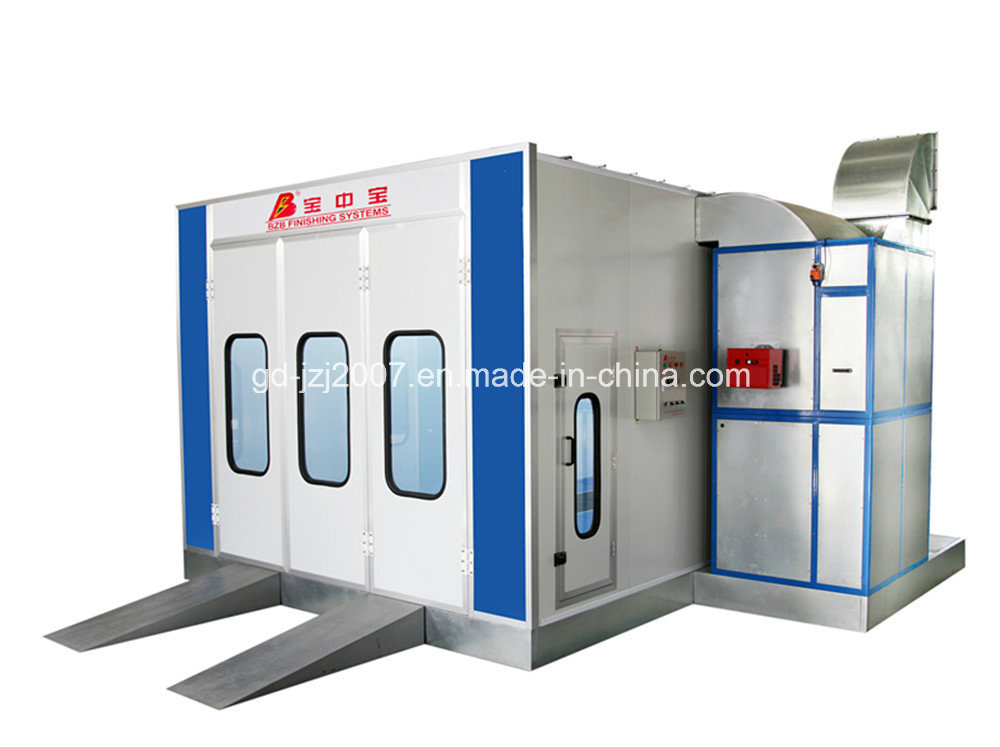

See from outside

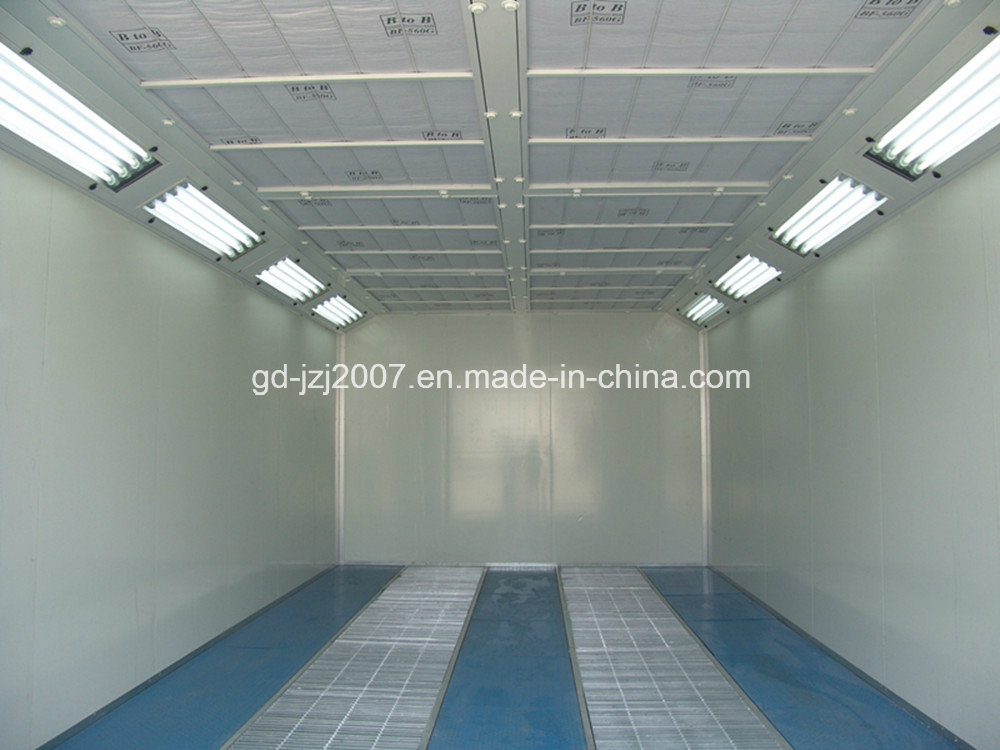

See from inside;

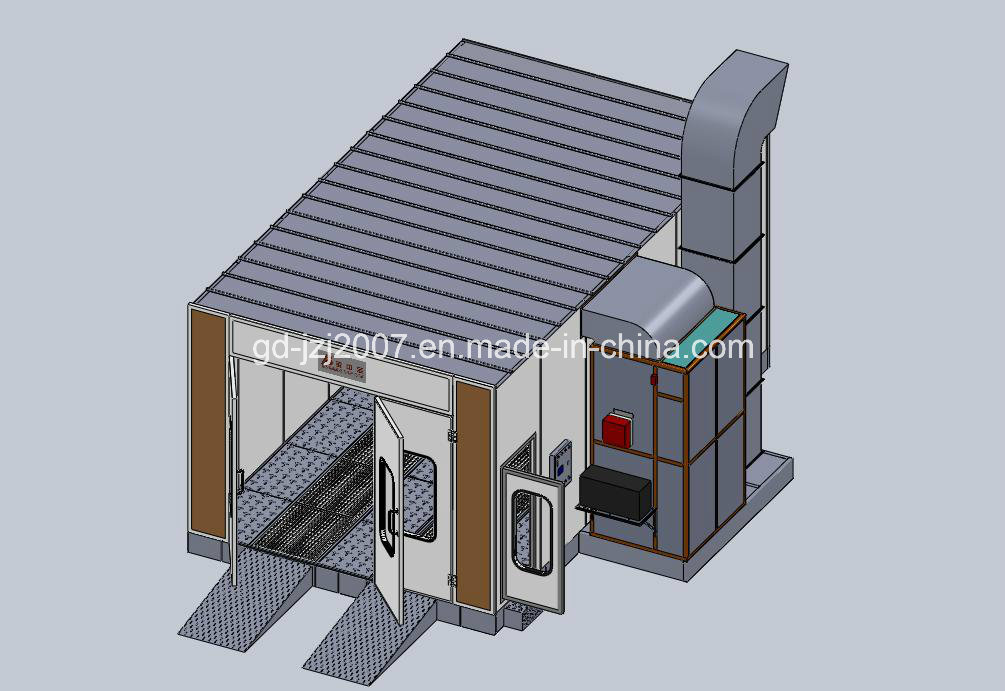

3D drawing

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
