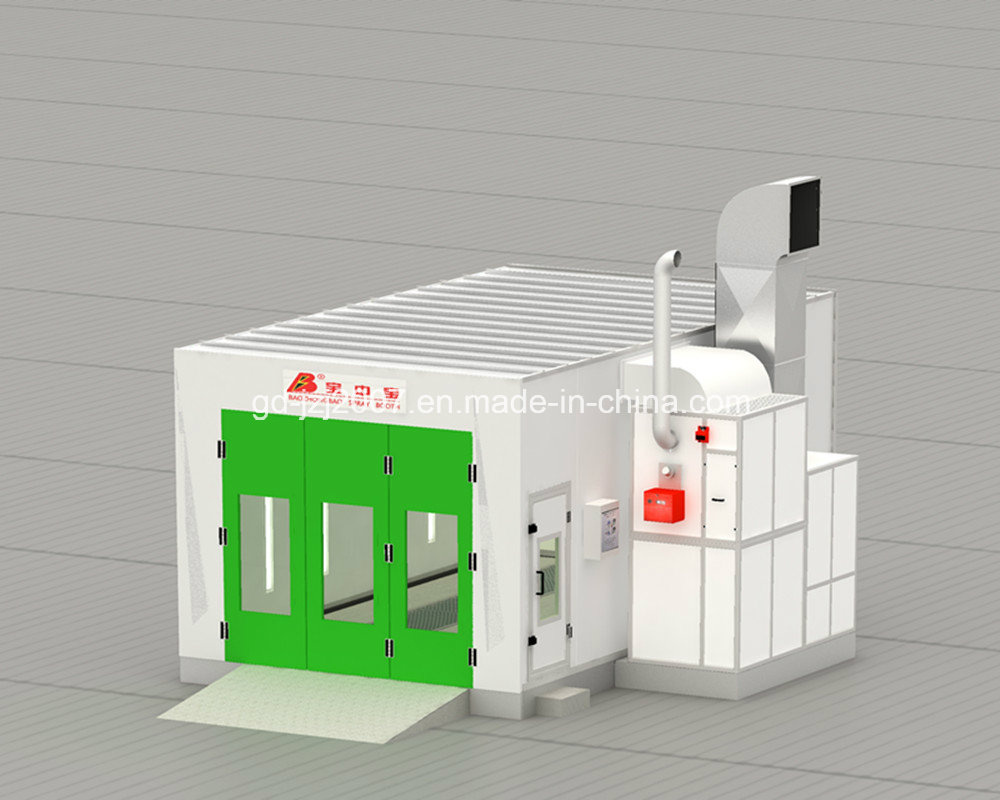

Good Quality Car Spray Booth CE European Design with Germany Technology
| Price: |
US $ 5500-9950/Set |
| Trade Terms: |
others |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
8400 Spray booth 6.9m*4m*2.75mOutside dimension:7000×5550×3470mm(L×W×H);Inside dimension: 6900×4000×2800mm(L×W×H);Front door dimension: 3000×2700mm(W×H);Working door dimension: 800×2000mm(W×H);Cabin system:1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.Roof panel: 0.8mm galvanized sheet;2) Basement: steel structure base; two line grilles, three diamond plates; height is 300mm; three ramps;Air circulation system:
Inhaling
Ventilator
| Model: YDW-4.5L1
Blower Capacity: 24000m3/h
Pressure: 800Pa
Rolling Speed: 900rpm
Power: 4kw
Quantity: 2sets |
Exhaust Ventilator | Model:YDW5.6M
Capacity:21000m3/h
Pressure:800Pa
Velocity:900rpm
Power:7.5KW
Quantity:1Set |

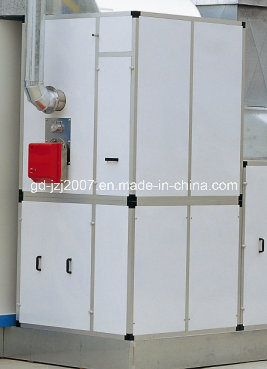

Electric dampers actuate from spraying to baking cycle,equip with electric damper for exhaust air.Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel; Air purification system: G3 grade, Pockets filter Pre-filter, EU5 / F5 high efficiency filter (ceiling filter), green fiber glass filter / G3 grade floor filter; Pocket filter or M green fiber glass filter and active carbon exhaust fan filter.Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; Spray to baking switch: 20N Electrical ActuatorChimney Duct: 4 meters straight ducting and one chimney hoodheating time is 5~7 minutes; Max heating temperature:80degree; Lighting system:≥900LuxCeiling Lights: 8Groupsx4Pcs=32Pcs x36W ;Side lights:8GroupsX2Pcs=16Pcsx36W;Glass: all glass is clear tempered glass.Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;Total power: 17.5KW Improved section pictures:

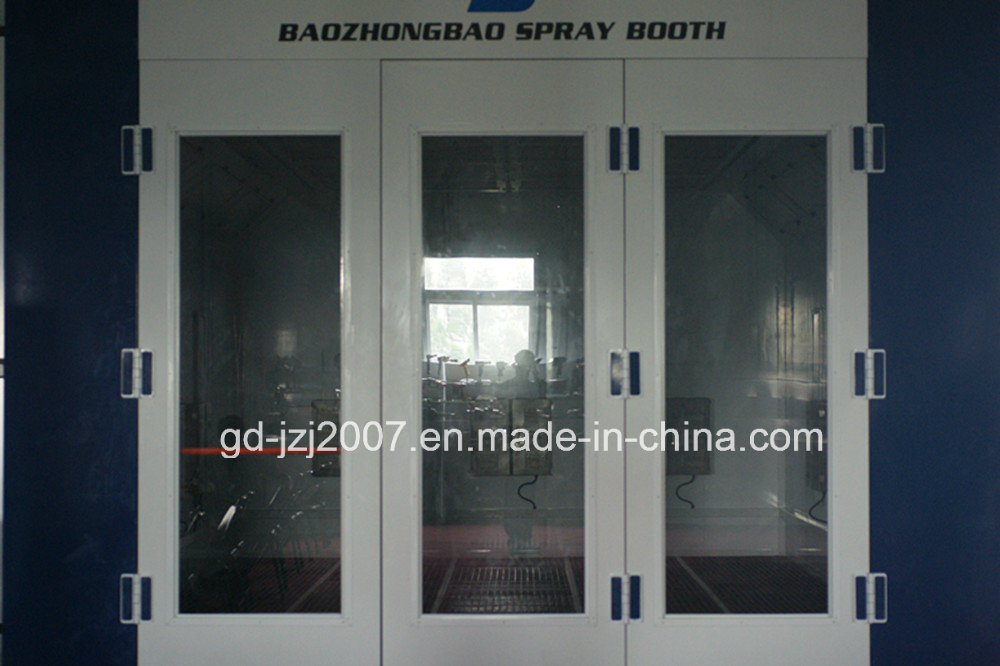

metal sheet front doorExplain:Changed to metal sheet front door, the color sheet using 0.8 galvanized sheet powder coating made, the structure more secure and firm.

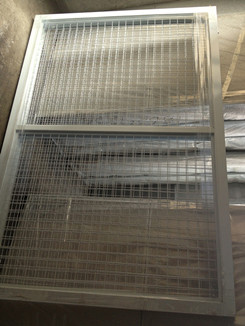

aluminium alloy edge cabinet ceiling filter support mesh
Explain:using galvanized sheet bend Ceiling filter support mesh, more convenient to changehemp flower grid floora) New style aluminum hinge b) New door plug
| Prod Model: |
BZB-8400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Red, Orange, Blue....... |
| Voltage: |
as Require |
| Quality: |
Middle High Level |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
