Good Price Auto Painting Spray Booth

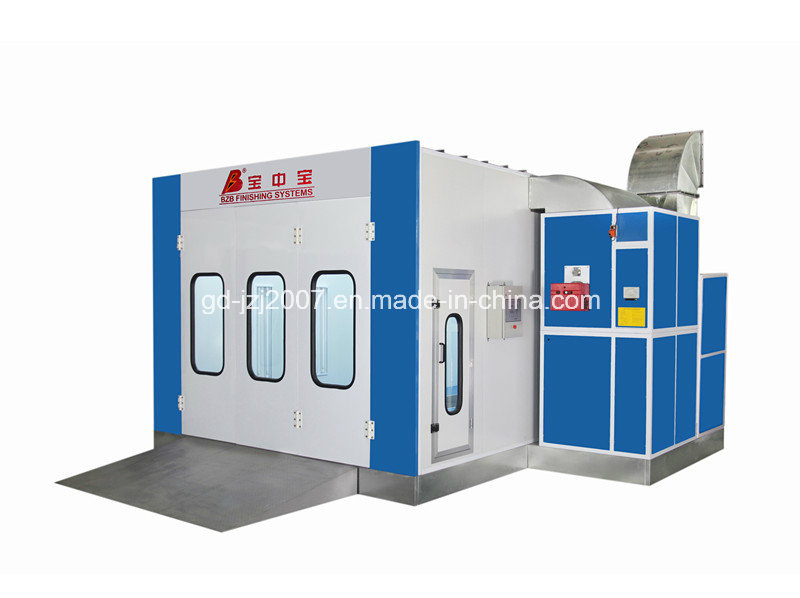

Name: Good Price Auto Painting Spray Booth
Brand: ibuyautoparts.com
SKU: 630897815
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 8820-12150/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

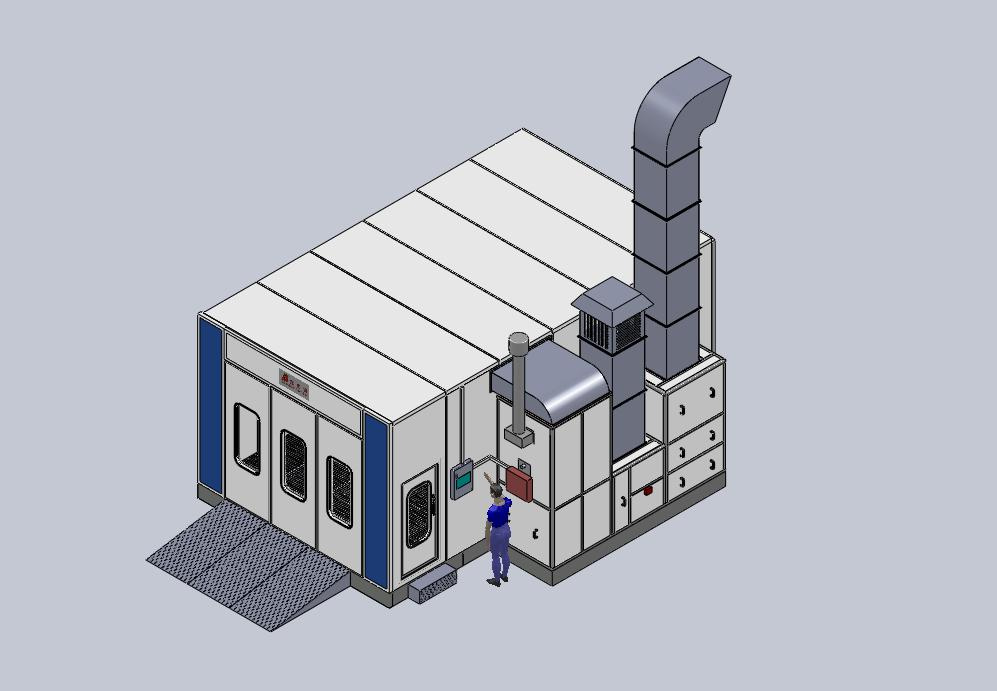

BZB-8500 SPRAY BOOTH

Outside Size:(mm)	7040χ5500χ3450	Front Door:(mm)	3000(w)χ2600(H)
Inside Size:(mm)	6900χ4000χ2650	Total Power:(km)	17.7

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation
	Basement	Full Grid,Adjustable Height,Galvanized Steel Sheet Construction, Three Embossed Steel Ramps
Air Circulation System	Inhaling Ventilator	Model: YDW 4.5L1	Exhaust Ventilator	Model: YDW 5.6M
		Blower capacity: 14000m ³/h		Blower capacity:21000m ³/h
		Pressure: 800Pa		Pressure: 800Pa
		Rolling speed: 940rpm		Rolling speed: 900rpm
		Power: 4kw		Power: 7.5kw
		Quantity: 2 sets		Quantity: 1set
	Air Volume: 28000m 3 /h; Air Speed: 0.4m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5 μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.Air Pressure Gauge, Tsp ≤ 1.4mg/m³
Heating System	Burner	Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
	Heat Energy Converter	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
	Max Temp:80°C, Heating Time:4-5min(20-60 °C ), Fuel Consumption: 4-5kg/vehicle
Light System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux
Electric Controlling System	Micro-Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental System	Multi-Layer Fiberglass Filter

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
