| Prod Model: |
GT1241SZ, GT1241Z |
| Part Number: |
756068-5001s |
| OE Numbe: |
036145701, 36145701 |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Size: |
Standard Size |
| Balancing: |
High Than 150000 Rpm by Schenck Balancing Machine |
| Fuel: |
Gas |
| Delivery Time: |
7-15 Days |
| Warrantly: |
12 Months |
| Engine Type: |
Ea111 |
| Displacment: |
1.0L, 1000 CCM, 16V, 4 Cylinders |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
CE |
Product Description

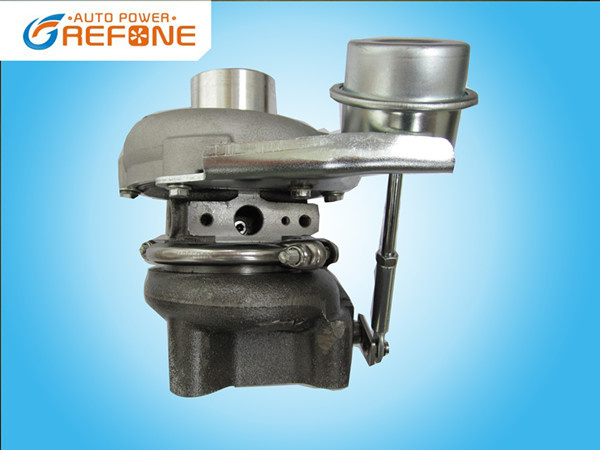

GOL GT1241Z 2001- Volkswagen Parati, Turbocharger 756068-0001
Products Descreption: | Part Number | 756068-5001S |
| Previous Version | 708001-0001, 756068-0001, 708001-1, 756068-1 |
| OE Number | 036145701, 36145701 |
| Year | 2001- |
| Description | Volkswagen Parati, Golf |
| CHRA | 708247-0007 (757864-0001, 708247-0002) |
| Turbo Model | GT1241SZ, GT1241Z |
| Engine Model | EA111 |
| Engine Manufacturer | VW |
| Displacement | 1.0L, 1000 ccm, 16V, 4 Cylinders |
| KW | 82/101/130 HP |
| RPM Max | 5500 |
| Fuel | Gas |
| Angle α (compressor housing) | 276° |
| Angle β (turbine housing) | 201° |
| Bearing Housing | 757865-0001 |
| Turbine Wheel | 703145-0002 |
| Comp. Wheel | 708205-0002 |
| Turbine Housing | 711404-0002/711404-0008 |
| Compressor Cover | 710395-0002/756072-0001 |
| Actuator | 712738-0002 |
| Settings Waste gate (pressure) | 0.455-0.515 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210505 |
| Gasket (turbine outlet) | 210694 |
| Gasket (oil inlet and outlet) | 210382 |
| Manufacturer | Honeywell-Garrett |
Images:
Application:2001- Volkswagen Golf, Parati with EA111 EnginePackage:1. Mold foam
2. Plastic bag
3. Strong Canton Pallet
Please don't worry about package, we promise that our turbocharger reach you intactly.Shipping:1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
Company Introduction:Refone AUTO POWER is committed to delivering the highest standard of quality and safe products and services to our customers.

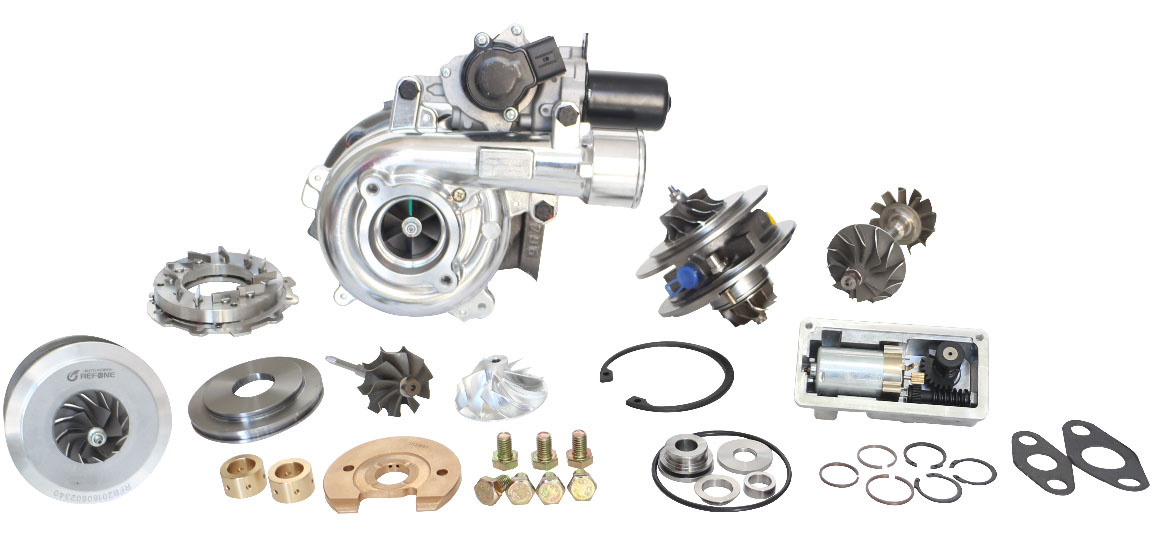

Refone auto power is an outstanding corporation manufacturing and selling all kinds of high quality turbocharger and spare parts, such as Shaft & wheel, Compressor wheel, Cartridge (CHRA), Repair kits, Thrust collar & spacer, Journal bearing, Thrust bearing, Piston ring, Compressor housing, Compressor housing, Bearing housing, Turbine housing, Turbine housing adapter, Back plate (seal plate, insert), Heat shield, Actuator, Oil deflector, V-band, Shaft nut, Gasket and so on.
Advantages:
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Provide customized service.Quality Control:

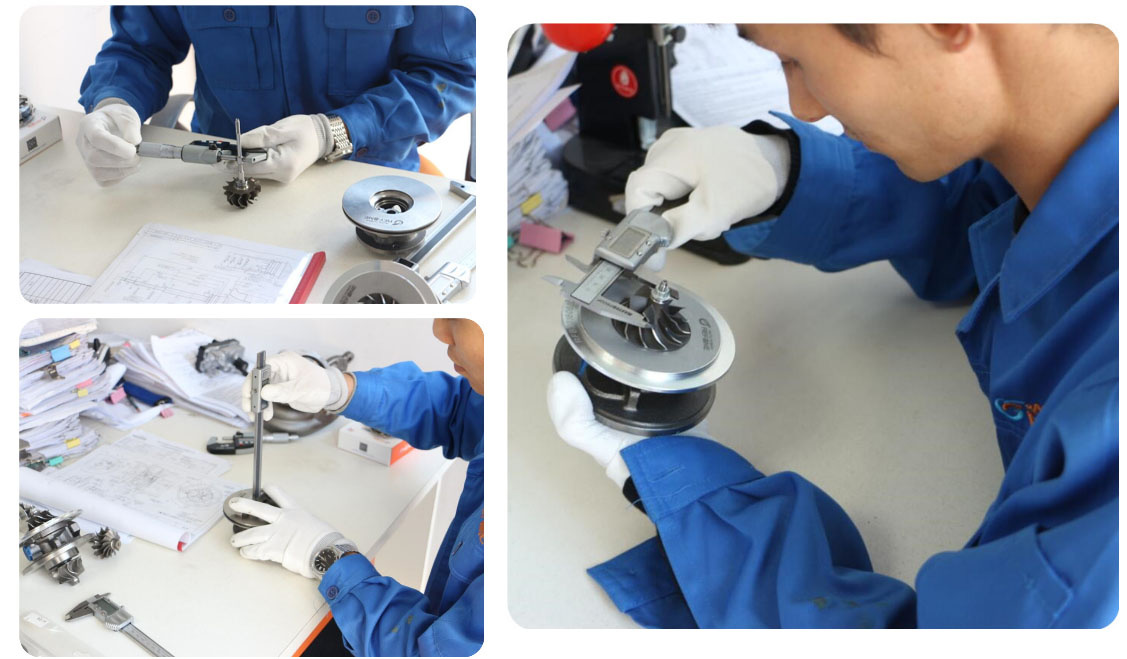

Final Inspection:
After-sales Service:1. Take photos, sending back for testing.
2. Send new turbo to customer.Contact Us:Please feel free to contact us,will reply within 24 hours.
Lisa Li
TEL: +86 551 65617152
FAX: +86 551 65613152
Website: www.cnrefone.com
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
