Gfrnf5f6 Roller Type Freewheel Clutch Bearing
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GFRNF5F6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Gfrnf5f6 Roller Type Freewheel Clutch Bearing |
| Type: |
Roller |
| OEM: |
Accept |
| Package: |
Industrial P[Ackage |
| Market: |
Global |
| Material: |
Steel |
| Certification: |
ISO/TS16949:2002 |
| Stroke: |
4 Stroke |
| Usage: |
Heavy Duty Trucks |
| Part: |
Backstop Clutch |
Product Description

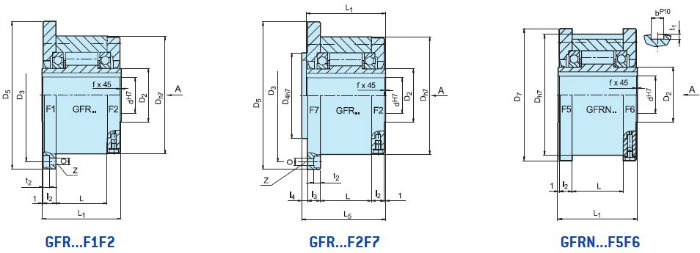

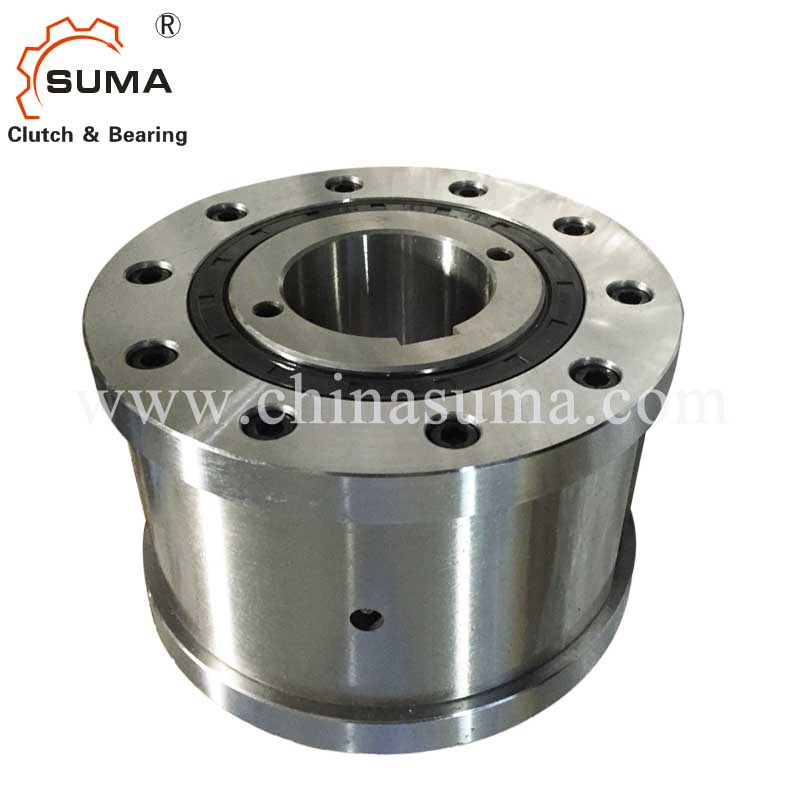

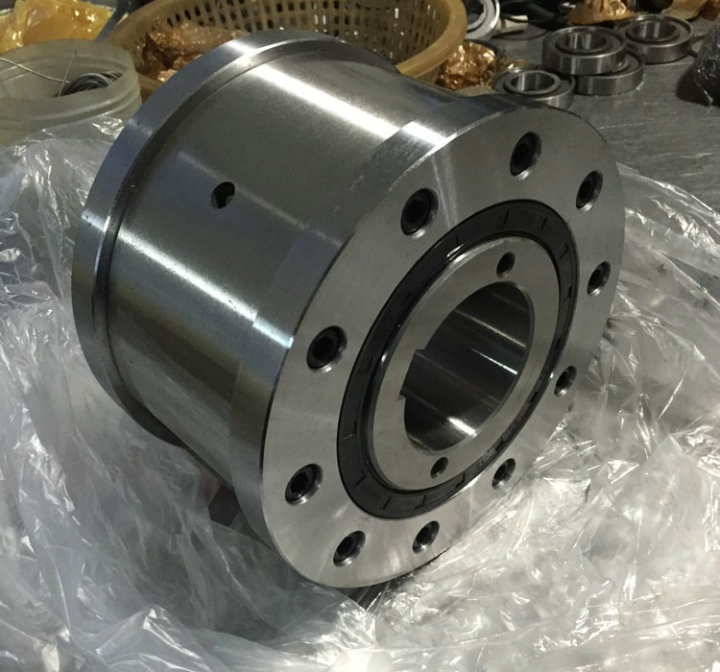

GFRN...F5F6 Roller Type Freewheel Clutch Bearing
Introduction of Gfrnf5f6 Roller Type Freewheel Clutch BearingTypes GFR...F1F2/F2F7 and GFRN...F5F6 are roller type freewheels, self-contained, sealed and bearing supported, using two 160...Series bearings.
They use the GFR, GFRN base modules described on previous pages. Units must be oil lubricated before use if they are delivered disassembled. Primarily used as overrunning or indexing clutches. The cover combination is chosen according to the type of drive, as shown overleaf.
F2 and F6 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.
The shaft seal is a standard lip seal. Covers may be easily assembled by a qualified user, allowing direction of rotation to be selected on site. Alternatively, units can be delivered assembled and lubricated (except GFRN...F5F6).Parameter of Gfrnf5f6 Roller Type Freewheel Clutch Bearing
| Type | Size | | Overrunning speeds | | Number | | keyway outer race | | Weight |
GFR..F1F2.
GFRN..F5F6
GFR..F2F7. | dH7 | TKN1) | nimax2) | namax3) | Dh7 | D5 | D7 | D3 | D4h7 | O | t2 | z | L1 | L5 | L | I2 | I3 | I4 | t1 | bP10 | f | |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] |
| 12 | 55 | 3100 | 4700 | 62 | 85 | 70 | 72 | 42 | 5.5 | 5.7 | 3 | 42 | 44 | 20 | 10 | 10 | 3 | 2.5 | 4 | 0.5 | 1.2 |
| 15 | 125 | 2800 | 4400 | 68 | 92 | 76 | 78 | 47 | 5.5 | 5.7 | 3 | 52 | 54 | 28 | 11 | 11 | 3 | 3 | 5 | 0.8 | 1.6 |
| 20 | 181 | 2400 | 4100 | 75 | 98 | 84 | 85 | 55 | 5.5 | 5.7 | 4 | 57 | 59 | 34 | 10.5 | 10.5 | 3 | 3.5 | 6 | 0.8 | 1.9 |
| 25 | 288 | 1600 | 3800 | 90 | 118 | 99 | 104 | 68 | 6.6 | 6.8 | 4 | 60 | 62 | 35 | 11.5 | 11.5 | 3 | 4 | 8 | 1 | 2.9 |
| 30 | 500 | 1300 | 2800 | 100 | 128 | 109 | 114 | 75 | 6.6 | 6.8 | 6 | 68 | 70 | 43 | 11.5 | 11.5 | 3 | 4 | 8 | 1 | 3.9 |
| 35 | 725 | 1200 | 2600 | 110 | 140 | 119 | 124 | 80 | 6.6 | 6.8 | 6 | 74 | 76 | 45 | 13.5 | 13 | 3.5 | 5 | 10 | 1 | 4.9 |
| 40 | 1025 | 850 | 2300 | 125 | 160 | 135 | 142 | 90 | 9 | 9 | 6 | 86 | 88 | 53 | 15.5 | 15 | 3.5 | 5 | 12 | 1.5 | 7.5 |
| 45 | 1125 | 740 | 2200 | 130 | 165 | 140 | 146 | 95 | 9 | 9 | 8 | 86 | 88 | 53 | 15.5 | 15 | 3.5 | 5.5 | 14 | 1.5 | 7.8 |
| 50 | 2125 | 580 | 1950 | 150 | 185 | 160 | 166 | 110 | 9 | 9 | 8 | 94 | 96 | 64 | 14 | 13 | 4 | 5.5 | 14 | 1.5 | 10.8 |
| 55 | 2625 | 550 | 1800 | 160 | 204 | 170 | 182 | 115 | 11 | 11 | 8 | 104 | 106 | 66 | 18 | 17 | 4 | 6 | 16 | 2 | 14 |
| 60 | 3500 | 530 | 1700 | 170 | 214 | 182 | 192 | 125 | 11 | 11 | 10 | 114 | 116 | 78 | 17 | 16 | 4 | 7 | 18 | 2 | 16.8 |
| 70 | 5750 | 500 | 1600 | 190 | 234 | 202 | 212 | 140 | 11 | 11 | 10 | 134 | 136 | 95 | 18.5 | 17.5 | 4 | 7.5 | 20 | 2.5 | 20.8 |
| 80 | 8500 | 480 | 1500 | 210 | 254 | 222 | 232 | 160 | 11 | 11 | 10 | 144 | 146 | 100 | 21 | 20 | 4 | 9 | 22 | 2.5 | 27 |
| 90 | 14500 | 450 | 1300 | 230 | 278 | 242 | 254 | 180 | 14 | 13 | 10 | 158 | 160 | 115 | 20.5 | 19 | 4.5 | 9 | 25 | 3 | 40 |
| 100 | 20000 | 350 | 1100 | 270 | 335 | 282 | 305 | 210 | 18 | 17.5 | 10 | 182 | 184 | 120 | 30 | 28 | 5 | 10 | 28 | 3 | 67 |
| 130 | 31250 | 250 | 900 | 310 | 380 | 322 | 345 | 240 | 18 | 17.5 | 12 | 212 | 214 | 152 | 29 | 27 | 5 | 11 | 32 | 3 | 94 |
| 150 | 70000 | 200 | 700 | 400 | 485 | 412 | 445 | 310 | 22 | 21.5 | 12 | 246 | 248 | 180 | 32 | 30 | 5 | 12 | 36 | 4 | 187 |
Package
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
