Germany Technology Bus Spray Booth with Ce 18m

Name: Germany Technology Bus Spray Booth with Ce 18m
Brand: ibuyautoparts.com
SKU: 698896745
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	US $ 12150-48500/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-FB-18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

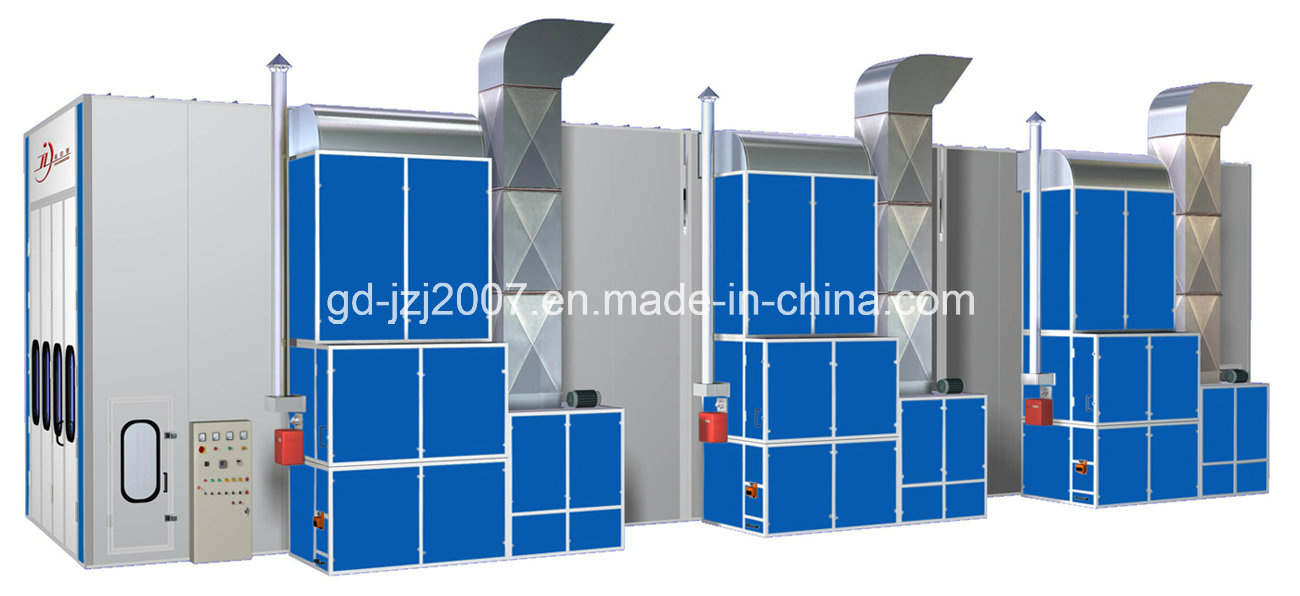

BUS PAINT BOOTH:
SPECIAL DESIGN for high quality required clients;
Ensuring nice ventilation effects and reach a high level of safety requirement;
Design and manufacturing customized paint booth for all types of vehicles.

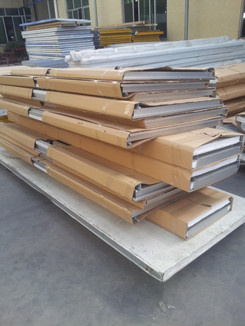

Consistent with international shipping packaging, loaded in containers.

GUANGDONG JINGZHONGJING INDUSTRIAL PAINTING EQUIPMENT CO., LTD
SPECIFICATION
Specs	Outside Size(L× W× H)	18150× 6900× 5800	Construction Specs	Panel Thickness(mm)	75
	Inside Size(L× W× H)	18000× 5000× 5000		Panel Skin Thickness(mm)	0.5
	Door Width(mm)	4000		Panel Material	EPS
	Door Height(mm)	4500		Grid	30*4 Plate Steel
	Air Speed (m/s)	≥ 0.25		Room Construction	Square Steel Pipe & Steel Angle Bar
	Noise(dB)	≤ 85		Filter Support Mesh	Square Steel Pipe
	Total Power (kw)	75		Fan Cabin Material	Square Steel Pipe & Galvanized Steel Sheet
	Max Temp(centi degree)	80	Light Specs	Quantity(pcs)	Ceiling 88
Burner Specs	Burner Model	Baltur BT34		Quantity(pcs)	Bottom 56
	Max Heating(Kcal/h)	340000		Single Power(W)	36
	Oil Consumption(kg/h/set)	15-25		Light Brand	Philips
	Heat Exchanger Material	Stainless Steel		Illuminance(Lux)	≥ 700
	Quantity	3	Exhaust Specs	Exhaust Duct Size(mm)	900× 900
Inlet Fan Specs	Fan Model	YDW-5.6S		Material	Galvanized Steel
	Air Volume(m3/h)	15000		Duct Height	8m
	Single Power(KW)	5.5	Working Platform	Qty	2
	Quantity	6	Colour	Blue
Outlet Fan Specs	Fan Model	4-82-6.3E	Anti-pollution	Dry-Style Processing, Fiberglass
	Air Volume(m4/h)	30000	Anti-pollution	Dry-Style Processing, Fiberglass
	Single Power(KW)	11	Power	380V/50HZ/3PH
	Quantity	3	Power	380V/50HZ/3PH

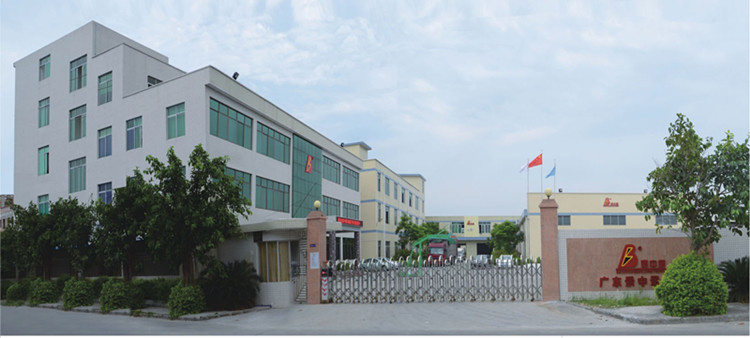

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
