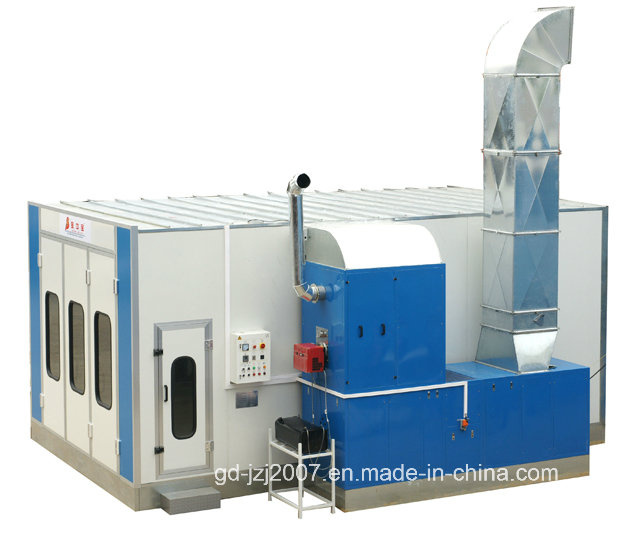

Name: Germany Technogy Paint Spray Booth in China for Sale
Brand: ibuyautoparts.com
SKU: 699510762
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	US $ 3599-9999/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-T8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

BZB T8000

Specification
1) Outside dimension: 7000*5360*3430mm(L*W*H);
2) Inside dimension: 6900*4000*2750mm(L*W*H);
3) Basement: complete zinc steel assemble, height is 280mm,
all grilles; 3 pcs of ramp, support weight: 3tons-4tons;
4) Main door: 3-fold( 3 leaf), 3000*2700 mm (W*H);
5) Wall Panels: thickness is 50 mm, and insulation is EPS panel;0.6mm double skinned sheet;roof panel is galvanized steel sheet construction;
6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;Side Lights: 8Groupsx2Pcs=16Pcs x36W; Philip tube;
7) Glass: all glass is toughened glass;
8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) Intake and exhaust air system:
Intake fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m³/h;
Extract fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m³/h;
10) Heating system: RIELLO G20 diesel burner (one stage), heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle, 20N actuator;
11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, active carbon filter;
12) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter;

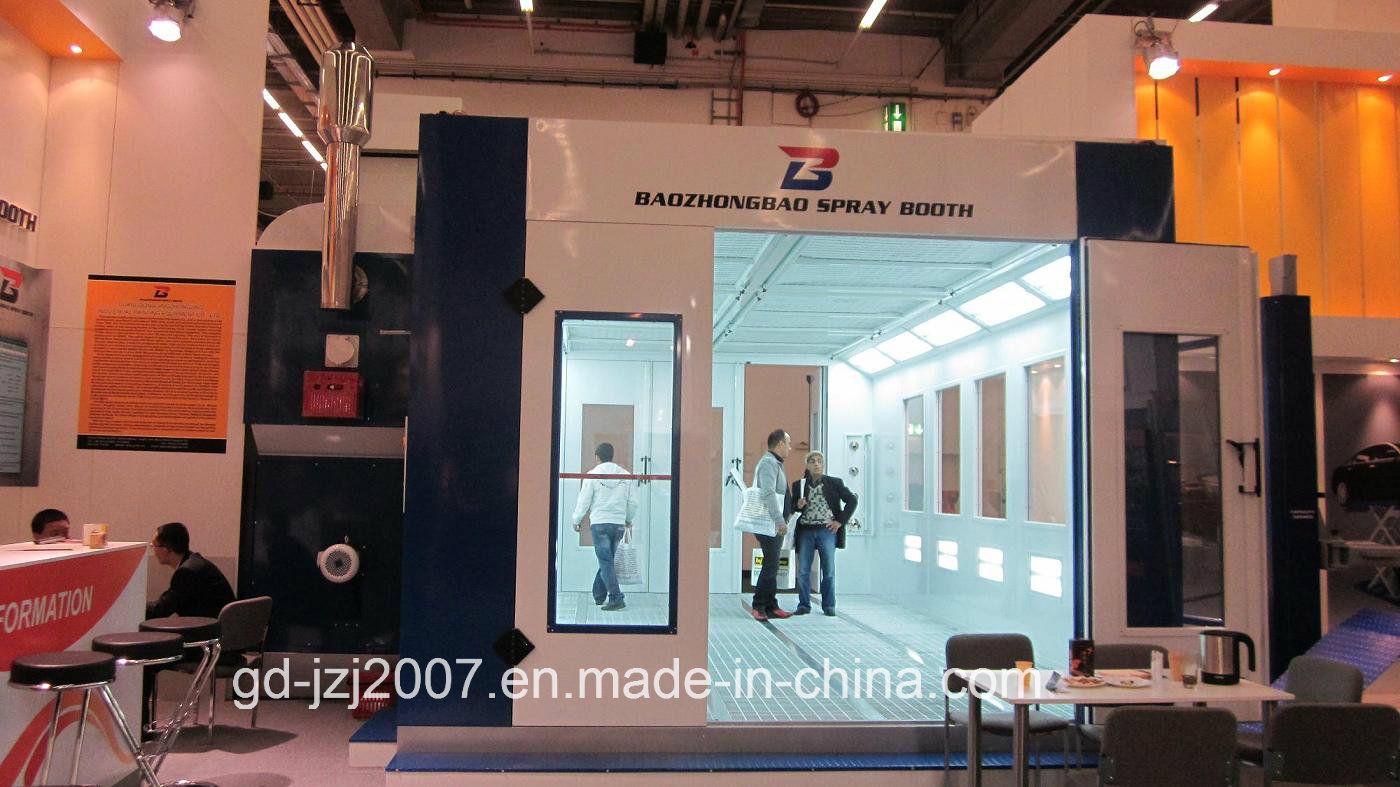

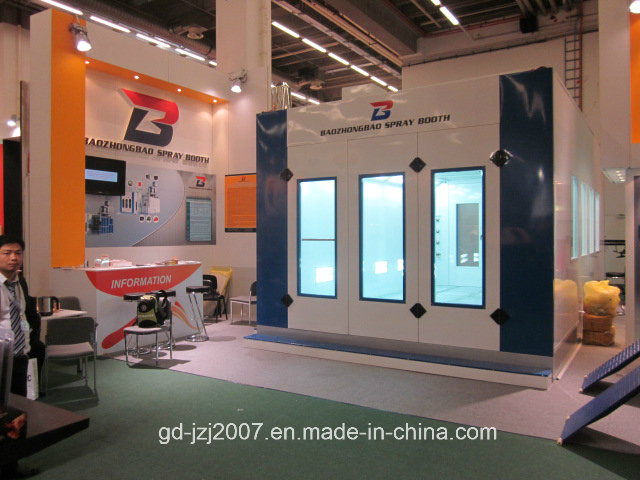

Attached photo (T8000 on Automechanika)

T8000 on Automechanika

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
