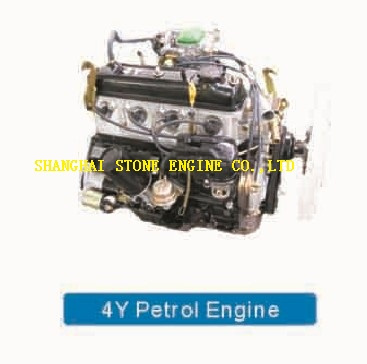

Shanghai STONE DIESEL ENGINE Co., Ltd CAN SUPPLY 2Y 3Y 4Y GASOLINE ENGINE for Toyota. Model Toyota 3Y
Type 4 stroke, water cooling, inline, wedge shape combustion chamber
Cylinders 4
Bore 86 mm
Stroke 86 mm
Displacement 1.988 L
Power / RPM 63 kw / 4, 200-4, 600 rpm
Idle speed 750 50 rpm
Max. Torque/RPM 157 N. M / 2, 800-3, 200 rpm
Fuel supply Carburetor
Fuel RON 90 (GB484)
Min. Fuel consumption 285 g / kw. H
Oil SE 10 W-30 or SE 15 W-40 (GB11121)
Oil consumption 0.8 %
Piston average speed 13.19 m / s
Crankshaft rotation (facing to flywheel) anticlockwise
Compression ratio 8.8
Weight vs. Power 2.4 kg / kw
Average efficient pressure 793 kPa
Power vs. Displacement 31.5 kw / l
Ignition order 1-3-4 -2
Intake in advance 12
Intake in lag 48
Exhaust in advance 54
Exhaust in lag 10
Cooling Centrifugal water pumped cycling
Lubricating Pressed and splashed
Starting Electric starter
Dimensions (L * W * H)mm 710*550*720
Volume per set M3 0.29
Gross weight Kg 174
Net weight Kg 154
Model Toyota 4Y
Type 4 stroke, water cooling, inline, wedge shape combustion chamber
Cylinders 4
Bore 91 mm
Stroke 86 mm
Displacement 2.237 L
Power / RPM 68 kw / 4, 200-4, 600 rpm
Idle speed 750 50 rpm
Max. Torque/RPM 177 N. M / 2, 800-3, 200 rpm
Fuel supply Carburetor
Fuel RON 90 (GB484)
Min. Fuel consumption 295 g / kw. H
Oil consumption 0.8 %
Piston average speed 13.19 m / s
Crankshaft rotation (facing to flywheel) anticlockwise
Compression ratio 8.8
Weight vs. Power 2.25 kg / kw
Average efficient pressure 793 kPa
Power vs. Displacement 30.4 kw / l
Ignition order 1-3-4 -2
Intake in advance 12
Intake in lag 48
Exhaust in advance 54
Exhaust in lag 10
Cooling Centrifugal water pumped cycling
Lubricating Pressed and splashed
Starting Electric starter
Item Specifications and Description
Model Toyota 2Y
Type 4 stroke, water cooling, inline, wedge shape combustion chamber
Cylinders 4
Bore 86 mm
Stroke 78 mm
Displacement 1.812 L
Power / RPM 57 kw / 4, 200-4, 600 rpm
Idle speed 750 50 rpm
Max. Torque/RPM 145 N. M / 2, 800-3, 200 rpm
Fuel supply Carburetor
Fuel RON 90 (GB484)
Min. Fuel consumption 275 g / kw. H
Oil SE 10 W-30 or SE 15 W-40 (GB11121)
Oil consumption 0.8 %
Piston average speed 13.19 m / s
Crankshaft rotation (facing to flywheel) anticlockwise
Compression ratio 8.8
Weight vs. Power 2.7 kg / kw
Average efficient pressure 793 kPa
Power vs. Displacement 28 kw / l
Ignition order 1-3-4 -2
Distributing:
Intake in advance 12
Intake in lag 48
Exhaust in advance 54
Exhaust in lag 10
Cooling Centrifugal water pumped cycling
Lubricating Pressed and splashed
Starting Electric starter
Shanghai STONE DIESEL ENGINE Co., Ltd
Line |
Item |
Specifications and Description |
1 |
Model |
Toyota 4Y |
2 |
Type |
4 stroke, water cooling, inline, wedge shape combustion chamber |
3 |
Cylinders |
4 |
4 |
Bore |
91 mm |
5 |
Stroke |
86 mm |
6 |
Displacement |
2.237 L |
7 |
Power / RPM |
68 kw / 4,200-4,600 rpm |
8 |
Idle speed |
750 ± 50 rpm |
9 |
Max. torque/RPM |
177N.m / 2,800-3,200 rpm |
10 |
Fuel supply |
Carburetor |
11 |
Fuel |
RON 90 (GB484) |
12 |
Min. fuel consumption |
≤ 285 g / kw.h |
13 |
Oil |
SE 10 W-30 or SE 15 W-40 (GB11121) |
14 |
Oil consumption |
≤ 0.8 % |
15 |
Piston average speed |
13.19 m / s |
16 |
Crankshaft rotation (facing to flywheel) |
anticlockwise |
17 |
Compression ratio |
8.8 |
18 |
Weight vs. power |
2.25 kg / kw |
19 |
Average efficient pressure |
793 kPa |
20 |
Power vs. displacement |
30.4 kw / l |
21 |
Ignition order |
1-3-4 -2 |
22 |
Distributing |
Intake in advance |
12 ° |
Intake in lag |
48 ° |
Exhaust in advance |
54 ° |
Exhaust in lag |
10 ° |
23 |
Cooling |
Centrifugal water pumped cycling |
24 |
Lubricating |
Pressed and splashed |
25 |
Starting |
Electric starter |
As a leading manufacturer and supplier in China, Shanghai Stone Diesel Engine Co., Ltd is specialized in complete engine DEUTZ/KHD, CUMMINS, ISUZU and CATERPILLAR. We are also the supplier spare parts. Such as crankshaft, camshaft, con rod, cylinder head, cylinder block, cylinder liner, piston, piston ring, engine valve, engine bearing, oil nozzle, oil seal, oil pump, fuel pump, water pump, turbocharger, and so on.
Our products have exported many countrys.
Shanghai Stone Diesel Engine Co., Ltd supply the China products which are made by joint venture with international engine and engine parts, for example MAHLE IZUMI, Mahle, Elring, Bosch, Payen, Federal-mogul, TP, Holset, S. Valeo, Garrett, Borg-Warner, KKK, ZF, Eaton, Fuller, GKN, Thomson products which made in China under strict quality control and international quality standards.
We aim to be a top class supplier for worldwide OEM and aftermarket!
Hope build good business relationship with all company which is do business in this field.
