| Prod Model: |
ALU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Alumina Ceramic,Fe-Cr-Al Wire |
| Al2O3: |
95% |
| Color: |
White |
| Surface: |
Polished or Glazed |
| Shape: |
Straight,Htype Ect |
| Size: |
Can Be Customized |
| Dia Pin: |
1.5-2.5mm |
| Type: |
Semiconductor Ignition |
| Component: |
Spark Plug |
| Certification: |
CE |
| Burner (',Torch) Path: |
Alumina Ceramic |
Product Description

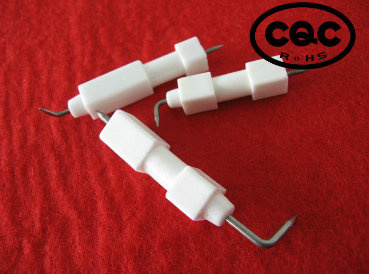

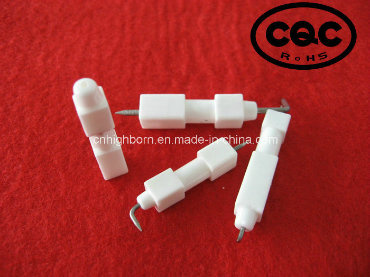

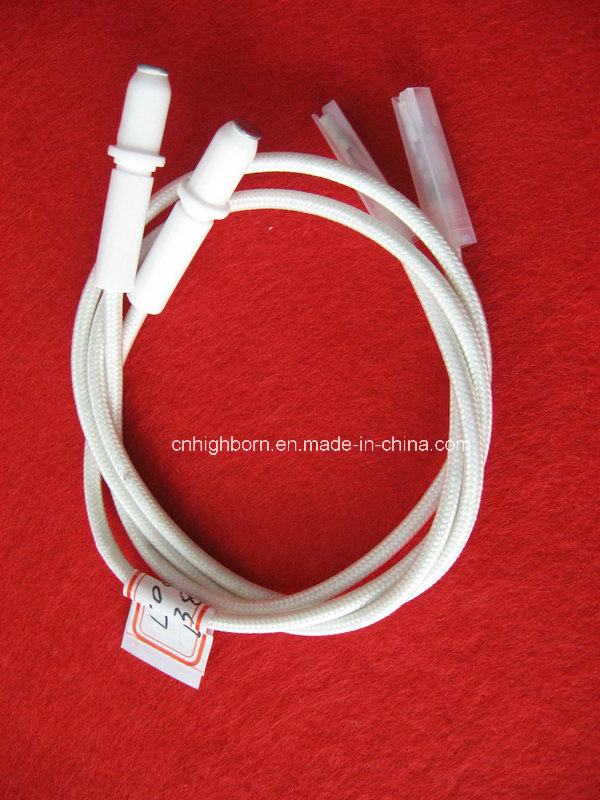

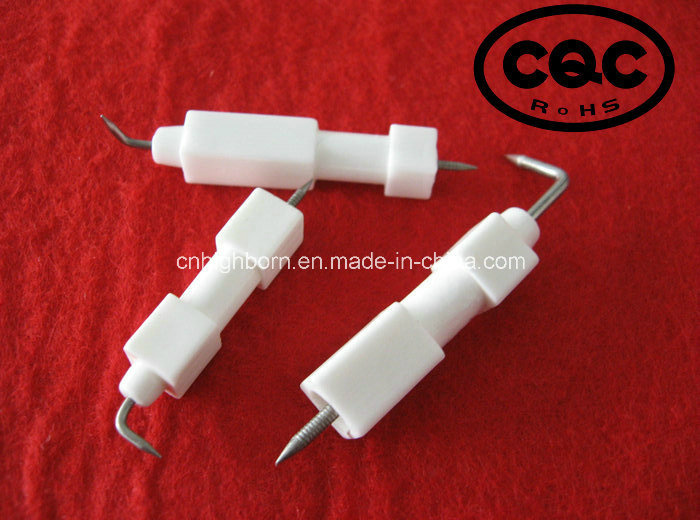

gas cooker stove alumina ceramic ignition electrode
Material: 95% Al2O3 Color: White
5% alumina ceramic as material, electrode use the Ni80Cr20, 0Cr21Al6, KANTHAL D,KANTHAL AMP, YSS-SYTT ETC, it can resist temperature from 1100-1500C.
Features:
1.Anti-heat,corrosion resistance, anti-high voltage,stable electrical property,and high insulation functions.
2.Output voltage: Min. 16 ~25kv
3.Life time (using life)20,000 times.
Specifications:
| Performance For Alumina Ceramic |
| Item | | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
| Water absorption | % | 0 | 0 | 0 |
| Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| Hardness Vickers | Gpa | 12.2 | 13.5 | 15.6 |
| Elastic modulus | Gpa | 280 | 320 | 370 |
| Poisson's ratio | - | 0.22 | 0.23 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 16 | 24 | 32 |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 15 | 5 | 1 |
| Dielectric strength | *106V/m | 12 | 15 | 15 |
Application:
We can offer various series of ignition needles.
The series of ignition needle for push-in type cooker units
The series of ignition needle for fuel gas burner
The series of ignition needle for ordinary cooker unit
The series of ignition needle for gas barbecue oven
The series of ignition needle for fuel gas water heater
Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
COMPANY DETAILS:HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.
Package:
Carton box,then wooden box to avoid the broken.
Payment term :
T.T OR Western Union OR Credit Card
Delviery time:
about 7 days for the stock sample;
about 20 days for the bulk quantity. Our Services
1. Your inquiry will be repied in 24hrs.
2. OEM & ODM or customized lightings is available, Designing service is also OK.
