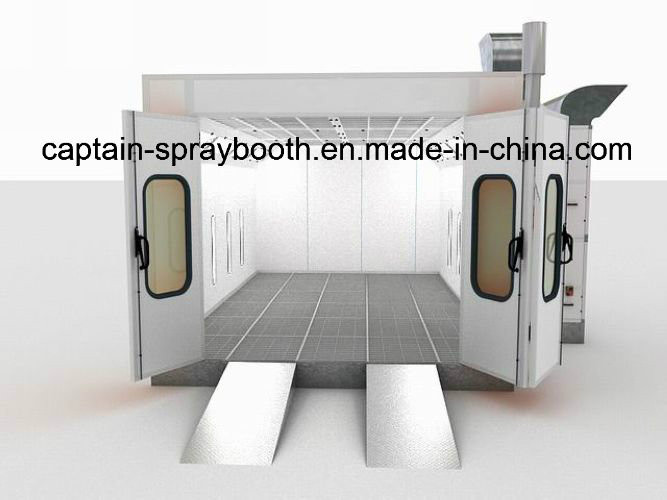

Gas Burner Car Paint Booth/Spray Chamber/Drying Room
| Price: |
US $ 3000-9800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UP1006 GAS A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900×4000×2800 mm(L×w×h) |
| Outside Dimension: |
7050×5500×3500 mm(L×w×h) |
| Front Door: |
4 Folds, 3200×2600 mm(W×h) |
| Emergency Door: |
1 Unit, 650×2000mm(W×h) |
| Basement: |
Galvanized Steel Assemble, 300mm High |
| Wall Panel: |
75mm Rock Wool Panel |
| Light: |
32 Ceiling, 48 Side Lights |
| Heating System: |
Riello Rg5s Diesel Burner, |
| Purification System: |
Pre-Filter, Ceiling Filter, Fiberglass Filter, Act |
| Total Power: |
18kw |
| Certification: |
ISO |
| Airflow Direction: |
Lateral Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Painting |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |
Product Description
Type: Spray Booths
External Size: 7000*5000*3200
Internal Size: 6900*3900*2600
Voltage: 220V/380V
Certification: CE
Place of Origin: Shandong, China (Mainland)
Brand Name: SK Model Number: SK-BZ
Color: Red, blue, white
Heating System: Oil, electricity
Packaging & Delivery
Packaging Detail: Proper packing suitable for container loading.
Delivery Detail: 7days
Specifications
Burner Italy brand
CEapproved car spray booth
High quality and durable use
Auto curing booth
Delivery time within 10 days
We are professional leading factory in China.
Specializing in manufacture kinds of paint spray room system.
And also offering full garage equipments, car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth. Offer car spray baking booth accossories
| Item | Detailed specification |
| Inside dimension |
6900×4000×2800 mm(L×W×H) |
| Outside dimension |
7050×5500×3500 mm(L×W×H) |
| Front door |
Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. |
| Emergency door |
1 unit, 650×2000mm(W×H), color: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel with rock wool inside, color: white. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux |
| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 2×4 KW Double-intake belt centrifugal fan, power: 4 KW, air capacity: 29000m3/h. |
| |
Outlet: 1×7.5 KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| Heating system |
Italy Riello FS20 LPG gas burner, 260000Kcal/h, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. |
| | Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Powder coating filter frame. |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge. |
| Total power | 18.0 KW |
