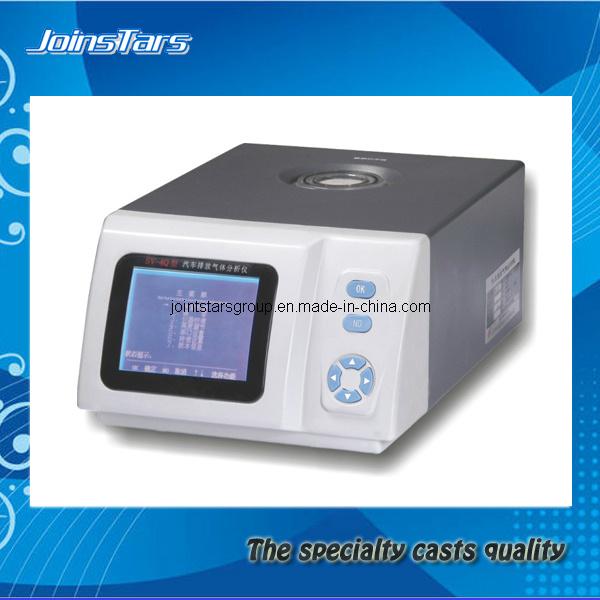

Gas Analyzer and Automotive Inspect for Automotive Repair

1. Major Specifications and Technical Parameters
2.1 Environment Conditions
Temperature: -5~40º C
Humidity: ≤ 95%
Atmosphere pressure: 60~106 kPa
Power supply: AC220V ± 10%; 50Hz ± 1Hz
2.2 Measurement range:
HC: 0~10000 10-6(ppm)vol
CO: 0~10.0 10-2 (%)vol
Speed: 0~10000rpm
Oil temperature: 0~120º C
2.3 Sampling mode: Tail gas: Directly sampling, length of sampling tube is 5m, and length of sampling head is 900mm.
Oil temperature: Inserting the head of thermo scope into the staff gauge of engine lubricant, the length of which is the same as that of oil staff gauge; Blocking with rubber plug to engine oil from ejecting: Length of lead: 5m.
Rotate Speed: Non-contact measurement method. Less than 20cm to the petrolic high-voltage flexible cord, measuring petrolic rotate speed.
2.4 Preheating time: 10 minutes
2.5 Resolution:
CO: 0.01% vol
HC: 1 ppm vol Hexylene Equivalent
Speed: 1rpm
Oil temperature: 0.1º C
2.6 Allowed error: CO: ± 0.06%vol (relative error: ± 10% )
HC: ± 12ppm vol (relative error: ± 10%)
Speed: ± 10rpm (0~10000rpm)
± 1% measurements (>10000rpm)
2.7 Time stability: After preheating, zero excursion and measurement distance excursion in 4 hours should not be over the allowance value of sample value error.
2.8 Repetitiveness: ≤ 1/2 of absolute of the allowed sample value error.
2.9 Output signal: RS232 serial massage exit.
