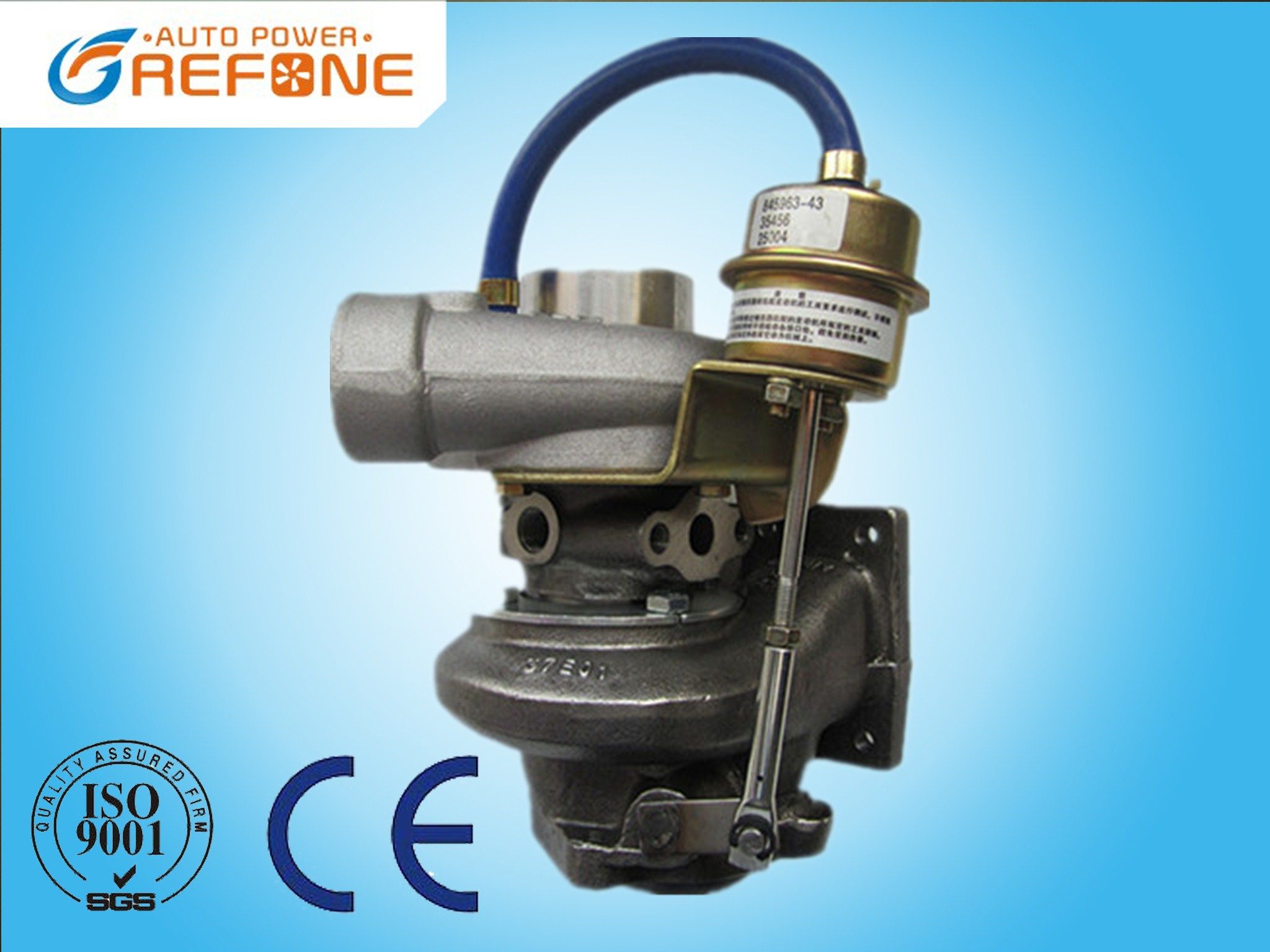

garrett TB2559 452083-5001s turbocharger 8828501 turbine for Saab
Product Description
| Part Number | 452083-5001S |
| Previous Version | 452083-0001, 452083-1 |
| OE Number | 9146051, 30551906, 8828501 |
| Year | 1994-99 |
| Description | Saab 900, 9000 |
| CHRA | 443854-0055 |
| Turbo Model | TB2559 |
| Engine | B202S, B204E |
| Engine Manufacturer | Saab |
| Displacement | 2.0/2.3L, I4 Cylinders, 1985/2290 ccm, 16 valve |
| KW | 150/170/185/200 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 51º |
| Angle β (turbine housing) | 218º |
| Bearing Housing | 444360-0013 Water Cooling Type |
| Turbine Wheel | 435922-0001 |
| Comp. Wheel | 446335-0010 |
| Back plate | 432280-0001 |
| Heat shield Number | 443594-0001 |
| Repair Kit | 709143-0001 |
| Turbine Housing | 413567-0039 |
| Compressor Cover | 409589-0268 |
| Turbine Housing AR | 0.49 |
| Actuator | 432340-0016 |
| Settings Waste gate (pressure) | 0.30-0.34 bar |
| Settings Waste gate (lift rod) | 0.38 mm |
| Gasket (turbine inlet) | 210218 |
| Gasket (oil outlet) | 413709-0001 |
Application
1994-98 Saab 900, 9000 16 valve with B204 Engine
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
GT2256MS | GARRET | 704136-5003S | 8973267520 - 8972083520 - 8973267520 | ISUZU | NPR 2001,Ukrnian BOGDAN 5.6L | 4HG1-T |
| GT2256V | GARRET | 704361-0004/5/6 | 2249950.9 | BMW | 330 D - 6 cyl. - 3.0L - DI D | M57D E46 |
| GT2256V | GARRET | 707114-0001 | 500379251 | IVECO | Daily | 8140.43K.4000 |
| GT2256V | GARRET | 710811-5002S | 55191597/46769104 | ALFA ROMEO | 156/166 JTD 5 Cyl. - 2.4L DI D | 841C.000 |
| GT2256V | GARRET | 710812-0001 | 46767677 | ALFA ROMEO | 166 JTD 2.4L DI D | M722.PT.24 |
| GT2256V | GARRET | 709838-0001 | 6120960399 | M-BENZ | Sprinter 2.7L,2000 | OM612 |
| GT2256V | GARRET | 715910-0001/2 | 6120960599 | M-BENZ | E270 CDI | OM612 |
| GT2256VK | GARRET | 736088-0003 | 6470900280 | M-BENZ | Sprinter 2.7,2004 | OM647 |
| GT2259 | GARRET | 452214-0001 | 9040960799 | M-BENZ | Truck 4.3L,1995 | OM904LA |
| GT2260V | GARRET | 753392-0018 | 7791046F | BMW | X5 3.0D |
|
| GT2260V | GARRET | 725364-0004 | 7789081F | BMW | 530D |
|
| GT2359V | GARRET | 709841-0001/2 | 6130960199 | M-BENZ | E class | OM613 |
| GT25 | GARRET | 708954-0001 |
| SSANGYONG |
|
|
| GT2538C | GARRET | 454193-0001 | 6020960799 | M-BENZ | Sprinter 2.9L,1996 | OM602 |
| GT2538C | GARRET | 454207-0001 | 6020960899 | M-BENZ | Sprinter 2.9L,1997 | OM602 |
| GT2538C | GARRET | 454111-0001 | 6020960199 | M-BENZ | Sprinter 2.9L,1996 | OM602 |
| GT25C | GARRET | 703325-0001 | 82145701 | VW | LT Van | 2.8 |
| GT25V | GARRET | 701900-0002 | 46766388 | LANCIA | KAPPA JTD | 2.4 L / D |
| GT2556V | GARRET | 454191-0003/4/5/6 | 2247691F | BMW | 530D & 730D 3.0L | M57D E38. E39 |
| GT2556V | GARRET | 454191-0008/9/10/11/12/13 | 2247691F | BMW | 530D & 730D - 6 cyl. - 3.0L | M57D E38. E39 |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
