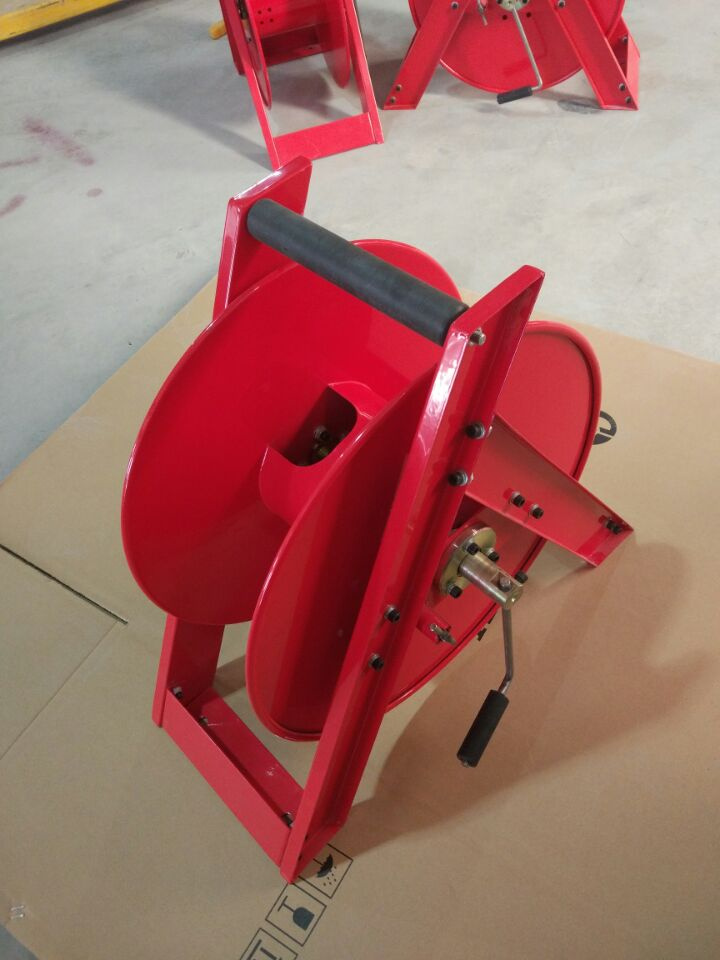

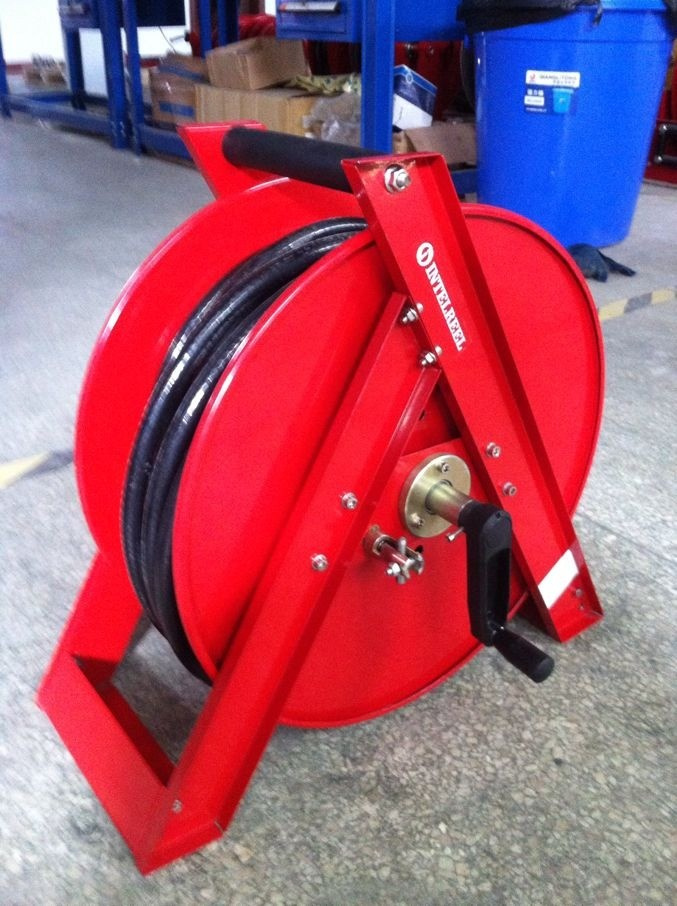

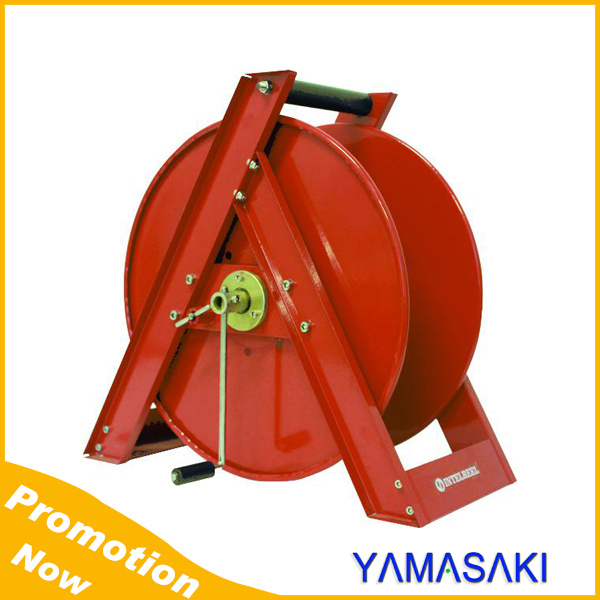

Name: Garden Turf Care Pest Control Steam Cleaning Hand Reels
Brand: ibuyautoparts.com
SKU: 767129995
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 255-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Features of reel
Series 410 reels are economical reel designed for applications
requiring lengths of hose. It is equally suited for plant of field use
such as garden and turf care, pest control, steam cleaning and more.
Fluid path: 1/4", 5/16", 3/8", 1/2",3/4"

The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freeze	2(300)	6 (1/4)	70(229)	1/2"	M22×1.5	-	410020100
Air/Water/Anti-freeze	2(300)	8 (5/16)	50(164)	1/2"	M22×1.5	-	410020200
Air/Water/Anti-freeze	2(300)	10(3/8)	40(131)	1/2"	M22×1.5	-	410020300
Air/Water/Anti-freeze	2(300)	12(1/2)	30(98)	1/2"	M22×1.5	-	410020400
Air/Water/Anti-freeze	2(300)	19(3/4)	20(65)	3/4"	M30×1.5	-	410020600
Oil/Water	19(2780)	6 (1/4)	60(196)	M22×1.5	M22×1.5	-	410190100
Oil/Water	15(2280)	10(3/8)	50(164)	M22×1.5	M22×1.5	-	410150300
Oil/Water	14(2030)	12(1/2)	30(98)	M22×1.5	M22×1.5	-	410140400
Oil/Water	8(1160)	19(3/4)	20(65)	M27×1.5	M30×1.5	-	410080600

Prod Model:	Series 410
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
