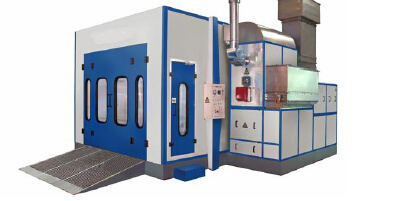

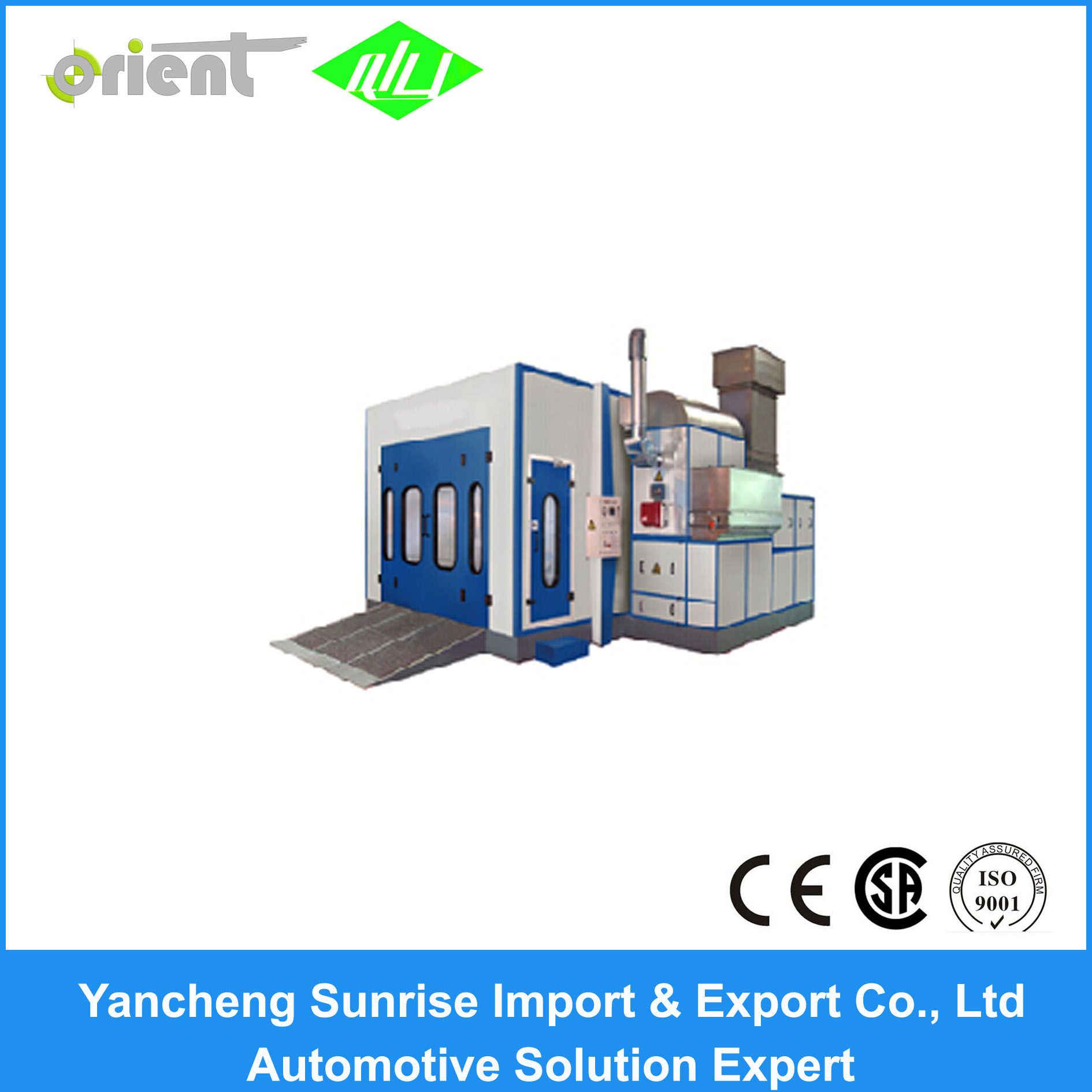

Garage Equipment Spray Booth (C-400A)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
C-400A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Intake Fan: |
2*4kw |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Orient |
Product Description
High Quality of Spray booth C400A
Main Technical Data| Model | C-400A |
| Booth Dimension | Inside: | 7000 x 4000 x 2800mm (L x W x H) mm |
| Outside: | 7000 x 4120 (5670) x 3600mm (Lx W x H)mm |
| Booth System | Entrance Door: | 3-fold main entrance door, 3000 x 2700mm |
| Personnel Door: | one personnel door, 800 x 2000mm (W x H)
with pressure latch and automatic door closer |
| Wall Panels: | Pre-painted steel sheet, double skinned with 60mm thick polystyrene insulation |
| Roof Panels: | Pre-painted steel sheet, double skinned with 45mm thick polystyrene insulation |
| Basement & Floor: | 300mm high raised metal-base, fully arranged grating floor |
| Ramps: | 4 drive in ramps (each 750x2000mm) |
| Lighting System | Ceiling light: | 8 units upper inclined lights, each with 4x36w light tubes. |
| Side light: | 6 units 4x36w vertical side wall lights; |
| Air Makup System | Intake: | 2 double-intake centrifugal fans, air capacity 25000cmh, belt drive, 2x4kw motors, motorized air flow damper |
| Extract: | 1 double-intake centrifugal fan, air capacity 25000cmh,
belt drive, 1x7.5kw motor, motorized air flow damper |
| Structure: | Aluminum frame structure, colored steel plate |
| Heating System | Burner: | Famous Italy brand Riello RG5S oil burner, heating capacity 260000Kcal/h |
| Heat exchanger: | High efficiency Stainless heat exchanger |
| Temperature: | 80 degree working temperature |
| Filter System | 4 sorts of filters: | Pre-filter, ceiling filter, floor paint-stop filter,
extract paint-stop filter |
| Control System | Switched
control box: | Reliable components, digital temperature readout, spray and bake temperature settings, bake timer, spray and bake switch, automatic pressure gauge, hour meter, emergency stop, safety thermostat, failure alarm. |

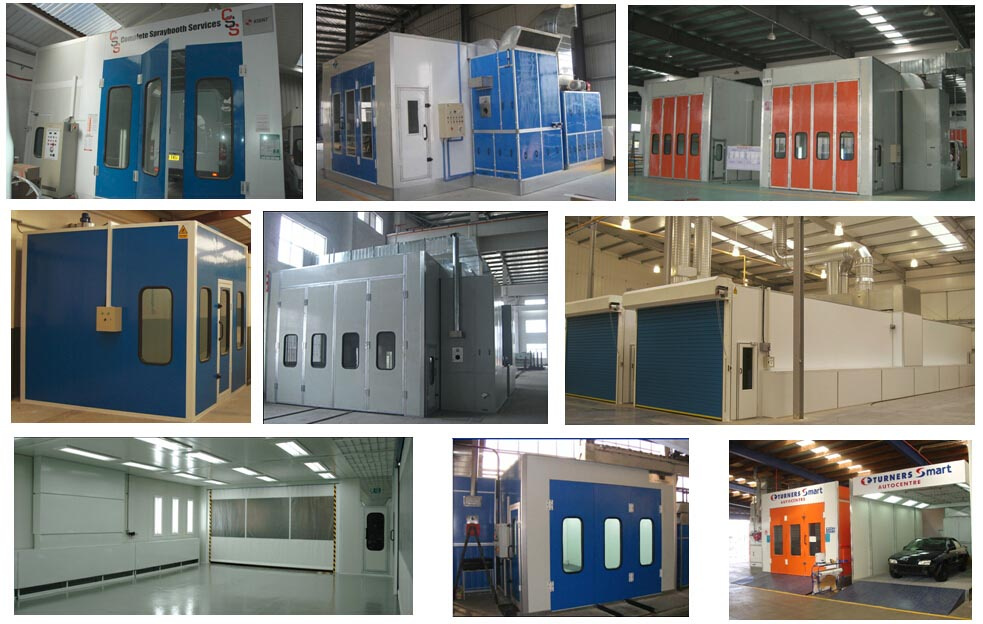

CASES:
Yancheng Sunrise Import & Export Co., Ltd ( here we called "Sunrise")specialized in automotive service equipment and car bodyshop equipments including:
*Spray Booth,
*Tyre Changer,
*Wheel Balancer,
*Car Lift,
*3D Wheel aligner
*Reel Hose
*Shortwave Infrared Curing system
Especially for 3D WHEEL ALIGNMENT, this is our company new research products. Since we promot this product to market. Many clients like them and we exports hudreds ever year.
The success of Sunrise comes from a fully integrated system of concentrated ongoing product R&D, specialized industrial design, standardized manufacturing, strict quality controlling, positive and effective market promotion.
As a pioneer for spray booth business in global market, is synonymous with innovation in spray booth development, providing solutions that deliver energy-savings, higher productivity, enhanced performance and, ultimately, increased profitability for the customers.
We promote "QiLi" brand products for domestic and "Orient" brand for international market, we concern on good reputation of our name, thus we always pay 100% attention to our quality and service.
Sunrise exports most of its product worldwide. Customer bases exist in North America, Europe, Africa, Australia, New Zealand, Asia, the Far East, and Central and South American. We will continue to develop our skill and types to ensure its products meet current and future demands from our customers around the world. We sincerely invite you for any cooperation for win-win business.
