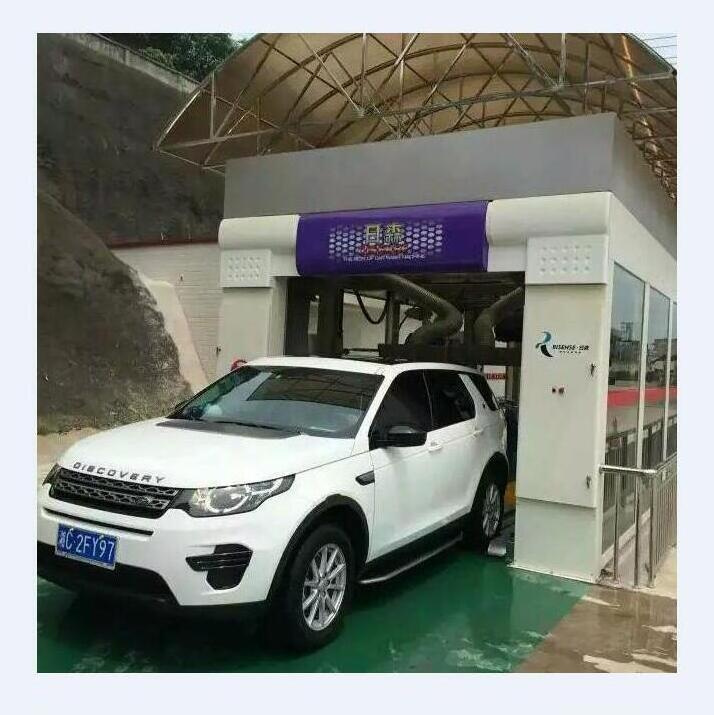

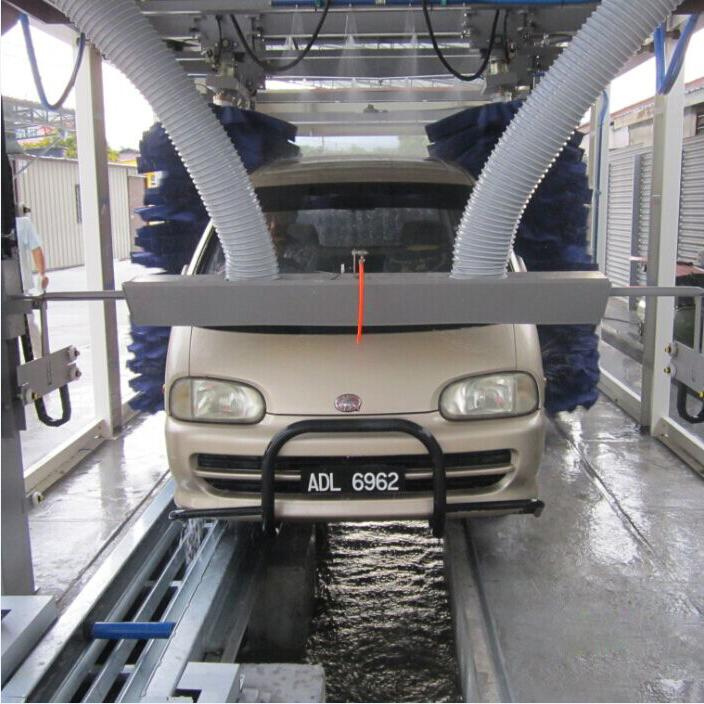

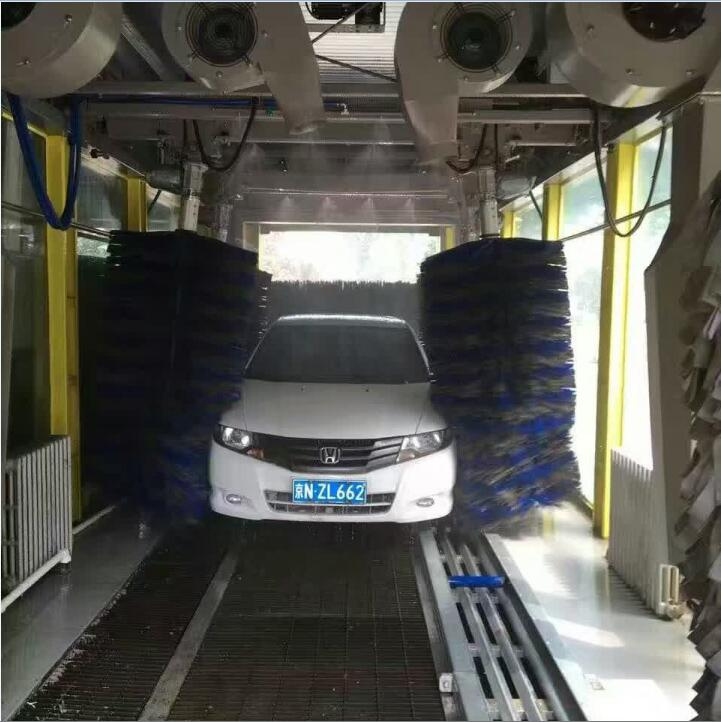

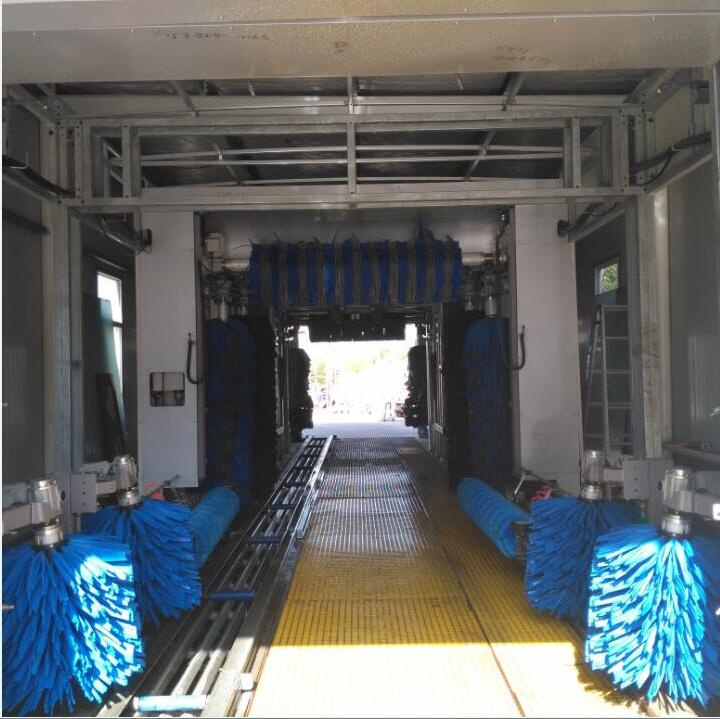

Fully Automatic Tunnel Car Washing Machine System Equipment Steam Machine for CleaningRisense automatic tunnel car wash system is equipped with such advanced technologies as synchronous tire sensor to guide the car into the car wash machine, wheel guild-rail conveyor which can shorten the space, the Japanese second-generation super-soft flannelette brush and foam brush as well as top profiling air-dry. And it also has other features as follows:
1) High pressure water pre-washing
2) Shampoo(foams) sprinkling and wax washing systems
3) Seven to fourteen brushes with foam material and lifelong warranty
4) Three blowers dry the car body completely and precisely
5) Three polishing brushes with chamois leather
6) PLC control system & humanized operate panel
7) Intelligent avoidance system to wash all kinds of car types
8) Main technology and machine design from Japan
9) Electroplated conveyor equipped with the corrector device
10) Hop-dip galvanized steel frame keep the whole machine antirust
11) Motors, electrical apparatus, pumps all imported from abroad
12) With one year warranty and lifelong maintenance service
13) Technician to customer site installation and maintenance training
Specification ..................
Model | CC-695 | CC-693 | CC-690 | CC-670 |
Machine dimension | 17.6x3.8x3.4m | 11.6x3.8x3.4m | 9.5x3.8x3.4m | 8.4x3.8x3.4m |
Conveyor length | 19.2m | 13.2m | 11.2m | 9.9m |
Assembling range | 17.6x3.8m | 13.3x3.8m | 11.2x3.8m | 9.9x3.8m |
Available size for car | 5.3x2.2x.2xm | 5.3x2.2x.2xm | 5.3x2.2x.2xm | 5.3x2.2x.2xm |
Available car to wash | car/jeep/coach within 10 seats | car/jeep/coach within 10 seats | car/jeep/coach within 10 seats | car/jeep/coach within 10 seats |
Main voltage | 380v 3phase 50HZ | 380v 3phase 50HZ | 380v 3phase 50HZ | 380v 3phase 50HZ |
Total power | 40kw | 37.82kw | 37.02kw | 34.02kw |
Water supply | DN25mm water flow rate≥200L/min | DN25mm water flow rate≥200L/min | DN25mm water flow rate≥200L/min | DN25mm water flow rate≥200L/min |
Air pressure | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min |
Water/electricity consumption | 180L/car 0.66kw/car | 150L/car 0.66kw/car | 150L/car 0.66kw/car | 150L/car 0.58kw/car |
Shampoo consumption | 10ml/car | 10ml/car | 8ml/car | 7ml/car |
Water Wax consumption | 12ml/car | 12ml/car | 12ml/car | 12ml/car |
Washing time | 1'12''/car | 1'12''/car | 1'12''/car | 1'12''/car |
Car wash capacity | 40-50cars/hour | 40-50cars/hour | 50-60cars/hour | 50-60cars/hour |
Top brush | 1 set | 1 set | 1 set | 1 set |
Big side brush | 4 set | 4 set | 4 set | 4 set |
Small side brush | 4 set | 4 set | 4 set | 2 set |
Wheel brush | 2 set | 2 set | / | / |
Dry brush | 3 set | / | / | / |
After-Sale Service:
Besides the high quality machines, we also offer you professional after-sale service. These service programs include:
Installation support:
We supervise installation and commission every single unit we provide, on client's requests .Technician can be sent all over the world to set up your installation.
English documents support:
We provide detail English operating manual and maintenance manual for each model of equipment. These manuals include lots of pictures to show the detail procedures for trouble shooting and spare parts replacement. Operating DVD will be provided upon request. All documents are carefully designed and easy for user to fellow.
Life time technical support:
Our experienced customer support team will help you solve technical problems .We guarantee to respond to your inquiry within 24 hours, whether it comes from phone, mail or fax.
Our Service:
Risense Automated Car Wash Machine have a proven, time-tested track record in providing solutions for:
♥ Car wash center ♥ Motor beauty shop
♥ Car service and repair center ♥ Auto 4S shops
♥ Gas station ♥ Parking lot
♥ Hotel and Hospital ♥ Community services center
♥ The construction industry ♥ Industrial wash down
The Car Wash Business is booming right now with low operating expenses and a very pleasing net profit. No matter what happens, it is likely that as long as there are cars, there will always be a need for car washes.
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
