Full Downdraft Steam Heating Spray Booth
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YS-TB18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size: |
18X6X6m |
| Air Draft Way: |
Full Downdraft |
| Air Extraction: |
Via Two Side Wall Extractors |
| Entrance Door: |
5-Fold Door |
| Air Intake System: |
Four Units, 4*7.5kw Belt Driven Motor Fans |
| Air Exhaust System: |
Four Units, 4*7.5kw Belt Driven Motor Fans |
| Heating System: |
Steam Heating&Tdiesel Heating |
| 3-Axis Platform Lifter: |
Moved up and Down, Front and Rear |
| Main Products: |
Spray Booth Prep Station, Infrared Curing Lamp |
| Certification: |
CE |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
Rock Wall |
| Brand: |
Yokistar |
| Coating: |
Strong and Steel Reinforced |
| Airflow Direction: |
Full Downdraft Airflow Way |
| Heating Mode: |
Steam Heating&Tdiesel Heating |
Product Description
YOKISTAR is an industry-leading company that specializes in Custom Industrial Spray Booth systems. They are able to provide a wide range of commercial spray booth applications and are dedicated to providing the most ecologically friendly and energy-efficient painting systems.
Focusing on a combination of product innovation and customer service, Yokistar teams create solutions to ensure their customer's needs are met regardless of their application. They offer a full product line of performance-based industrial paint booths that are packed with premium components.
Yokistar's design team works quickly and efficiently to develop accurate specifications to ensure their customers receive reliable and cost-effective quotes for their project. Because of this, Yokistar has earned the admiration and respect of customers worldwide who rely on them to service their needs.

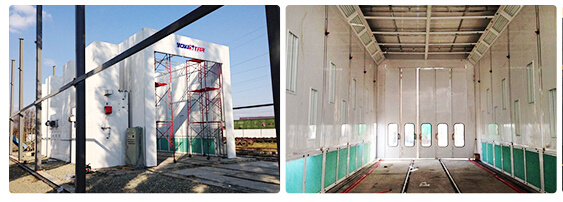

This is another example of the fully customizable spray booths from YOKISTAR. This is an 18M Full Downdraft Steam Heating Spray Booth installed for a client in Russia.
The Downdraft Spray Booths offer the ultimate painting environment for spray finishes that require the highest quality, and offer the most efficient and effective airflow available.
The Yokistar design team has designed a unique system that allows for virtually any size and configuration required to be customized to suit the client's needs. Containing many features that other companies consider as extras, and providing many optional features for energy efficiency, they are state of the art spray booth designs.Key design features included as standard includeInternal size: 18x6x6M
Air draft: This is a Full Downdraft design.
Air Extraction: Air extraction occurs via two side wall extractors.
Entrance Door: The entrance door is a 5-fold door.
Construction: Insulated with Rock Wall, the construction is extremely strong and steel reinforced.
Air Intake System: The air intake system is composed of four units, each unit with a 7.5KW belt driven motor fan, and air capacity is 24000m3/h.
Air Exhaust System: The air intake system is composed of four units, each unit with a 7.5KW belt driven motor fan, and air capacity is 24000m3/h.
Heating System: There are two separate systems:
1. Steam heating - with four individual units making up the heating system.
2. Diesel heating - with four individual Riello RG5S diesel burner units.
Both of the heating systems can be used at the same time during heated spraying.
YOKISTAR provides all spare parts for heat radiation, but the valve for connecting the heating source is provided by the customer.
3-Axis platform lifter: The 3-Axis platform lifter can be moved up and down, front and rear, and can also be extended for painting the entire middle top sections of the work piece.
The best in their class, Yokistar sets the standard for customized industrial and commercial spray booths worldwide. From air flow, temperature control and lighting, to speed, versatility and environmental safety, Yokistar full downdraft booths are designed to meet your most demanding requirements.
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
