| Prod Model: |
Kalux-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Size: |
7000*4000*3100mm(L*W*H) |
| Air Flow: |
Full Downdraft |
| Color Steel Thick: |
0.6mm |
| Fan Type: |
Belt-Drive Fan |
| Air Capacity: |
25000m3/H |
| Air Unit Place: |
Roof of The Auto Painting Booth |
| Main Products: |
Spray Booth Prep Station, Infrared Curing Lamp |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
EPS Insulation Panel |
| Brand: |
Yokistar |
| Coating: |
0.6mm Color Steel |
| Airflow Direction: |
Full Downdraft Airflow Way |
Product Description
When reading this page, you must be looking for a high quality spray booth for those angry cars. Right?
Therefore, a car spray booth real case will be recommended here as a reference for you.

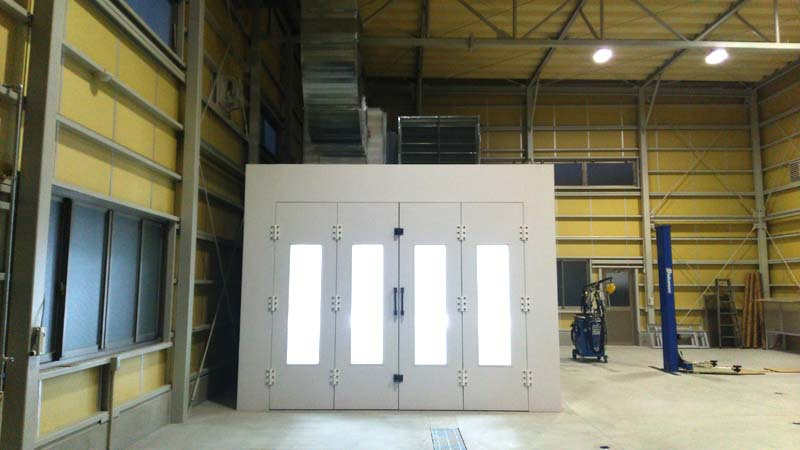

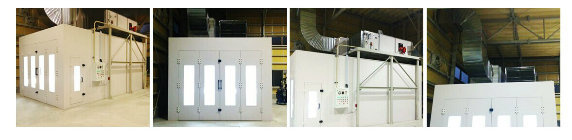

This is a Kalux-B spray booth with some modifications according to the client's situation, where the installation space is limited. All construction works have been finished in an auto repairing shop in Japan in November, 2014. Concentrated on energy conservation as well as environmental protection, aimed at enhancing painting quality and efficiency, the automotive spray booth comes into being as required.
1) The overall size of the paint booth is 7000×4000×3100mm(L×W×H); 2) Full downdraft ventilation is attained by full grilles in the basement unit with 500mm height;
3) 0.6mm thick color steel is covered to strengthen the booth cabin;
4) Belt-drive fans are applied in both intake air units and exhaust air units to create 25000m³/h air capacity;
5) All air units are installed on the roof of the auto painting booth to save more space for client.
Moreover, much more options can be applied in the booth as follows.
1) The original diesel heating in all spray booths can be changed to gas heating, electrical heating, steam heating, hot water heating and so on.
2) The original motor in all spray bake paint booths can be changed to ABB or SIMENS accordingly. Besides, anti-explosion motor and anti-spark fan are optional.
3) The original EPS insulation wall panel can be changed to ROCKWOOL insulation wall panel. This option can keep much more heat energy for model car spray booth.
4) The original full grilles basement extraction can be changed to full grilles pit extraction.
We are very proud to share the comments of this spray booth from our client to you.
" Recent installation was completed, and it was so successful owing to your good quality. We do appreciate your good work so much."
YOKISTAR keeps growing all the way.
We are always ready to offer paint booth solution for different painting applications.
Please contact YOKISTAR team for free to build your workshop
