Full Downdraft Furniture Spray Paint Booth in UAE
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Industrial Paint Booth |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Size: |
8000*4000*3200mm(L*W*H) |
| Out Size: |
9650*4100*4000mm(L*W*H) |
| Ventilation Design: |
Full Downdraft Airflow Way |
| Basement Arrangement: |
3 Rolls of Grilles and 2 Golls of Indented Plates |
| Main Doors: |
2 Units Equipped in Front and Right Sides |
| Ceiling Light Fixtures: |
10units |
| Side Light Fixtures: |
12units |
| Air Capacity: |
25000m3/H |
| Fan Type: |
7.5kw Turbo Fan |
| Main Products: |
Spray Booth Prep Station, Infrared Curing Lamp |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
EPS Insulation Panel |
| Brand: |
Yokistar |
| Coating: |
0.326mm Color Steel |
| Airflow Direction: |
Full Downdraft Airflow Way |
Product Description
Are you a manufacturer of wood working? Do you feel upset for the wood finishing? Are you seeking for a painting booth contributing to an efficient painting operation?
If all your answers are "YES", please do not hesitate to stop here and learn about this furniture spray booth case. Your wood finishing workshop idea would be much clearer and more concrete after your knowledge of this real case.

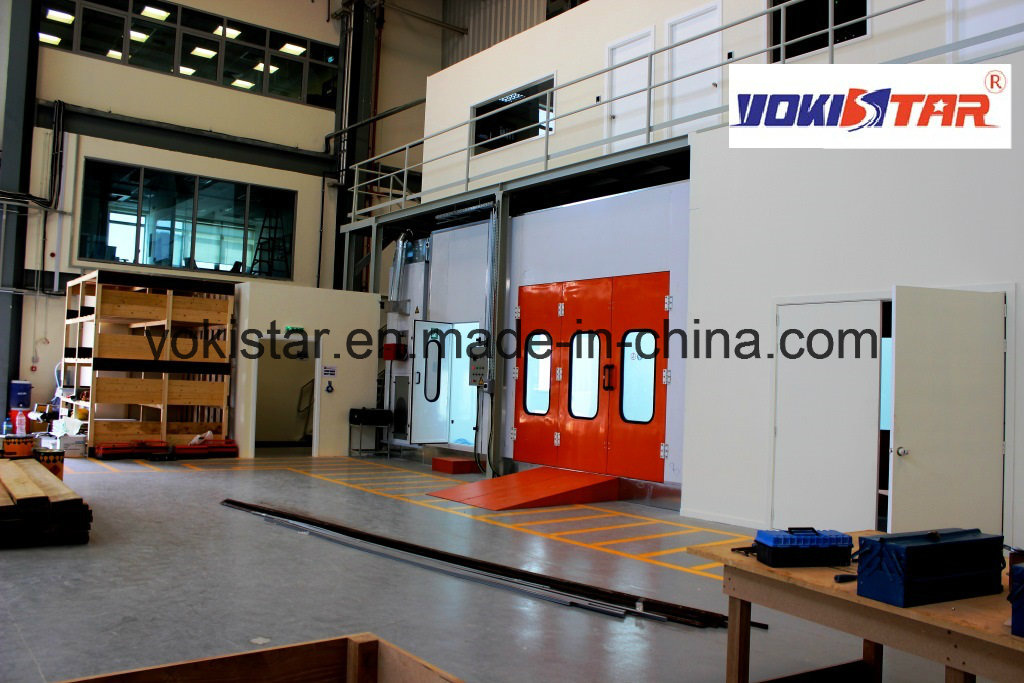

It is a specially custom-design spray booth for wood working and furniture painting with comprehensive consideration of furniture painting features, factory condition and output per month. All paint booth installation and workshop construction were finished at the end of 2014; this furniture spray bake booth has come into service in a furniture factory in UAE at the beginning of 2015.Here is a simple specification introduction of this economic spray painting booth for woodworking."1. Dimension of this paint booth is 8000x4000x3200mm(LxWxH) inside and 9650x4100x4000mm(LxWxH) outside; the size is decided according to the factory painting quantity and its factory space consideration.

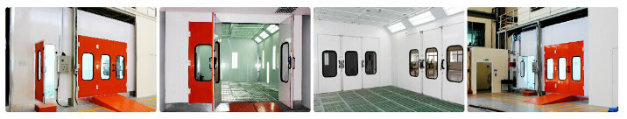

2. Spray booth ventilation design is full downdraft airflow with metal basement of 3 rolls of grilles and 2 rolls of indented plates.
3. 2 units of main doors are equipped in front side and right side. This design ensures furniture entry from one main door and exit from another main door, which increase painting work efficiency dramatically.
4. 10 units of ceiling light fixtures and 12 units if side light fixtures in this wood finishing booth make the illumination more than 1000LUX.
5. 25000m³/h air capacity is reached for the 7.5KW turbo fan specification of both air intake and exhaust units. Turbo fan is with stable performance and easy maintenance."YOKISTAR is a custom paint booth specialist; please do not worry if your situation is a little different.
Size of the paint spray booth can be customized according to your painting quantity. The original full grilles basement extraction can be change to pit extraction or side wall extraction. The original diesel heating can be changed to infrared curing lamp heating or other cost-effective heating way at your local place. This dry-filter type can be changed to wet-filter type with water curtain spray booth for painting, which is widely used in wood industry.
All YOKISTAR enthusiastic sales and professional engineers are ready to serve you.
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
