Full Downdraft Clean Drying Paint Room with Ce Certificate

Prod Model:	YS-70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ventilation:	Full Downdraft Airflow Way
Air Intake:	2X4kw Double-Intake Centrifugal Fans
Air Exhaust:	1X7.5kw Double-Intake Centrifugal Fan
Heating:	Riello Rl28 Diesel Burner
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Optional Colour:	White, Blue, Orange and Red
Port:	Huangpu Port or by Your Order
Main Product:	Spray Booth, Prep Station, Infrared Curing System
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Downdraft Clean Room
Substrate:	EPS Insulation Panel
Brand:	Yokistar
Coating:	Painting & Powder Coating
Airflow Direction:	Full Downdraft Airflow Way

Product Description

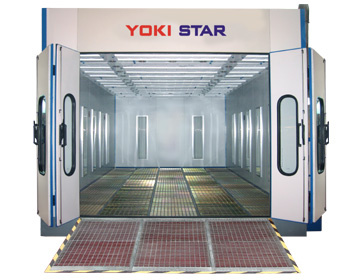

Down Draft Spray Booth Is a Car Paint Spray Booth with Waterborne Auto Paint System
Model: YS-70
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
With waterborne paint system

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

The purpose of YOKISTAR spray booth is achieving the fastest drying time, the lowest operation costs and as little environment impact as possible.
In order to promote the efficiency of the workshop and enlarge the profits for our customer, Yokistar spray booth has following advantages:

1. Ventilation
Yokistar spray booth is designed with several ventilation systems to guarantee the best painting conditions. All the filter system and air exhaust underneath create a vertical efficient air flow that is distributed evenly inside the booth and allows overspray to be removed immediately at all space around the vehicle.

2. Air recirculation on bake cycle
100% of the air handled by the fan is put into YOKISTAR spray booth during the bake cycle and only 15%-20% is expelled outside from there, while the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.

Even temperature distribution in all points around the vehicle being painted rapid reaching of bake temperature and consequent reduction of bake times high energy savings due to recovery of most of the heat produced for the bake cycle

3. Lighting
The illumination is provided by four-tube, 36-watt light fixtures in the angled ceiling panels and side walls. They are sealed with 0.5mm clear and tempered safety glass. Correct lighting in YOKISTAR spray booth should be required for the good conditions for the painter.


4. Filters
The filtering is composed of high-efficiency heat, dust, paint resistant micro filters. The large surface covered and their progressive density guarantee high dust retention capacity and low resistance to the air passage. The long life of these filters considerably reduces frequency of replacement, contributing to reductions in running costs.

Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

	YS-70
	Luxurious spray booth
Room body	CE shape room body
Wall panel	50mm, EPS wall panel
Main door	Folding main door, 4 folds, 3200×2600 mm(W×H), made by bending steel without cover frame, colour : blue. Escape door:1 unit,800×2000 mm(W×H),colour:white.
Basement	Galvanized steel assemble, 350mm high, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 3 ramps, external setting, 900×2500mm/pc.
Intake air system	2×4KW double-intake centrifugal fans for intake air, motor outside, belt- drive, air capacity for each fan: 30000m3/h
Exhaust air system	1×7.5KW double-intake centrifugal fan for exhaust air, motor outside, belt drive, air capacity: 25000m3/h.
Damper actuates	electric damper actuates from spraying to baking cycle,electric damper for exhaust air
Heating system	RIELLO RL28diesel burner, stainless steel heat exchanger, max heating productivity: 28000kcal/h.
Filter system	Pre-filter,ceiling filter,fibreglass filter,activated carbon filter
Lighting system	Ceiling lights: 10Units×4Pcs=40Pcs×36W, with electronic ballasts.
	Side lights: 8Units×4Pcs=32Pcs×36W,with electronic ballasts.
Control system	Power supply switch,emergency stop,fire proof valve,PLC combined with HMI control,equip inveter for motors
Total power	24.6KW
Note	This model has waterborne paint system
