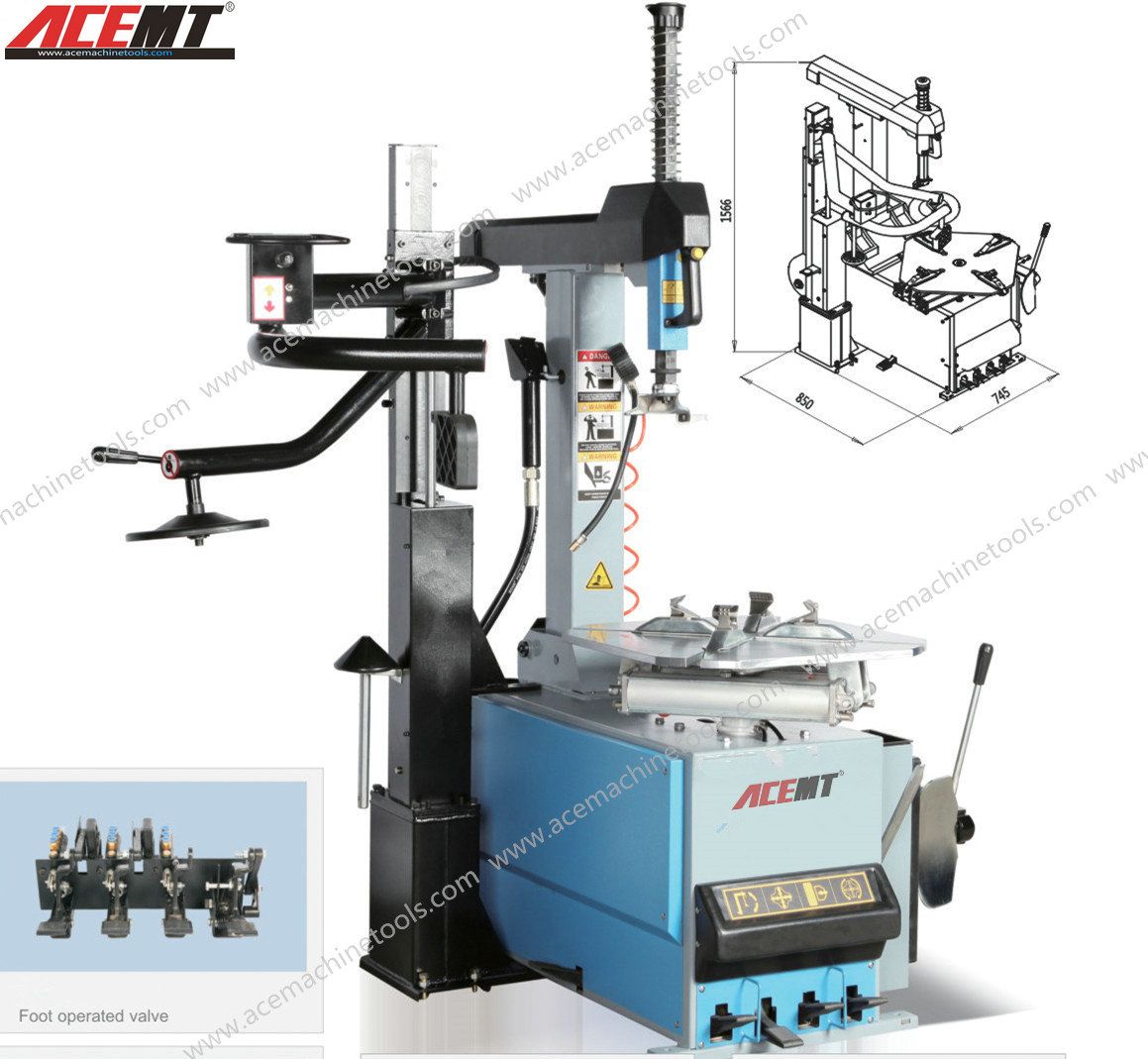

Full Automatic Tyre Changer (ACET2422AC+HR360)

Name: Full Automatic Tyre Changer (ACET2422AC+HR360)
Brand: ibuyautoparts.com
SKU: 782391605
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 5000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

FEATURES:
Tilting column and pneumatic locking mount & demount arm.
Six-axis oriented tube extends to 270mm can prevent effectively deformation if six-aixs.
Foot valve fine structure can be demounting as a whole,operation stably and reliably,and easy maintenance;
Special steel mount &demount head,super hardness,reduce the frictions as well as corrosion.
Grip jaw adopted U.S.8640 alloy steel,high strength, wear resistant and antirust .
Adjustable clamps can extend the scope of the changing from 8"to 26".
Equipped With the external air tank jet-blast device, controlled by auinque foot valve and hand-held pneumatic device.
With power assist arm for handing wide,low-profile and stiff tyres.

TECHNICAL SPECIFICATION:

Motor Power	1.1kw/0.75kw
Power Supply	110v/220v/240v/380v/415v
Max. Wheel Diameter	44"/1120mm
Max. Wheel Width	14"/360mm
Outside Clamping	10"-21"
Inside Clamping	12"-24"
Air Requirement	8-10bar
Rotation Speed	6rpm
Bead breaker force	2500kg
Noise level	<70dB
Weight	258kg
Package size	1180980980mm.
Package size	13301080300mm
Quick inflation device	Included

Prod Model:	ACET2422AC+HR360
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Power:	1.1kw/0.75kw
Power Supply:	110V/220V/240V/380V/415V
Max. Wheel Diameter:	44"/1120mm
Certification:	CE
Condition:	New

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
