Full Automatic Rim Straightening Machine/Grind Machine/Tire Rim Grind Machine

Name: Full Automatic Rim Straightening Machine/Grind Machine/Tire Rim Grind Machine
Brand: ibuyautoparts.com
SKU: 814302845
Availability: InStock
Rating: 4.7 (64 reviews)

Price:	US $ 2400-2600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

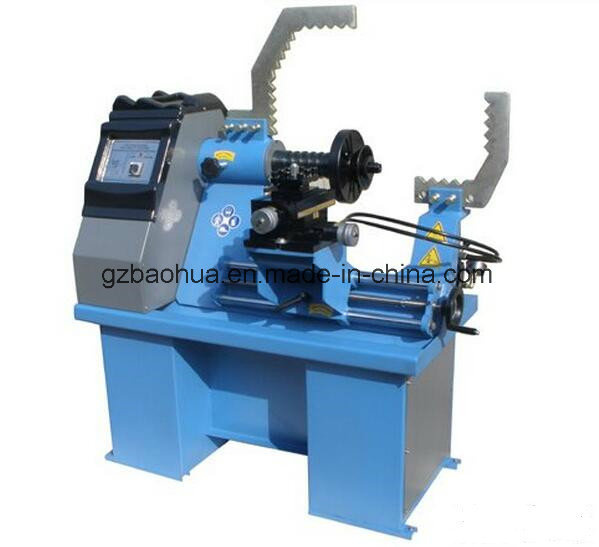

Full automatic Rim straightening machine/grind machine

Features:
The model BR- 95 is designed and manufactured to repair by straightening all kind of steel,aluminum and alloy wheels with range diameter between 10'-26' The system uses an easy to handle piston controlled by an hydraulic unit that,conveniently positioned,pushes on the damaged part of the rim taking it back to the original shape.Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean toothed different rim profiles.After the wheel straightening operation,BR-95 moreover is equipped with a lathe unit that allows to remove dents on the edges.

Specification

DIMENSIONS	Specification
Height	1250 mm
Width	1110 mm
Length	900 mm
Machining capacity	10'-26'
Rotation	110 rpm
Hydraulic motor	1.1kw ,1400rpm,220V or 380 V
Mechanical motor	Mechanic 0,75 kw, 220V or 380 V
Working pressure	140 bar
Gross/Net Weight	350/330kg

Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5tons of total pressure while working on our BR -95 rim straightening machine.

Prod Model:	BR-95
Rim Grind Machine:	10"-26"(660mm)
Type Of Rim:	It Repair Alloy/Chrome/Iron Rim
Function:	Pull Bending Rim to Be Straight and Cut Rim
Power Supply:	380V 3phase, 220V/110V 1phase
Hydraulic Motor:	Power:0.75kw,Speed:1400rpm
Mechanical Motor:	Power 1.1kw,Speed:1400rpm
Noise:	75dB
Color:	Red/Blue(Please Choose)
