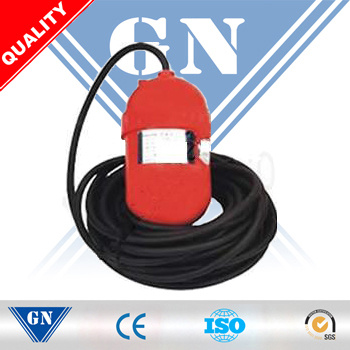

Fuel Level Switch

fuel level switch

Application
1,Hydropower industry: the set of wells ,water wells ,roof drainage ,living water tower ,storage tank ,forebay water level control and alarm
2,Drain industry : mixture pool of water plant ,sand filter tank ,settling tank ,water intake ,storage tank ,water tower's level control and alarm
3,Wastewater treatment plant's digester primary sedimentation tank ,balance tank , cesspool ,exposed gas tank ,grille bar pollution

Main parameters

Working voltage	250V~380V
Working current	10(8A)~10(4A)
Working temperature	0~80ºC
Power life	1×100000 times
Machine life	5×100000 times
Cable length	3m 4m 5m 10m etc.. And can customize according to requests

Installation

1.Use the black and blue wire .
When the float is on the level surface , the contact is under the obstructed status , when the float is under the water ,the contact is turn-on status .
2.Use the black and yellow wire .
When the float is on the level surface , the contact is turn-on status ,when the is under the water ,the contact is the obstructed status
3.Installation of fixed hammer

The level control height is decided by the cable length of cable float level switch and the position of the hammer .
1.Displace snap ring of the plastic non-cone terminal ,and set to the appropriate place on the cable .
2.Then let the cable penetrate the terminal of the plastic cone , the snap ring set on the cable limit the position of the hammer .
3.Finally ,fixed the cable outside of the container .Let the cable connect to control box and avoid using middle joint. If it need joint ,forbid to put the joint in the water .
(Note :The snap ring can not be removed , the cable can penetrate the cone directly . Then use old bare wire to wrap around the correct position of the cable to lock the plastic hammer .)

Payment term:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service After :
1. Warranty: The warranty period is 12 months starting from the shipping date
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality
3. For on-site services not arising from manufacturing quality, we shall charge a certain ser After-sales service vice fee at our discretion based on actual charges incurred such as travel exp
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
